Indoor Unit Disassembly 15
2.4 Fan motor and fan
Note: Remove the front panel, electrical parts and evaporator (refer to 1. Front panel, 2. Electrical parts, and
3. Evaporator). before disassembling fan motor and fan.
Procedure Illustration

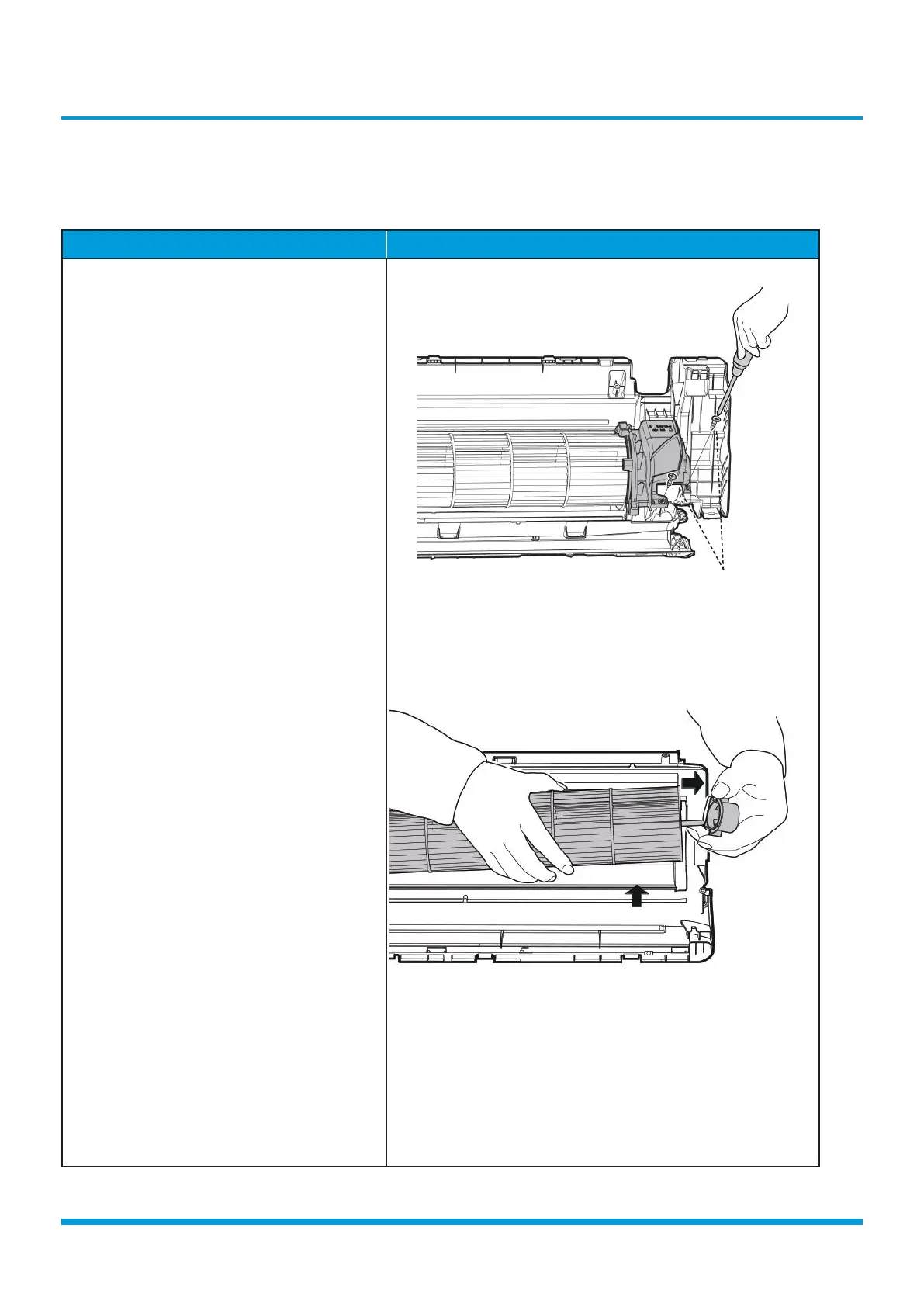

1) Remove the two screws and remove the
fixing board of the fan motor (see CJ_AB_
INV_028).
2) Remove the bearing sleeve (see CJ_AB_
INV_029).
CJ_AB_INV_028
CJ_AB_INV_029
Note: This section is for reference only. Actual unit appearance may vary.
Screws
To Next Page
