Indoor Unit Disassembly 4
Procedure Illustration

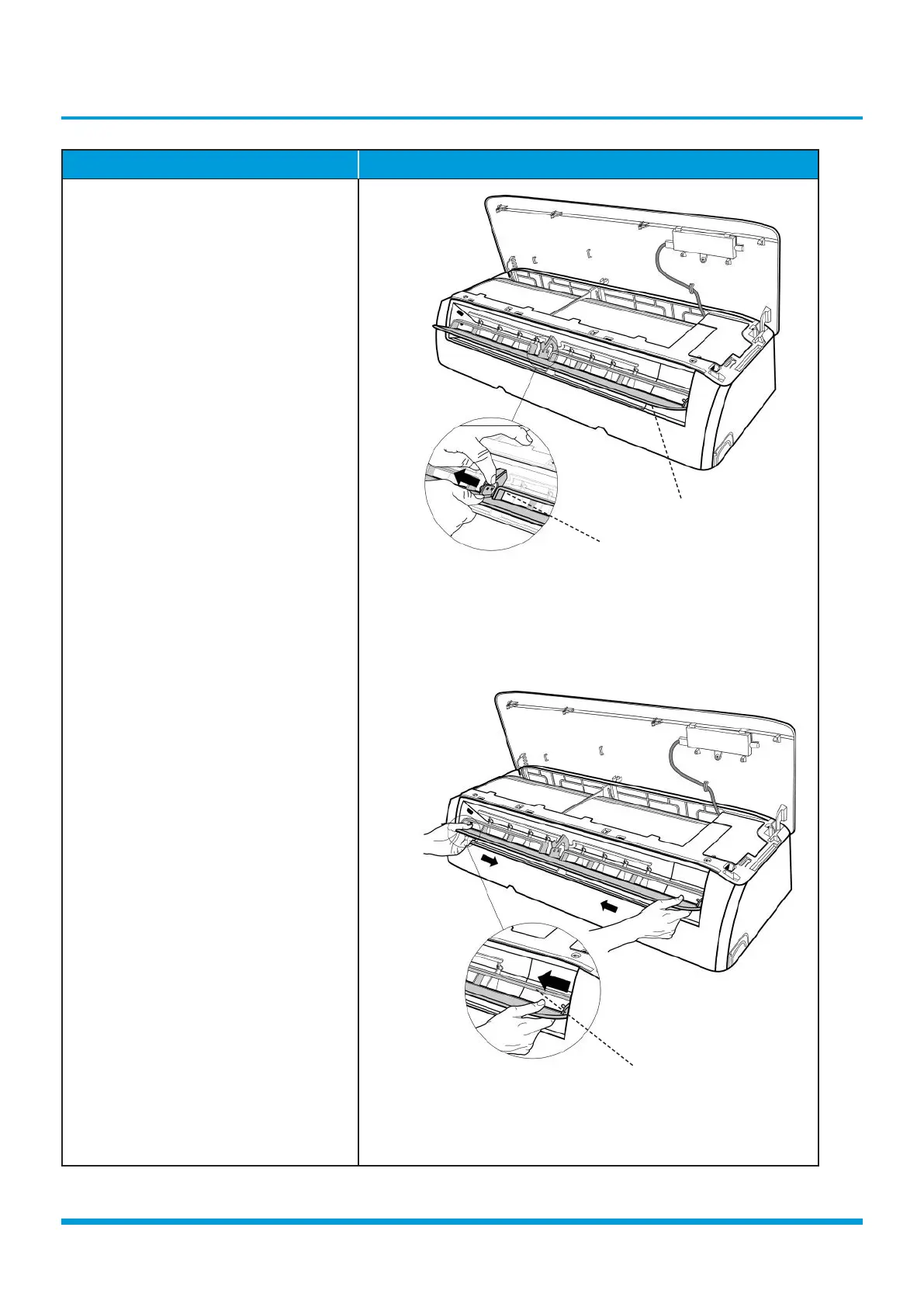

3) Open the horizontal louver and push
the hook towards left to open it (see
CJ_AB_INV_003).
4) Bend the horizontal louver lightly by
both hands to loosen the hooks, then
remove the horizontal louver (see
CJ_AB_INV_004).
CJ_AB_INV_003
CJ_AB_INV_004
Note: This section is for reference only. Actual unit appearance may vary.
Horizontal Louver
Hook
Hook
To Next Page
