Indoor Unit Disassembly 5

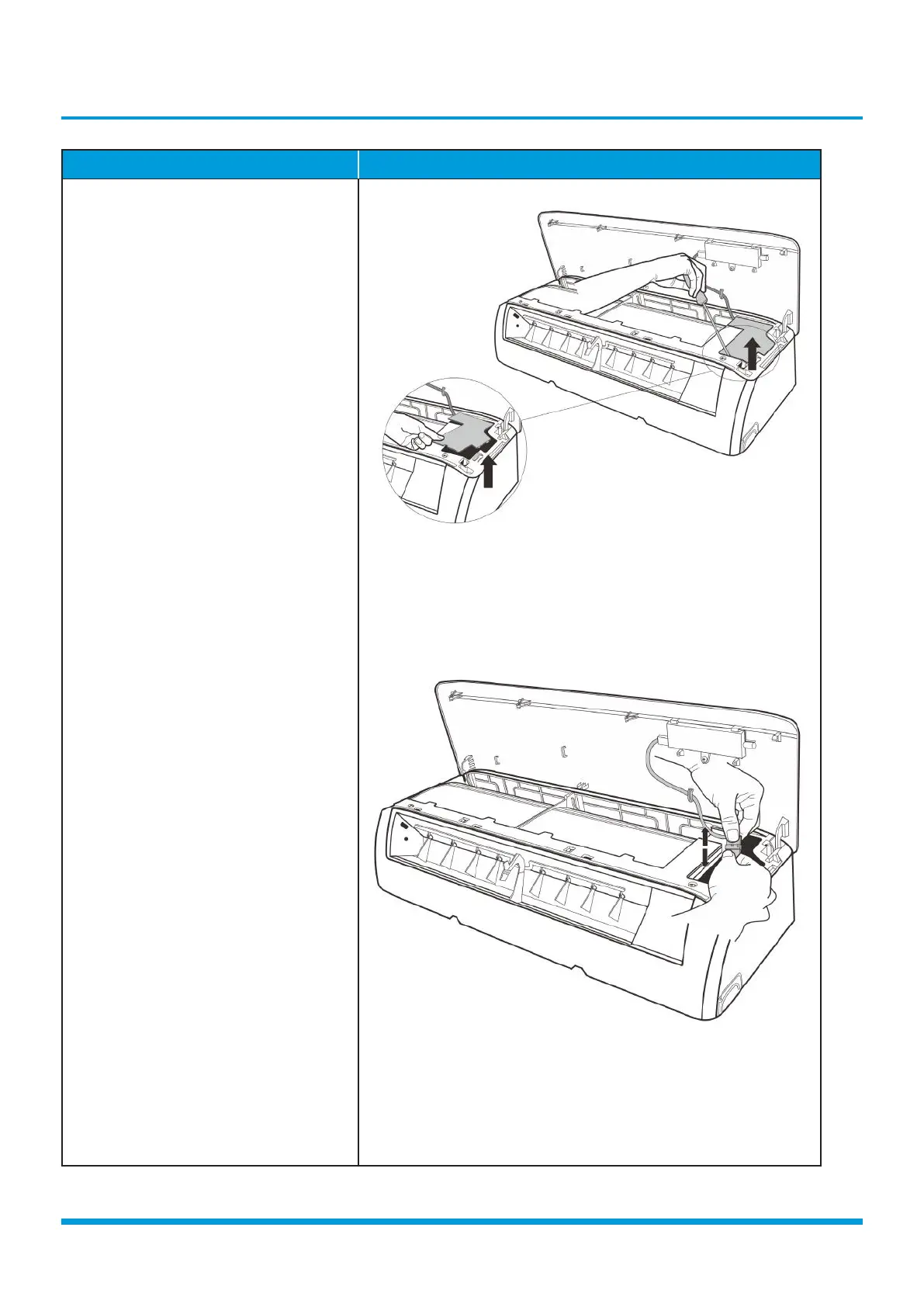

Procedure Illustration
5) Pry the electrical cover by a screw
driver, and rotate it towars left, then
remove it. (see CJ_AB_INV_005).
6) Disconnect the connector for display
board. (see CJ_AB_INV_006) .
CJ_AB_INV_005
CJ_AB_INV_006
Note: This section is for reference only. Actual unit appearance may vary.
