Indoor Unit Disassembly 6

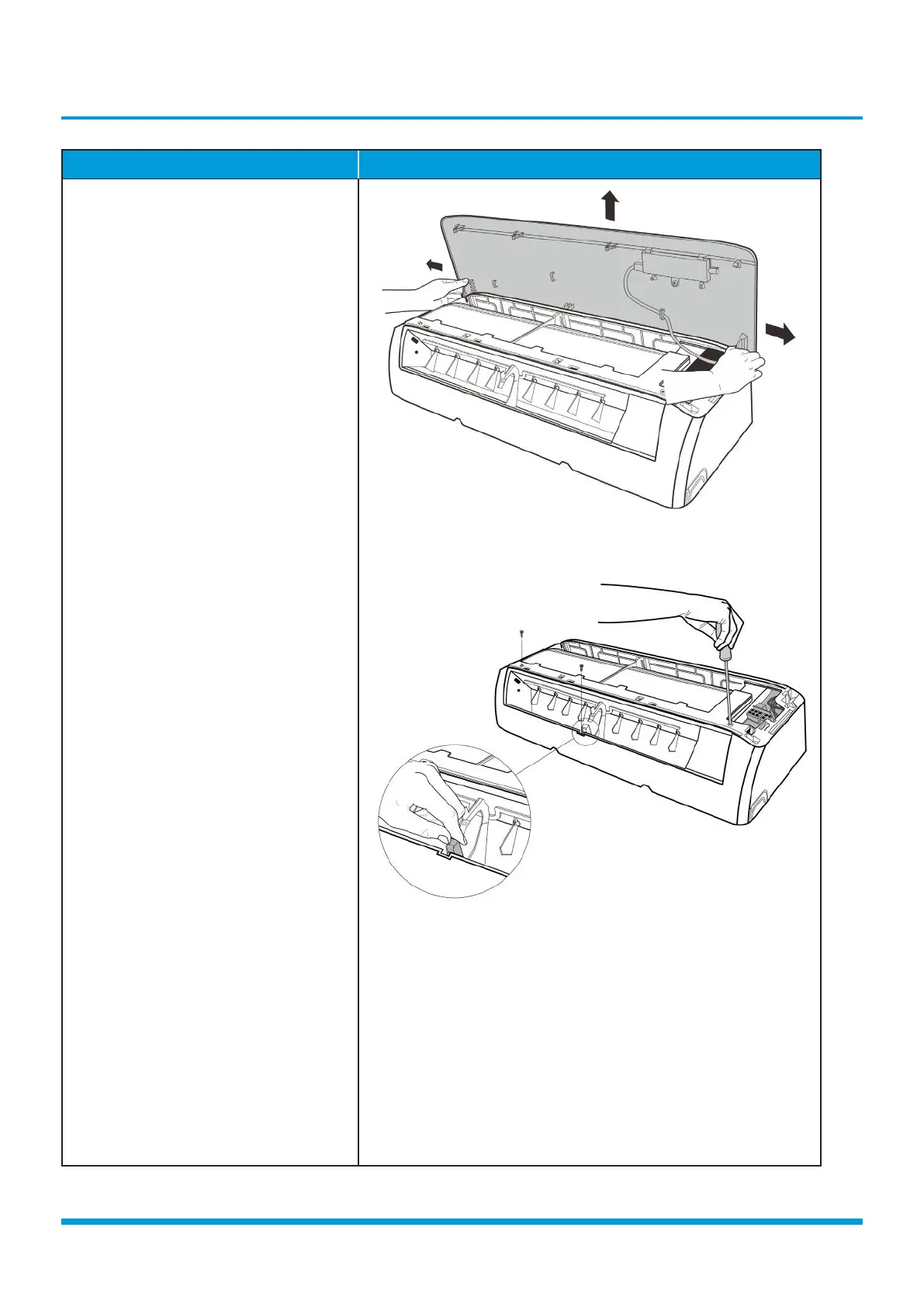

Procedure Illustration
7) Slid the front panel side to side to
release each axis (see CJ_AB_INV_007)
8) Open the screw cap and then remove
the 3 screws (see CJ_AB_INV_008).
CJ_AB_INV_007
CJ_AB_INV_008
Note: This section is for reference only. Actual unit appearance may vary.
