Outdoor Unit Disassembly 31

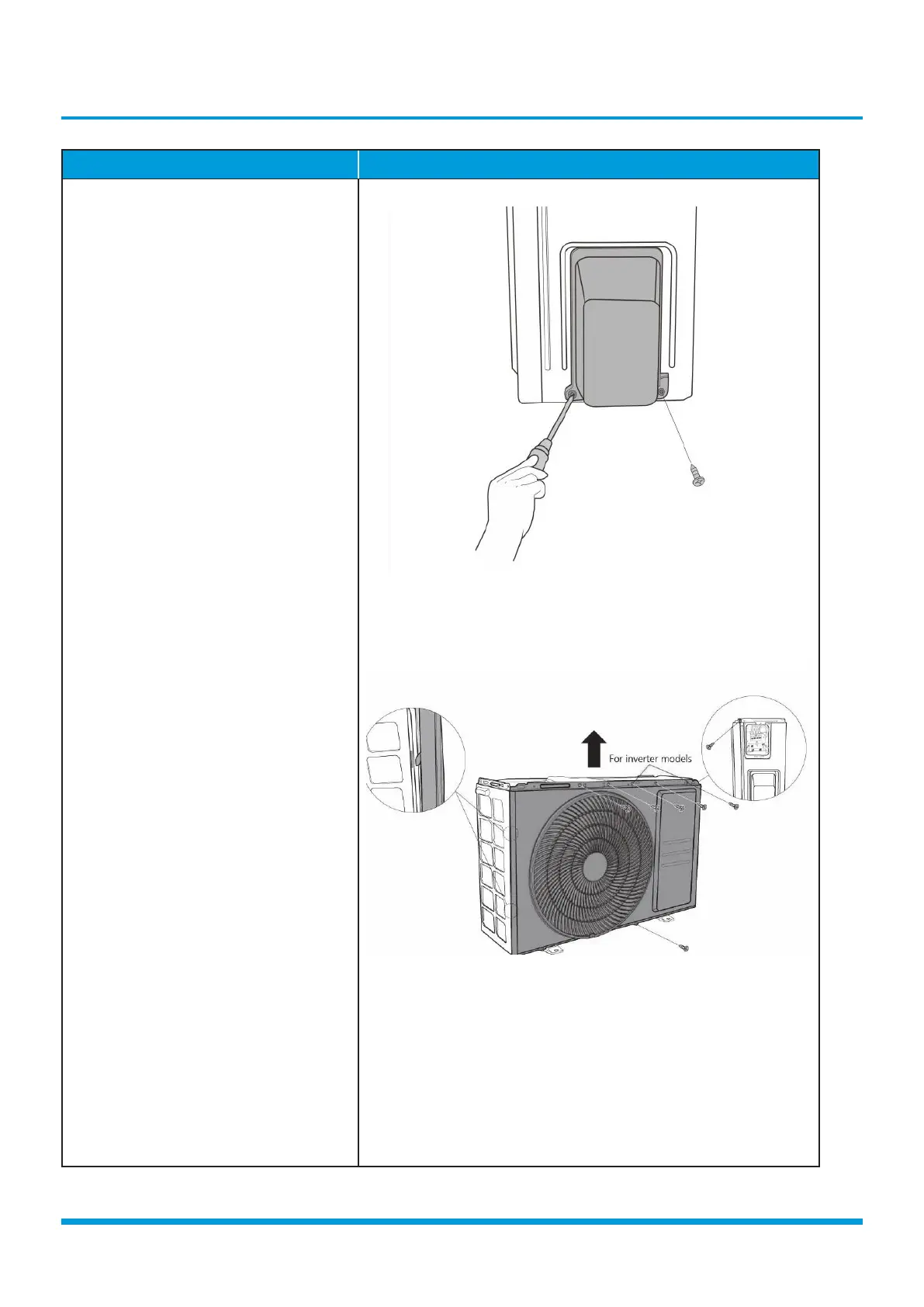

Procedure Illustration
4) Remove the screws of water collecting
cover and then remove the water
collecting cover (2 screw) (see CJ_
X130_003).
5) Remove the screws of the front
panel and then remove the front
panel (6 screws(onoff models) or
8 screws(inverter models) (see CJ_
X130_004).
CJ_X130_003
CJ_X130_004
Note: This section is for reference only. Actual unit appearance may vary.
