Service Manual_2018-V2.0
19

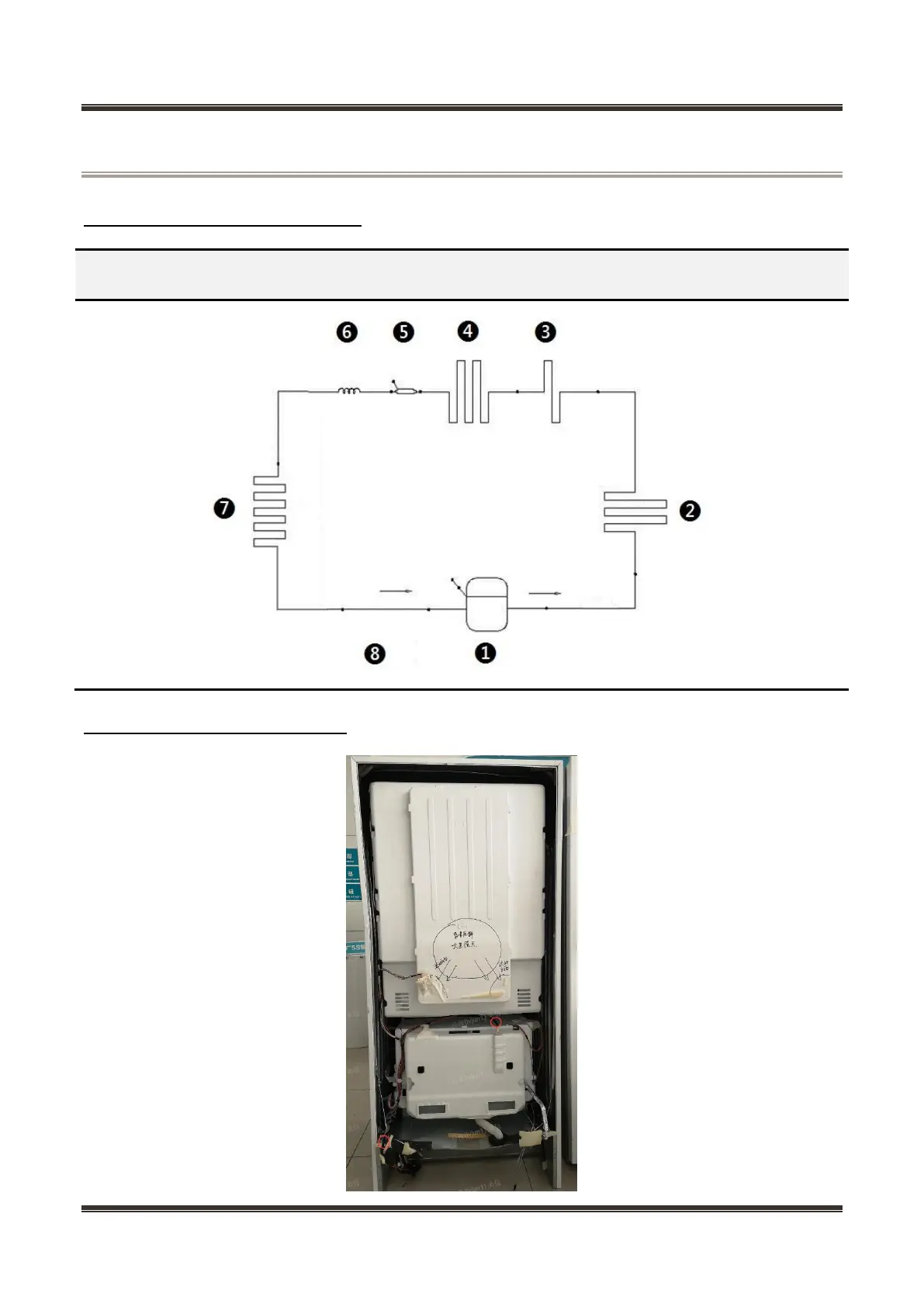

7. Refrigerating piping system and circulating route of cooling air
7.1 Refrigerating piping system
CompressorRight condenserAnti-condensation tubeLeft Condenser→Dry
filterCapillary tubeEvaporatorSuction tubeCompressor
7.2 Special soldering position
