Midea CV10DPWBL0RC0 - Unpacking Ways of Main Parts

9

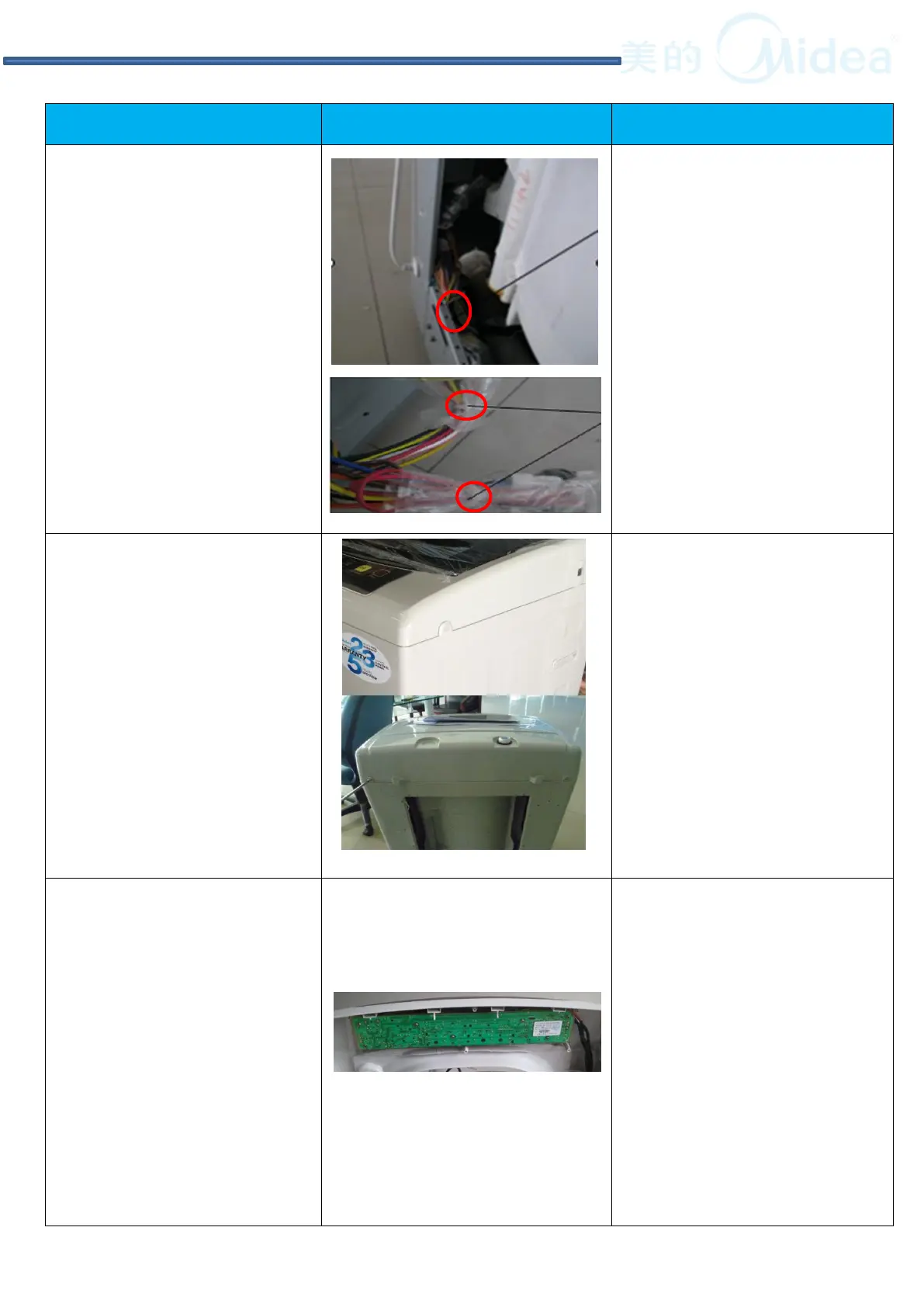

ITEM PICTURE
HOW TO DISASSEMBLE
3 Pull the insulating bag
and then remove the
wire connector.
Use vice
①
Put the Nylon cable
ties, pull the insulating
bag
②
Remove the crimp
terminal by pliers .
4 Top cover
Use cross screwdriver
①Unscrew the screws on
the Top
cover（normally
2 sides 2 back. It varies
according to different
designs
）
②
Take down the top
cover, and put it in the
right place ( avoid to
scratch the top cover)
5 Remove the PCB
Use cross screwdriver
①
Unscrew the controller
board screws, pull out the
controller board
terminals(When you plug
wire and connect wires,
you must insert terminals
to
the roots for not easily
pulling.)
②
Take down the
controller board and the
front control panel
separately
3 UNPACKING WAYS OF MAIN PARTS
