6. Main PCB Description
6.1 Main PCB Ports

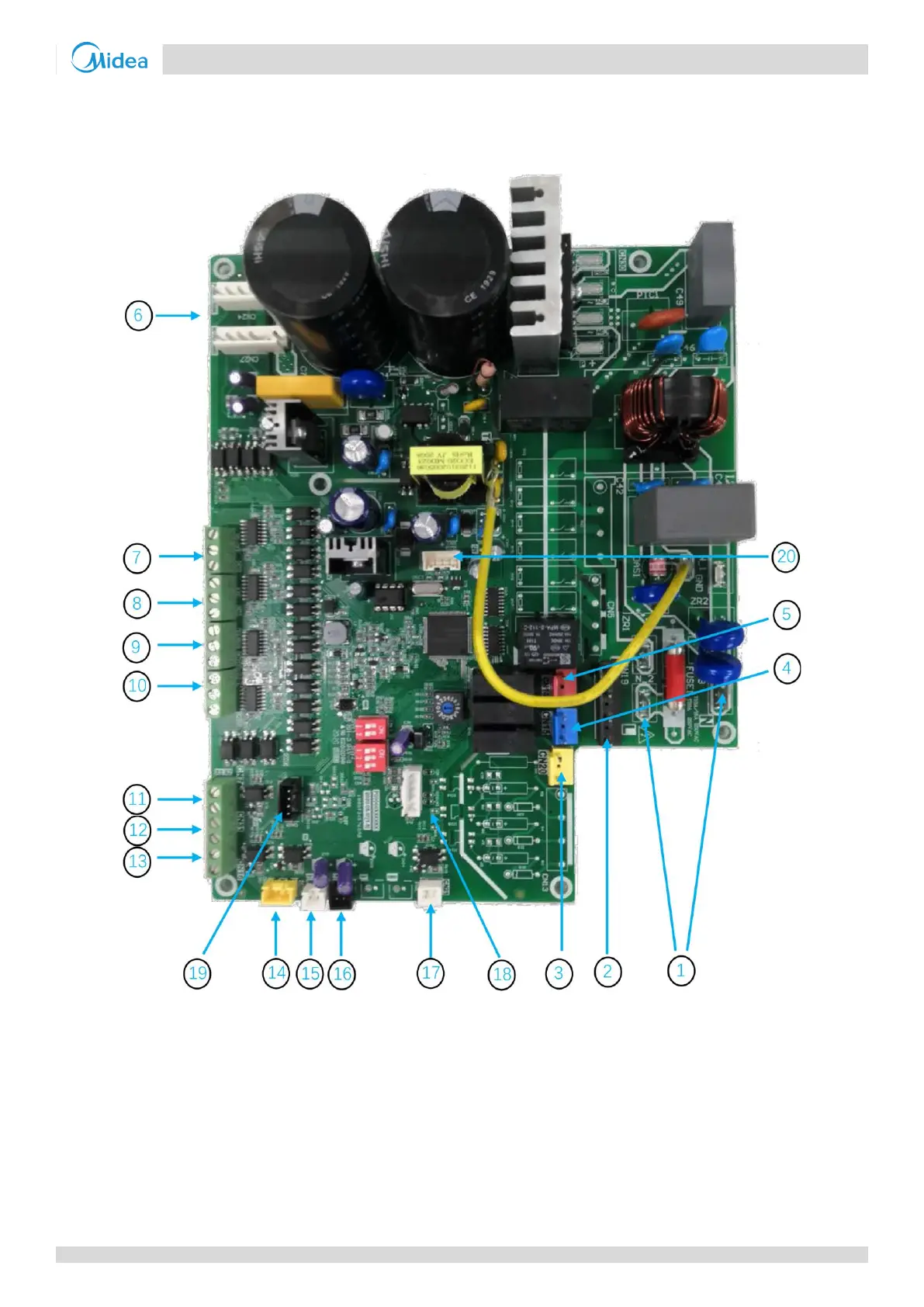

Figure 6.1: HRV-200(300,,400,500,800,1000,1500,2000)(B) Main PCB
Picture shows all the terminals. Some reserved terminal will not be existed when mass production. Reserved terminals are showing in following
table.
