DIAGNOSIS AND SOLUTION (CONT)
Compressor Checking
Measure the resistance value of each winding by using the tester.

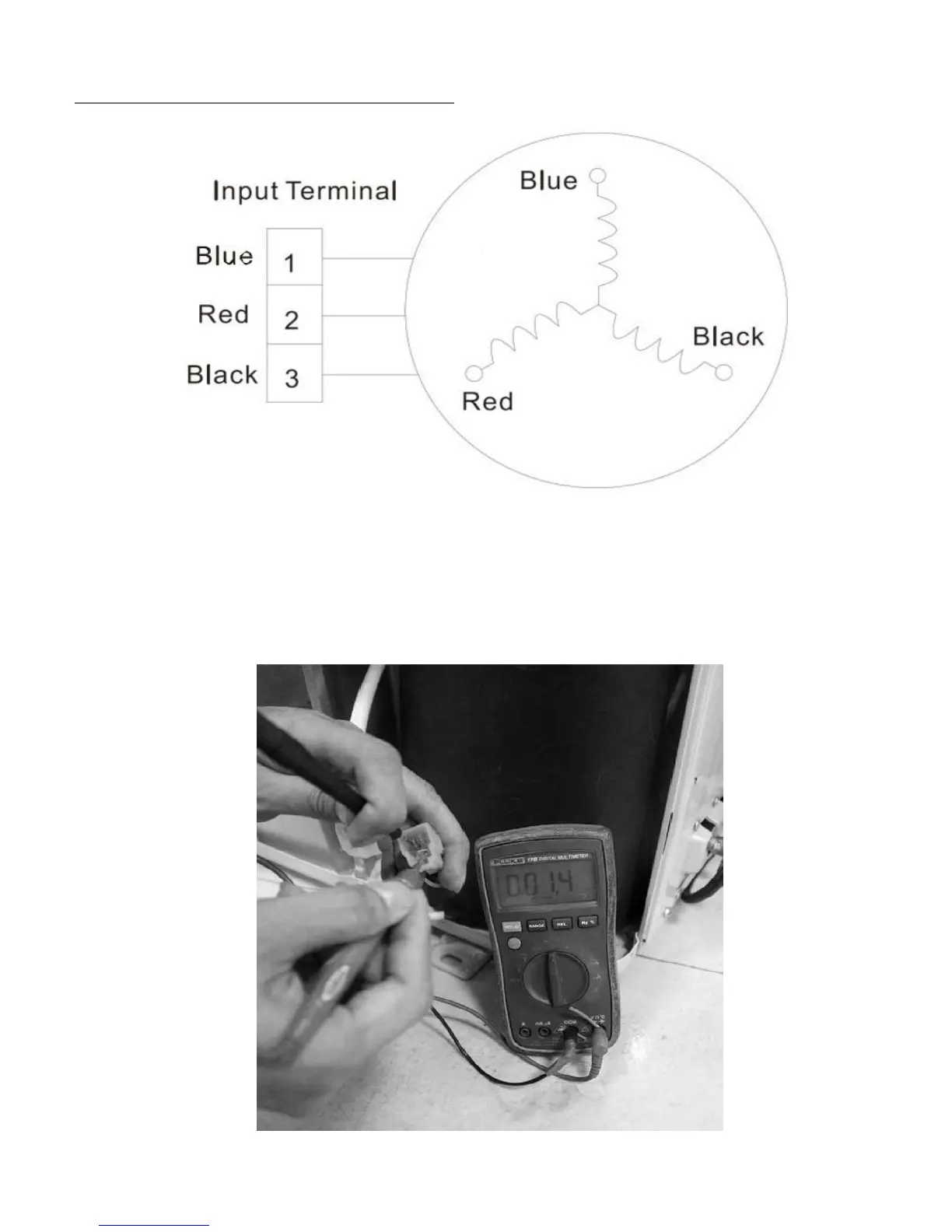

Fig. 44 - Tester
Table 15—Compressor Checking
Position Resistance Value
ASN98D22UFZ ASM135D23UFZ ATF235D22UMT ATF250D22UMT
Blue - Red
1.57Ω 1.75 Ω 0.75 Ω 0.75 ΩBlue - Black
Red - Blue
Fig. 45 - Compressor Checking
