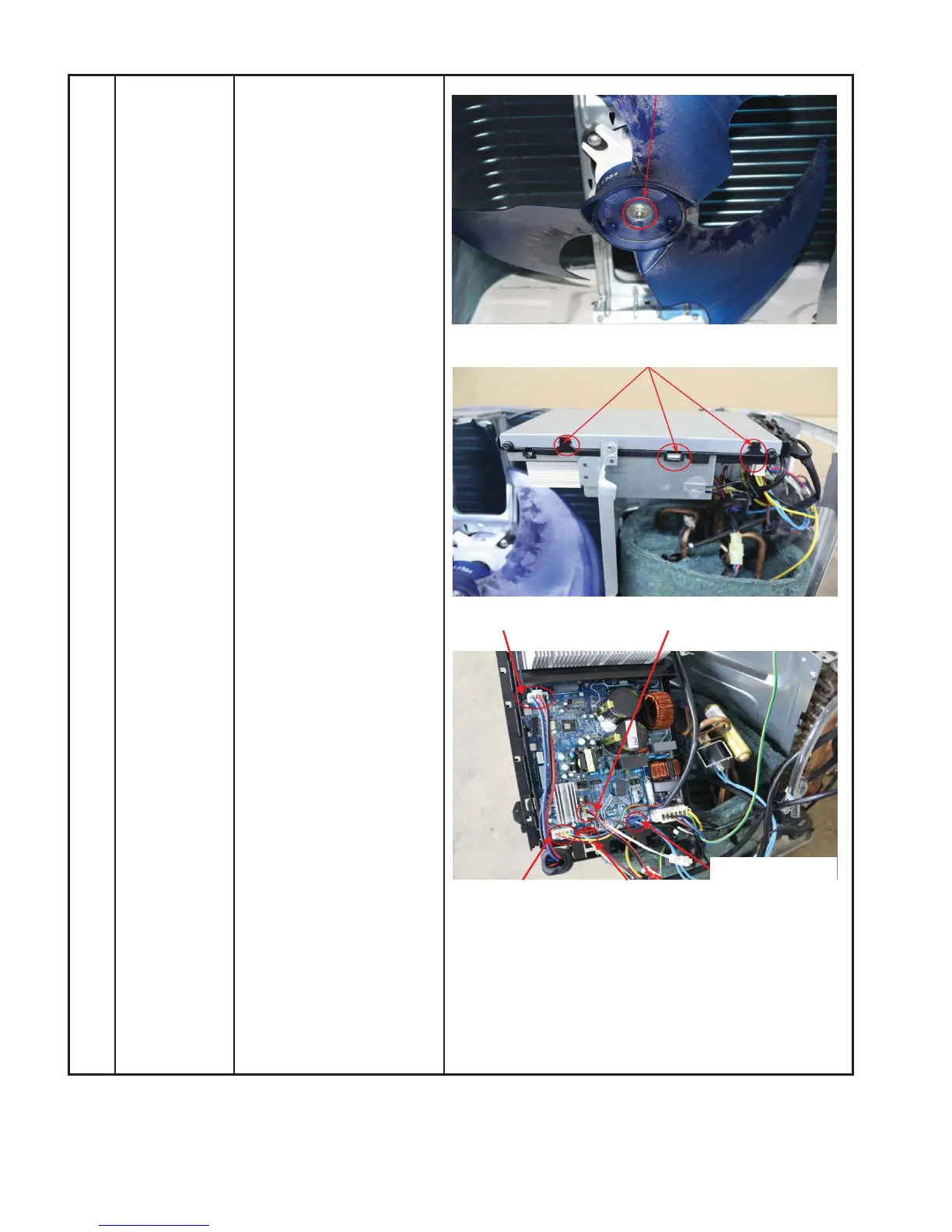

DISASSEMBLY INSTRUCTIONS SIZES 9−12K (208−230V) (CONT)
2 Fan
assembly
How to remove the fan
assembly.
1) After removing the
panel plate using
section 1, remove the
hex nut securing the
fan then remove the
fan.
2) Release the hooks
and open the
electronic control box
cover.
ƻ
1
ƻ
2
Compressor
T3, T4, T5 sensor
Motor
Electronic expansion valve
4 way valve
