TROUBLESHOOTING
Safety
Electricity power is kept in capacitors even if the power supply is shut off.
NOTE: Remember to discharge the electricity power in capacitor.
Electrolytic Capacitors
(HIGH VOLTAGE! CAUTION!)

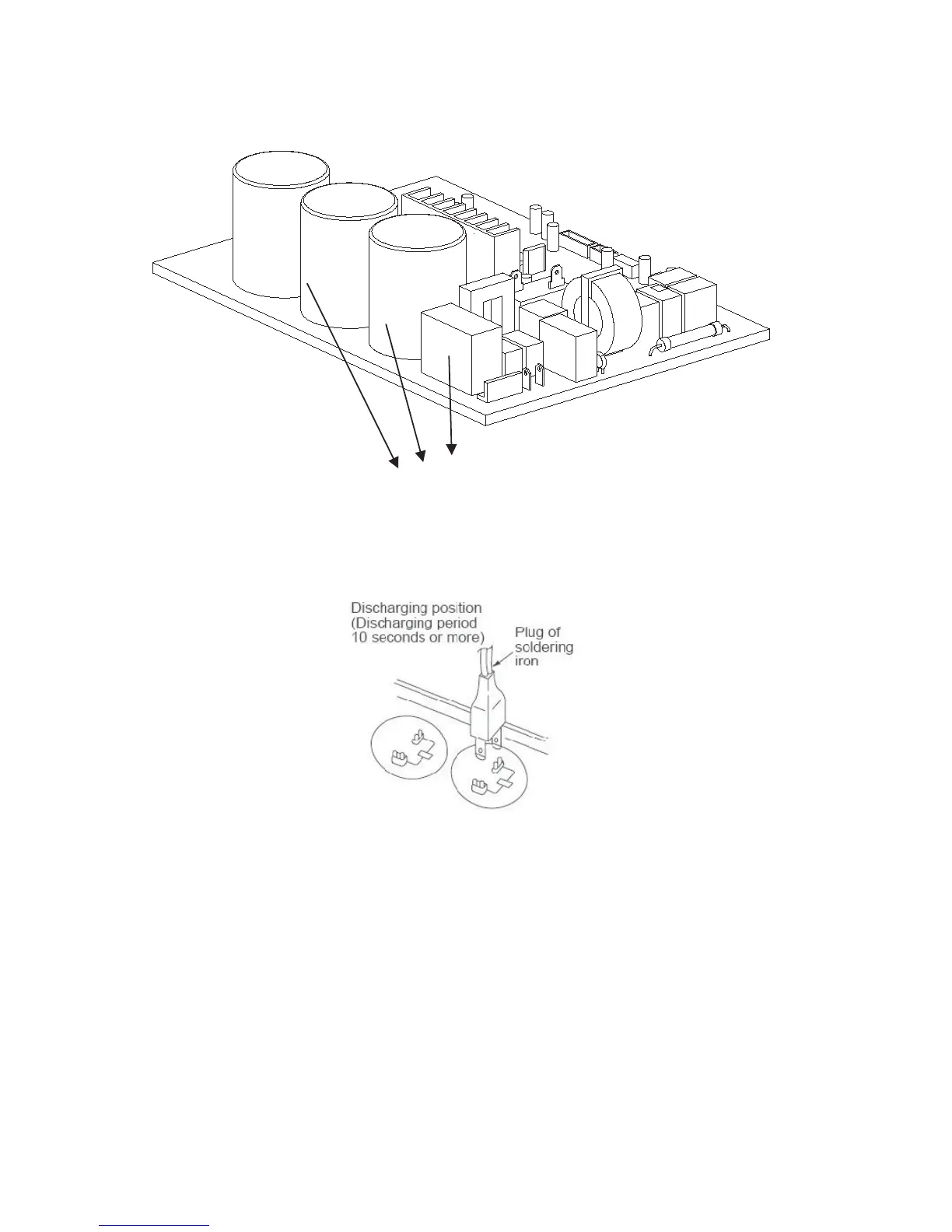

Fig. 25 - Electrolytic Capacitors
For other models, please connect discharge resistance (approximately 100
Ω 40W) or a soldering iron (plug) between the +, − terminals of the
electrolytic capacitor on the contrary side of the outdoor PCB.
Fig. 26 - Discharge Position
NOTE: Fig. 26 is for reference only. The plug on your unit may differ.
