DIAGNOSIS AND SOLUTION (CONT)

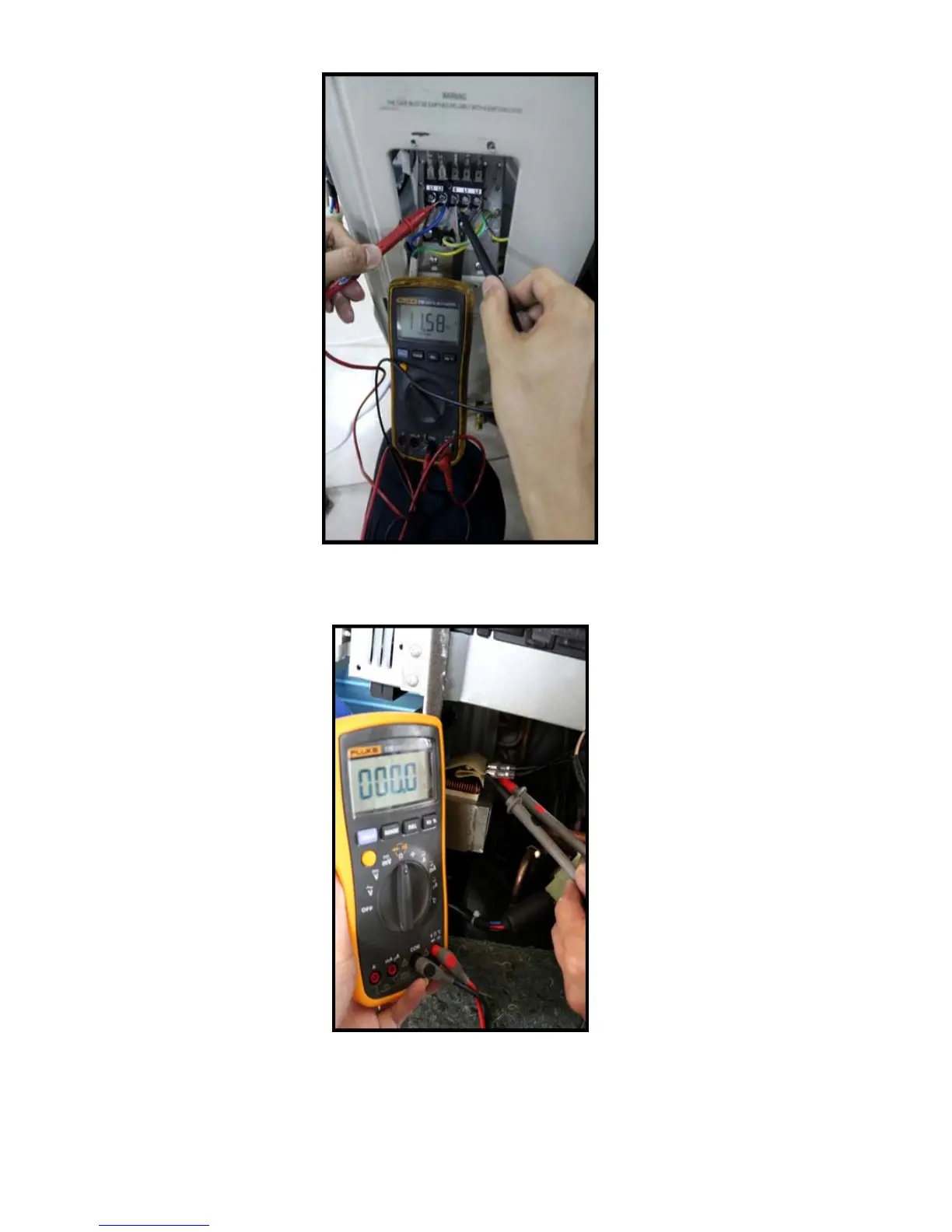

Fig. 32 - Test the DC Voltage
Use a multimeter to test the DC voltage between L2 port and S port of the outdoor unit. The red pin of the multimeter connects with the L2 port while
the black pin is for the S port. When air conditioner is running normal, the voltage moves alternately between −50V to 50V. If the outdoor unit has a
malfunction, the voltage will move alternately with positive value. If the indoor unit has malfunction, the voltage will have a certain value.
Fig. 33 - Test the Reactor Resistance
Use a multimeter to test the resistance of the reactor which does not connect with the capacitor. The normal value should be around zero (0) ohm.
Otherwise, the reactor has a malfunction and needs to be replaced.
