DISASSEMBLY INSTRUCTIONS SIZES 9−12K (208−230V)
No. Part name Procedures Remarks

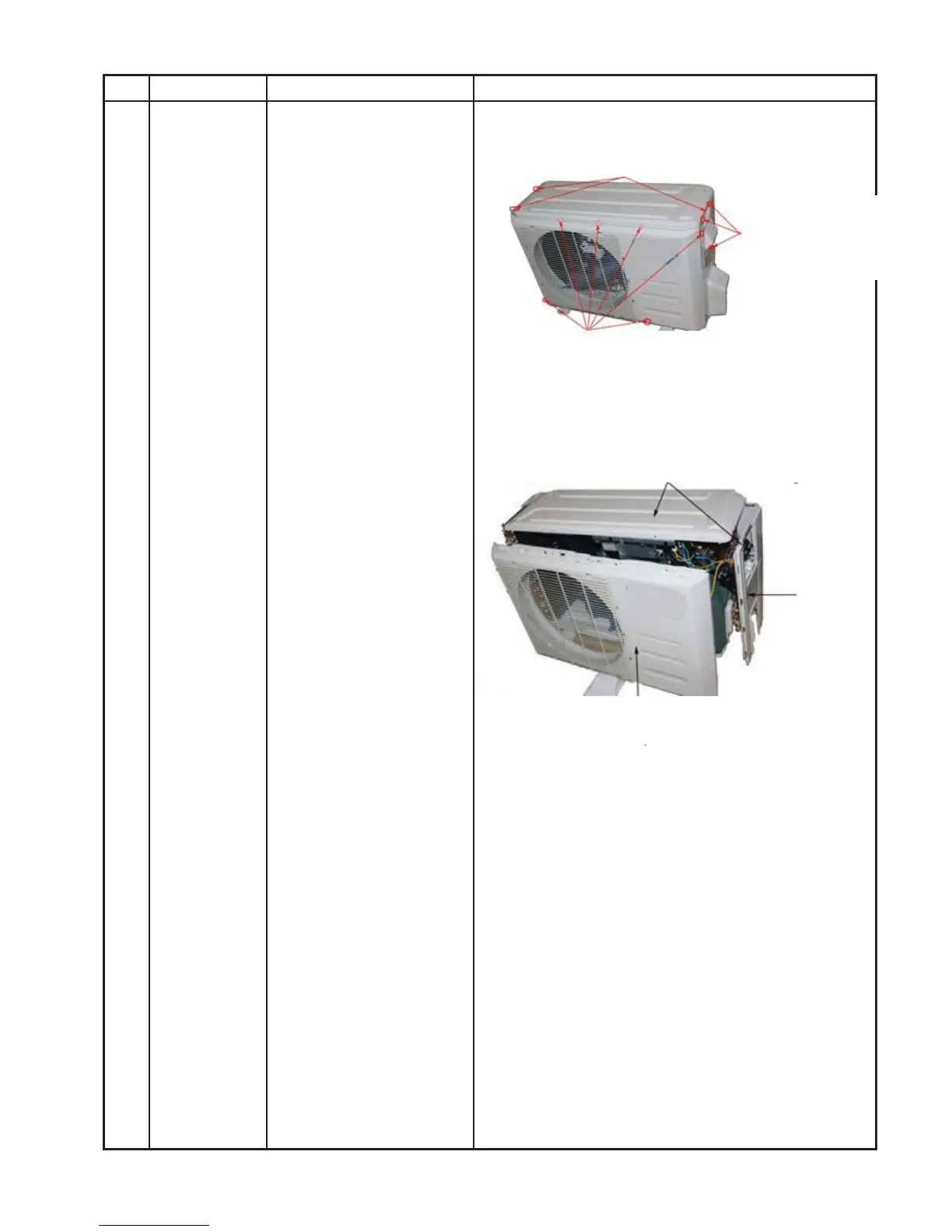

Panel plate How to remove the panel
plate.
1) Stop the air conditioner
and turn “OFF” the
power breaker.
2) Remove the big handle
first, then remove the
top panel (3 screws).
3) Remove the front
panel screws (6).
4) Remove the right side
panel screws (8).
ƻ
2
ƻ
4
ƻ
3
Top panel screws (3 screws, 1 screw is under the big handle)
Big
Handler screws (3)
Front panel screws (6)
1
To Next Page
