Page 17

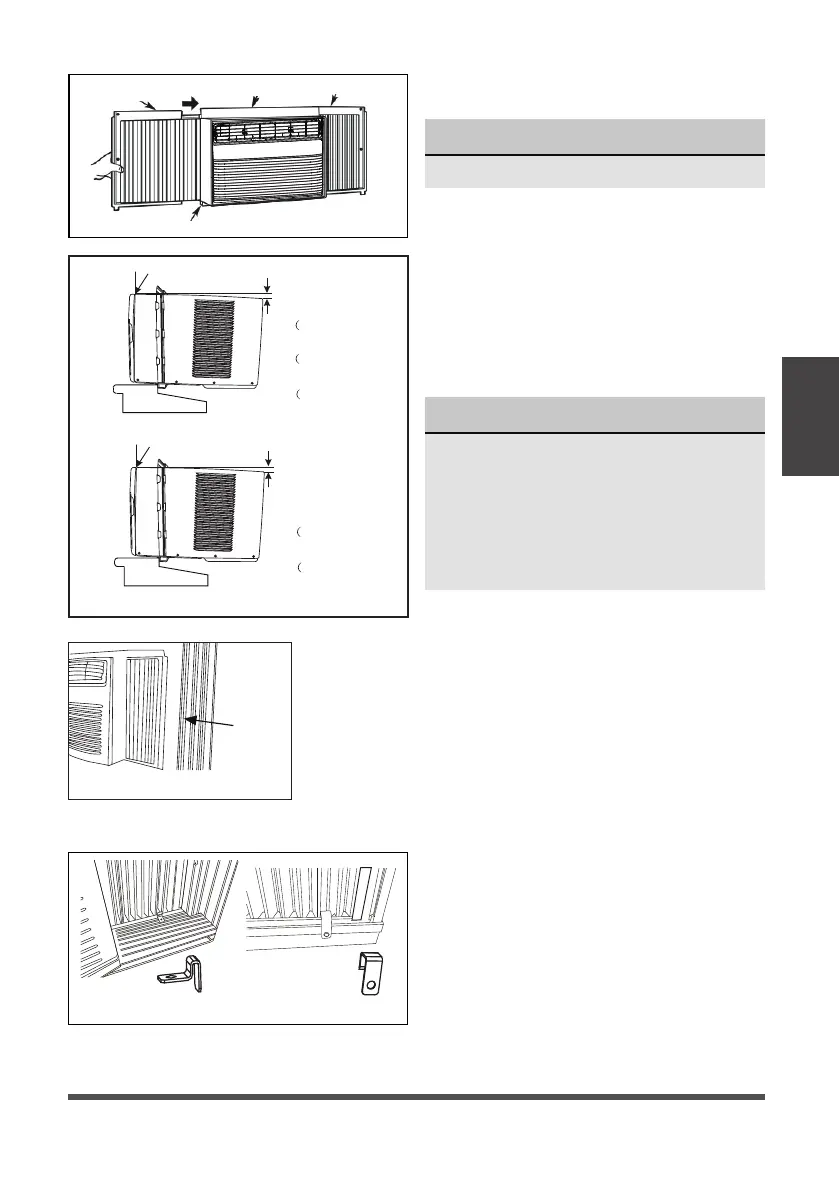

2. While keeping a firm grip on the air
conditioner, carefully place the unit into
the window opening so the bottom of
the air conditioner frame is against the
window sill (Fig. 5). Carefully close the
window behind the top rail of the unit.
NOTE
If storm window blocks AC, see Fig. 10.
NOTE
Check that air conditioner is tilted
back per dimension H (Fig. 5) (tilted
about 3° to 4° downward to the
outside). After proper installation,
condensate should not drain from the
overflow drain hole during normal use.
Adjust the slope if otherwise.
3. Extend the side panels out against the window frame
(Fig. 6).
window
frame
Fig. 5
Fig. 6
Installation
Instructions
Wooden Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 6K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
for 10K to 12K)
8”
H
H:About 5/8” to 3/4”
for 5K)
Vinyl-Clad Windows
INSIDE
OUTSIDE
H:About 3/4” to 1”
for 5K to 8K)
Measure from the cabinet edge
3
H:About 1” to 1
/
for 10K to 12K)
8”
H
D. Slide the panel all the way in and
repeat on the other side.
Top Rail
Bottom Rail
Top left
Top right
Fig. 4
Fig. 5
4. INSTALL SUPPORT BRACKET
A. Place the frame lock between the
frame extensions and the window
sill as shown (Fig. 7A for Wooden
windows), (Fig. 7B for Vinyl-Clad
windows).
Drive 3/4” (19 mm) or 1/2” (12.7 mm)
locking screws through the frame lock
and into the sill.
NOTE: To prevent window sill from
splitting, drill 1/8” (3 mm) pilot holes
before driving screws.
Fig. 7A Fig. 7B
To Next Page
