Page 18
If AC is Blocked by Storm Window
Add wood as shown in Fig. 11, or remove
storm window before air conditioner is
installed.
If storm window frame must remain,
be sure the drain holes or slots are not
caulked or painted shut. Accumulated
rain water or condensation must be
allowed to drain out.
Fig. 11
SASH
1-1/2"min
(38 mm)
Board thickness
as required, for
proper pitch to rear,
along entire
sill. Fasten with nails
or screws.
Storm window
frame or other
obstruction.
Removing AC From Window
• Turn AC off, and disconnect power cord.
• Remove sash seal from between
windows, and unscrew safety lock.
• Remove screws installed through frame
and frame lock.

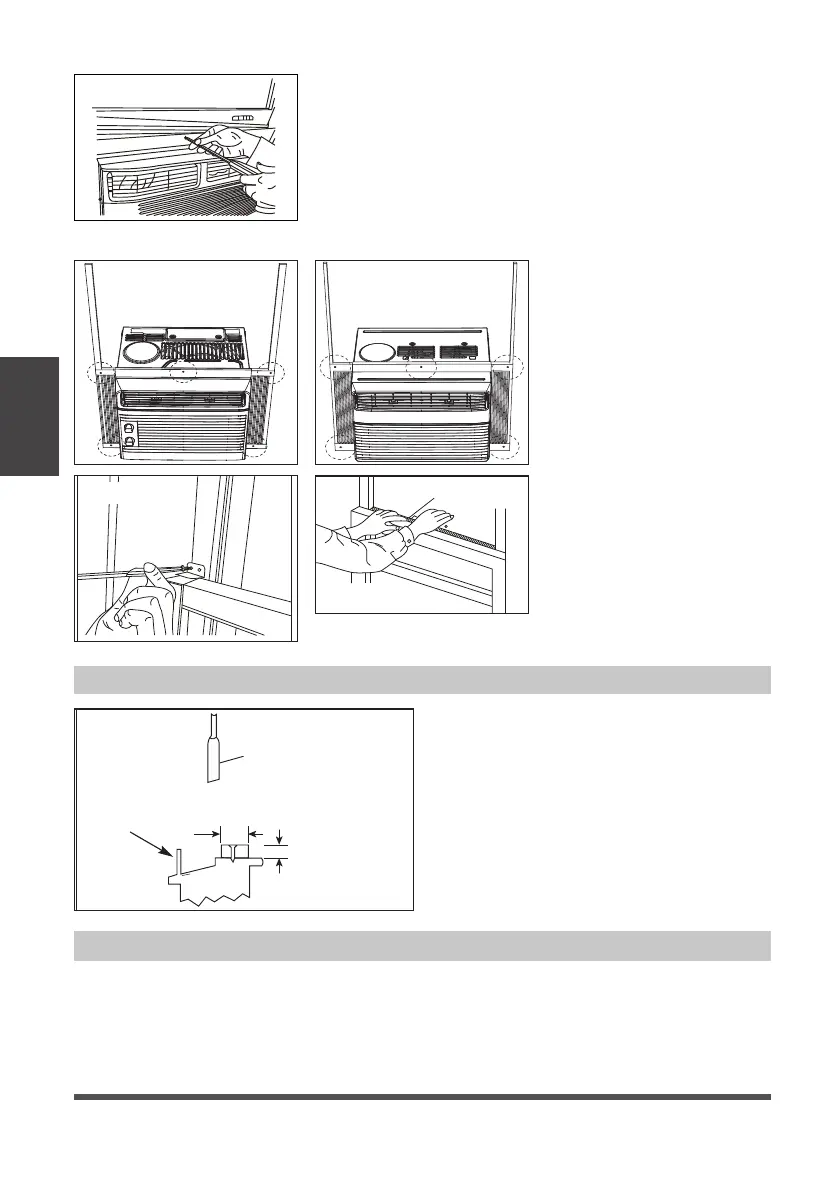

Installation
Instructions
B2: For Vinyl-Clad windows:
Drive 1/2” (12.7 mm)
locking screws through
the frame lock and into the
window sash (Fig. 8B).
NOTE: Before driving
the screws, use a drill to
drill 5 holes through the
holes in the frame lock
and frame extensions
into the windows sash
as shown (Fig. 8B/8C).
C. To secure lower sash in
place, attach right angle
sash lock with 3/4” (19
mm) or 1/2” (12.7 mm)
screw as shown (Fig. 9).
D. Cut Window sash seal
foam and insert it in the
space between the upper
and lower sashes (Fig. 10).
B1: For wooden windows:
Drive 1/2” (12.7 mm) locking screws through the
frame lock and into the sill (Fig. 8A).
NOTE: To prevent window sill from splitting, drill 1/8”
(3mm) pilot holes before driving screws. Drive 1/2”
(12.7mm) locking screws through frame holes into
window sash (Fig. 8B/8C).
Fig. 8A
Fig. 9
FOAM SEAL
Fig. 10
MAW05M1YWT
Fig. 8B
MAW06 to MAW12
Fig. 8C
• Close (slide) side panels into frame.
• Keeping a firm grip on air conditioner,
raise sash and carefully remove.
• Be careful not to spill any standing
water while lifting unit form window.
Store parts WITH air conditioner.
