P.43

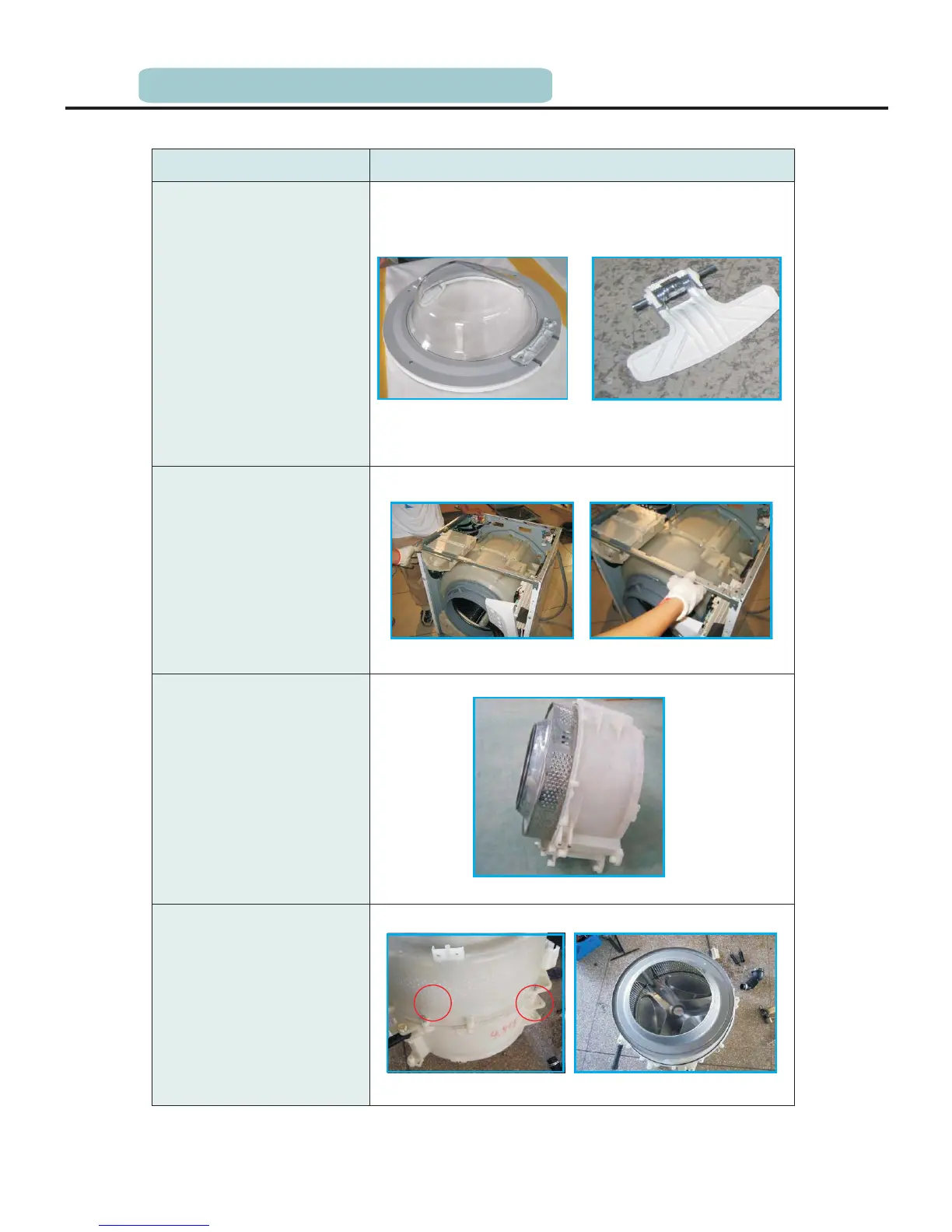

Operation step Picture
21 Undo the panel support
① Undo the top cover
(methods as followed).
② Undo the control panel.
③ Remove two screws
fixing the panel support,
and then remove it.
22 Undo the drum tub
assembly
① Remove the motor in
24(methods as followed).
② Pull out the heater.
③ Remove the belt.
④ Remove the screws
fixing the pulley, and then
take out the pulley.
5.UNPACKING WAYS OF MAIN PARTS
20 Undo the door glass
① Open the door, remove
two screws fixing the
hinge and front plate, and
then remove the door.
② Remove six screws on
the inner door.
③ Remove the outer door
and the inner door with
special tool.
④ Take out the door glass.
To Next Page
