Midea
AC Fan Coil Unit
39
6.

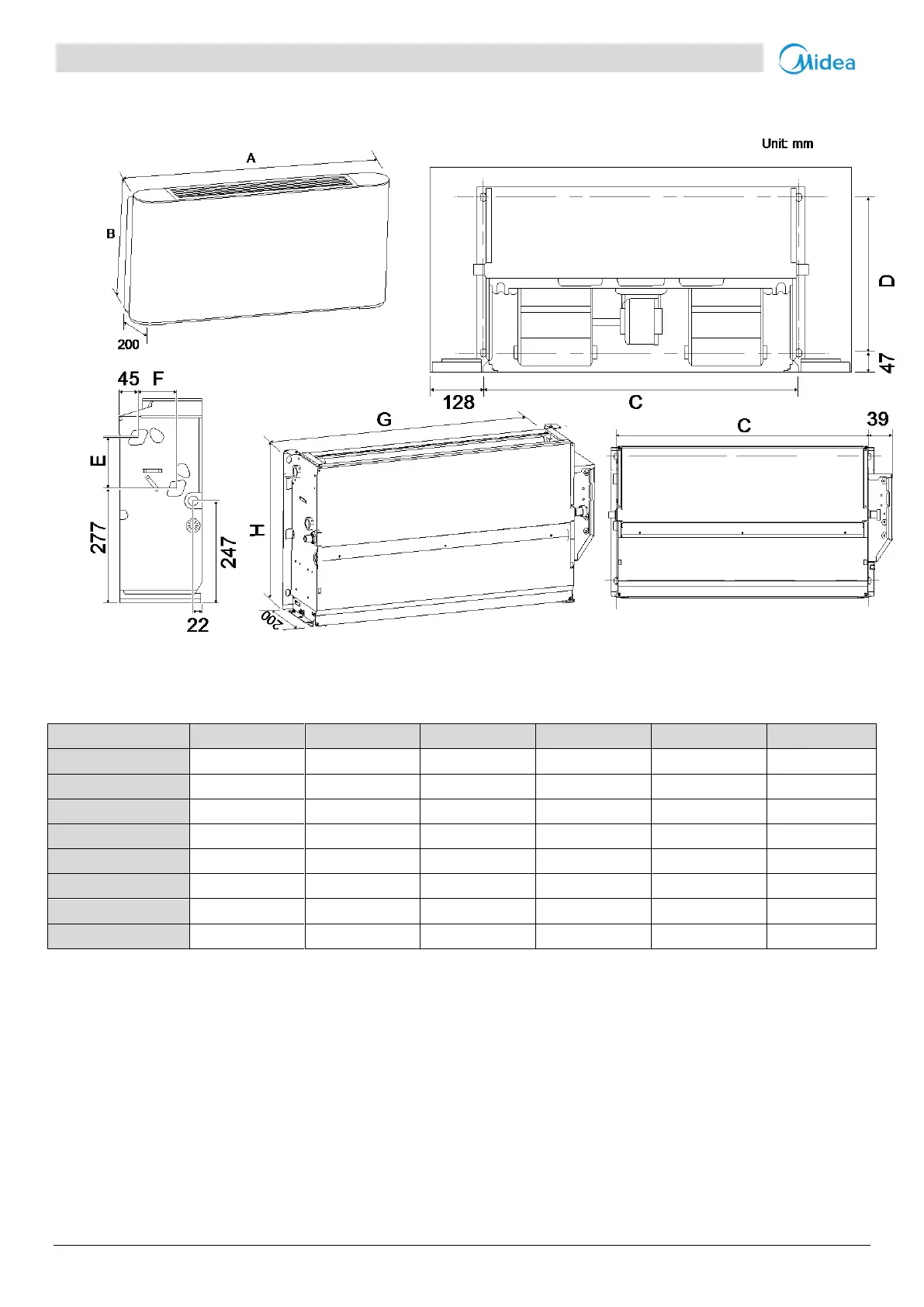

Dimensions
Dimensions
(unit: mm)
Model(
MKH2/3-
150
250
350
500
700
800
A
790
1020
1240
1240
1360
1360
B
495
495
495
495
495
591
C
534
764
984
984
1
104
1
104
D
375
375
375
375
375
391
E
123
123
123
123
123
219
F
93
93
93
93
93
102
G
628
858
1078
1078
1
198
1
198
H
455
455
455
455
455
551
39
41
Table of Contents
Table of Contents
2
Floor Installation
3
Features
3
External Appearance
3
Products Lineup
3
Nomenclature
4
Specifications
5
Capacity Table
8
Cooling Capacity Table
8
Heating Capacity Table
28
Dimensions
40
Sound Power Level
41
Sound Levels
41
Sound Pressure Level
42
Cased Type
43
Uncased Type
43
Service Spaces
43
Wiring Diagrams
44
Installation
45
Transport and Handling
45
Storage Conditions
45
Service Spaces
45
Remove the Casing
46
Units Installation
46
Wooden Structure
48
Original Concrete Slab Structure
48
Steel Framework
48
Newly Set Concrete Slab Structure
48
Diagram of Ceiling Exposed
49
Liquid Pipe Connections
49
Diagram of Ceiling Concealed
49
Electrical Connections
51
Preliminary Checks before Startup
52
Startup Instructions
52
Wiring
52
Scheduled Maintenance
53
Once a Month
53
Every Six Months
53
Maintenance
53
Removal of Filter, Upper Volute and Motor Screws
54
Removal of Casing
55
Removing the Electric Control Box
55
Removal of Drain Pan and Heat Exchanger
55
Troubleshooting
56
Non-Unit Related Faults
57
4
Based on 1 rating
