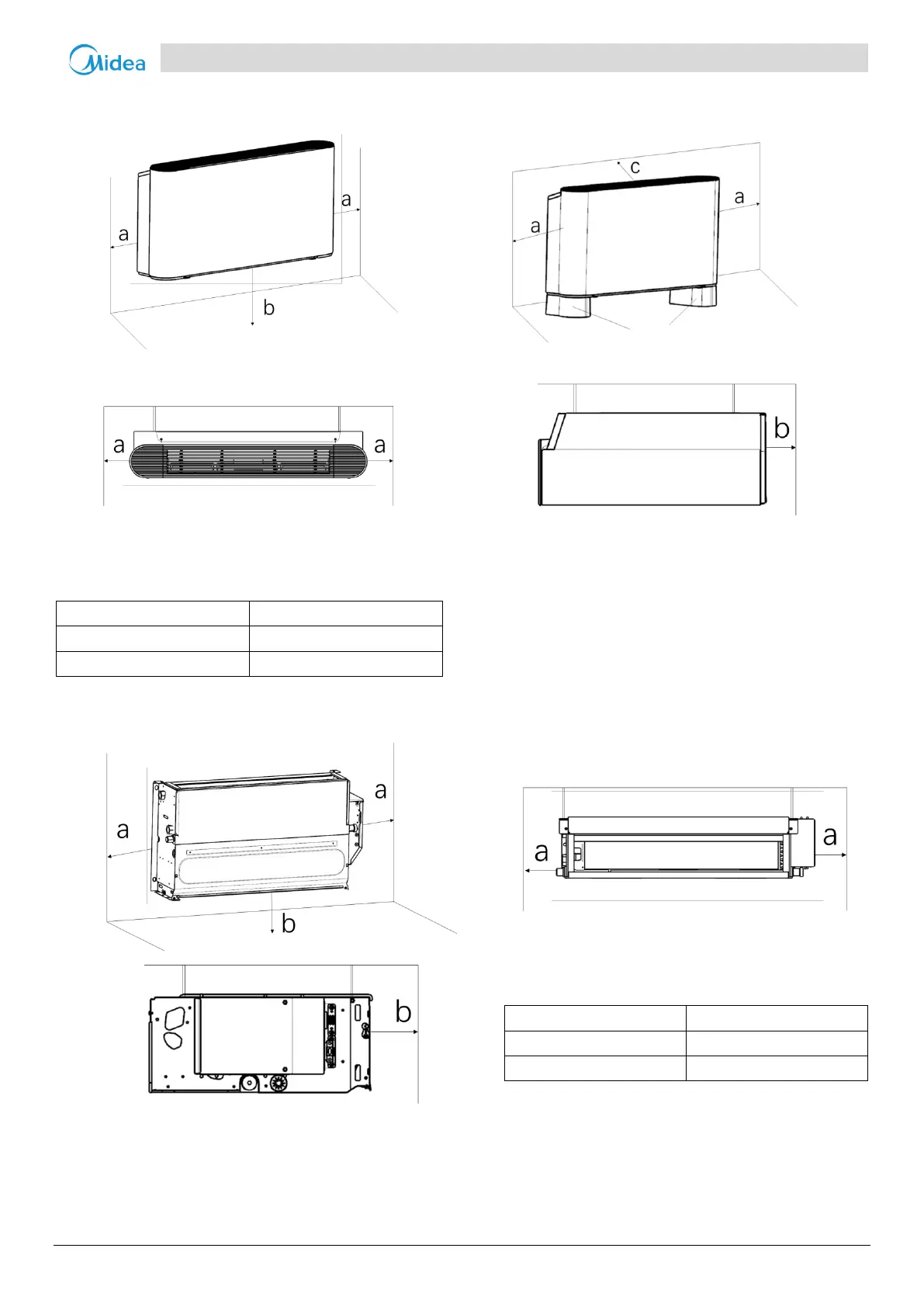

8. Service Spaces
Cased type
Footing
a (mm)
≥150
b (mm)
≥90
c (mm)
≥50
Uncased type
a (mm)
≥150
b (mm)
≥90
c (mm)
≥50
