charge nitrogen, or oxide will chock the circulation system.

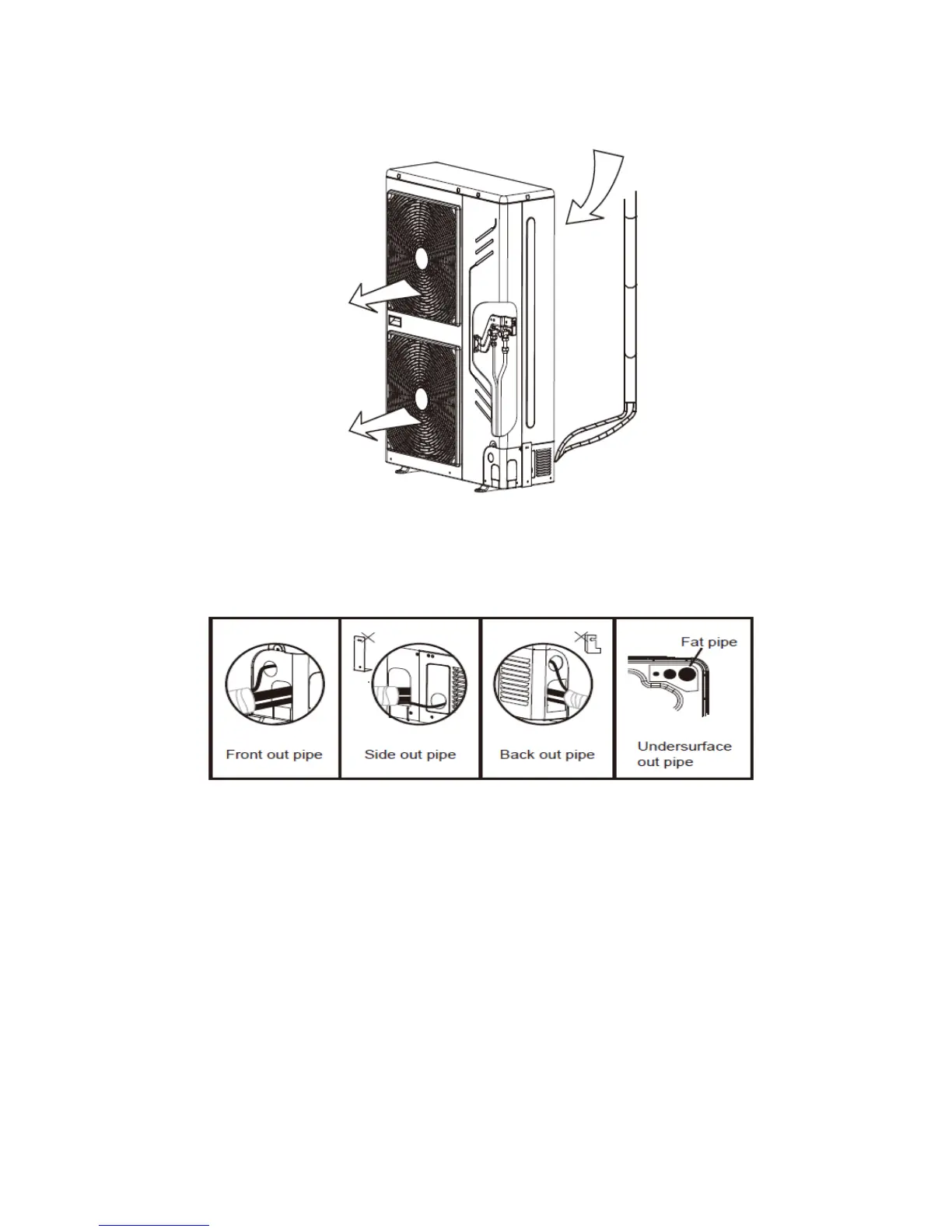

The indoor and outdoor connecting pipe interface and power line outlet. Can select various piping
and wiring patterns such as out from the front, the back, the side and undersurface etc.(The follow
display the locations of several piping and wiring knock-off interfaces）
Caution:
● Side out pipe: please remove the L-shape metal plate, otherwise can not wiring.
● Back out pipe:
Undersurface outlet pipe: the knock out should from inside to outside, and then piping and wiring
through this. Pay attention to the piping, the fat connecting pipe should out from the largest hole,
otherwise the pipes will be rubbed. Please do the moth proofing for the knocked out hole, to
avoid the pest processing into and destroy the components.
● Please wipe off the piping support rubber blanket beside the inner outlet pipe cover of the
machine while back side getting out pipes.
1.9 Airtight Test
