Midea LRSJF-V120

2. Hydraulic modular unit installation

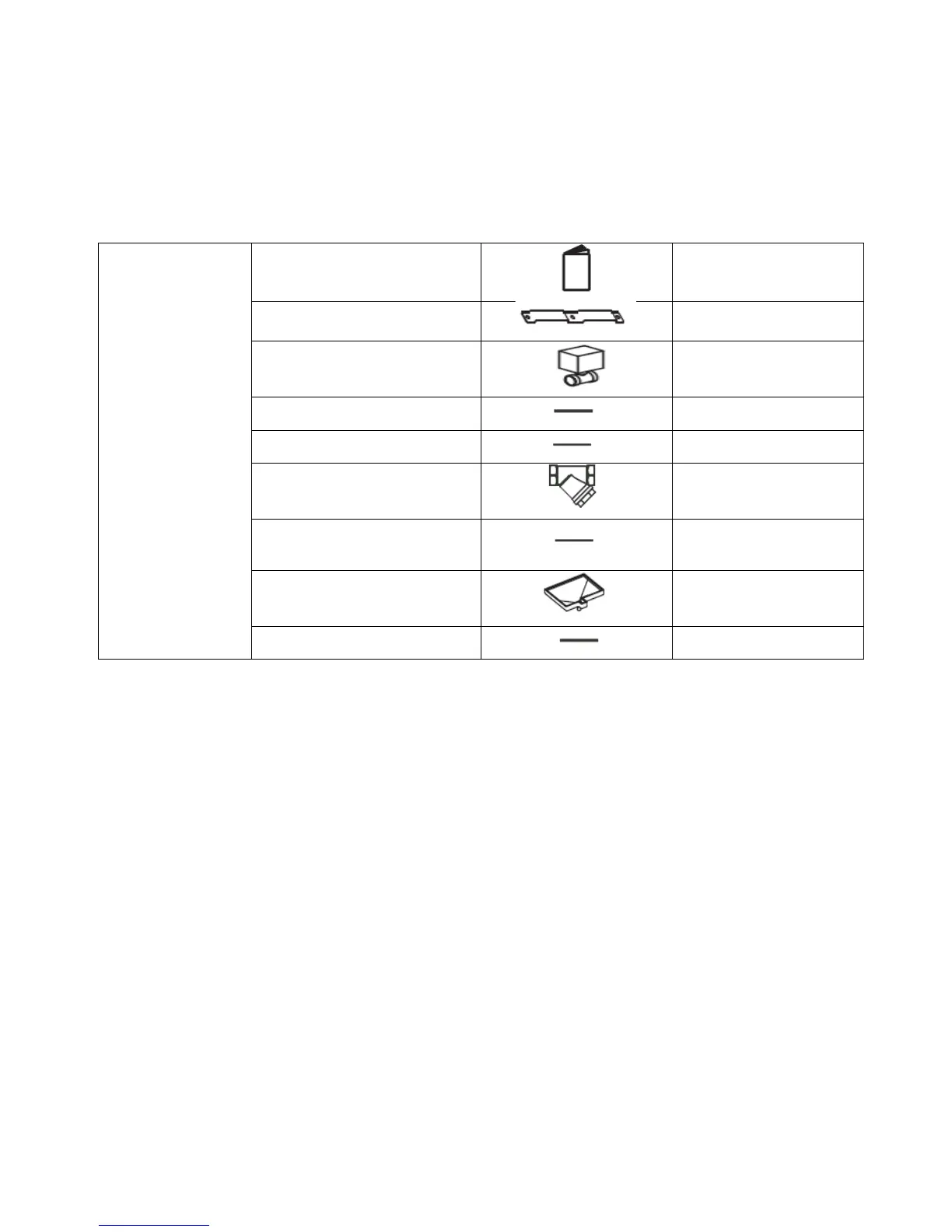

2.1 Accessory
Please check whether the following fittings are of full scopes. If there are some spare fittings ,
please restore them carefully.
Hydraulic
Indoor
Unit
Accessories
Owner's & Installation
Manual
1
Mounting bracket
1
Two-way valve
3
M4 screws
2
Water tank temperature sensor
1
Y-sharp filter
1
Floor heating inlet
temperature sensor, T1B
1
Drain pan kit
1
M8 expansion screws
5
2.2 Installation place
Selecting an installation location
 The indoor unit is to be wall mounted in an indoor location that meets the following
requirements:
 The installation location is frost-free.
 The space around the unit is adequate for serving.
 The space around the unit allows for sufficient air circulation.
 There is a provision for condensate drain and pressure relief valve blow-off.
Caution:
When the unit running in the cooling mode, Condensate may drop from the water inlet and
water outlet pipes to your furniture and other devices. Please make sure the dropping
condensate will not result in damage of your furniture and other devices.
 The installation surface is a flat and vertical non-combustible wall, capable of supporting the
operation weight of the unit.
 There is no danger of fire due to leakage of inflammable gas.
 All piping lengths and distance have been taken into consideration.
