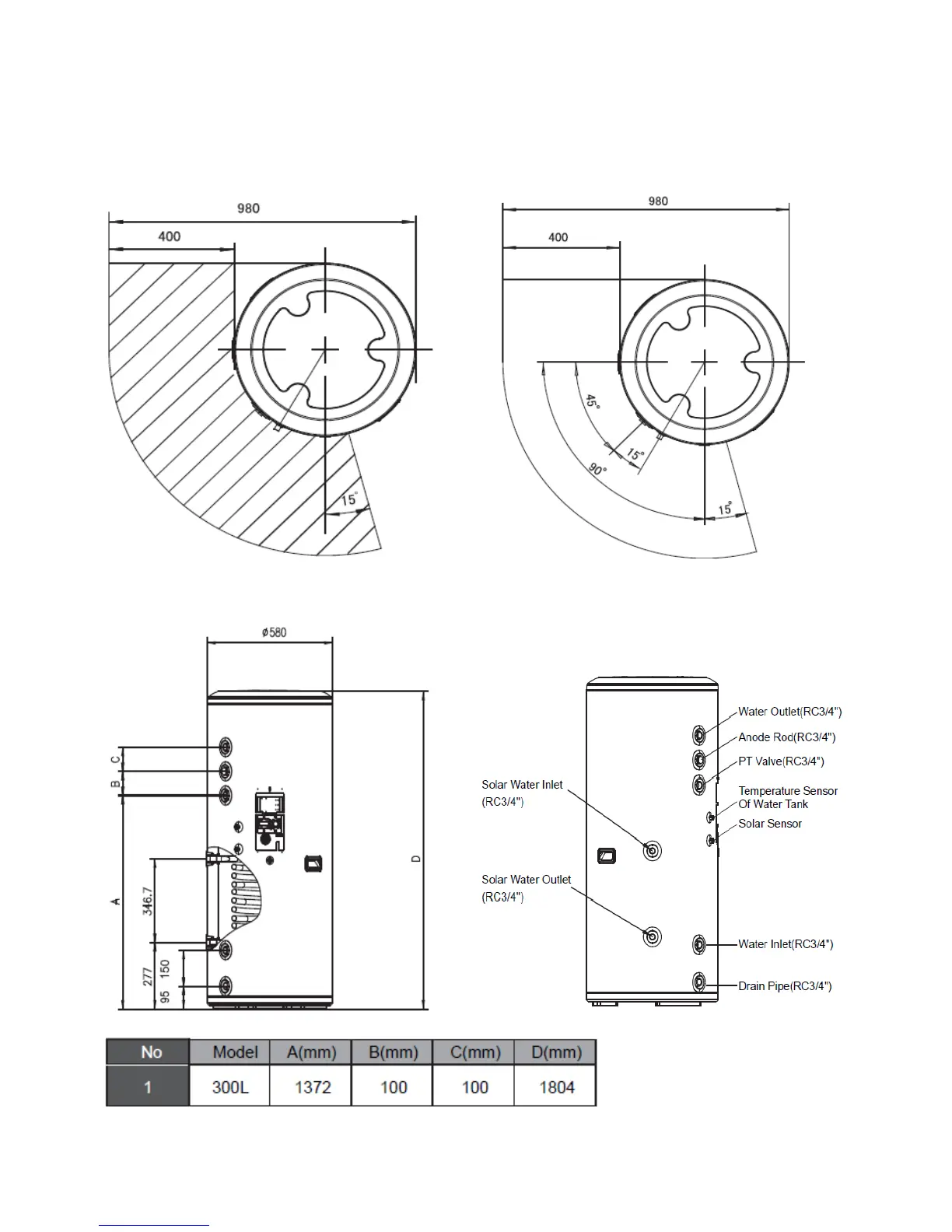

4.3 Dimensions and service space
Before installing the unit, reserve the space of maintenance shown in the following figure.
The dimensions of the water tank as following figure.
