NOTE:
For the NC (normal closed) valve, it is necessary to reverse the terminal 4 and 5, 7 and 8, 10 and
11 to get the right opening and closing of the valve.
2. Fix the cable(s) with cable ties to the cable tie mountings to ensure strain relief.

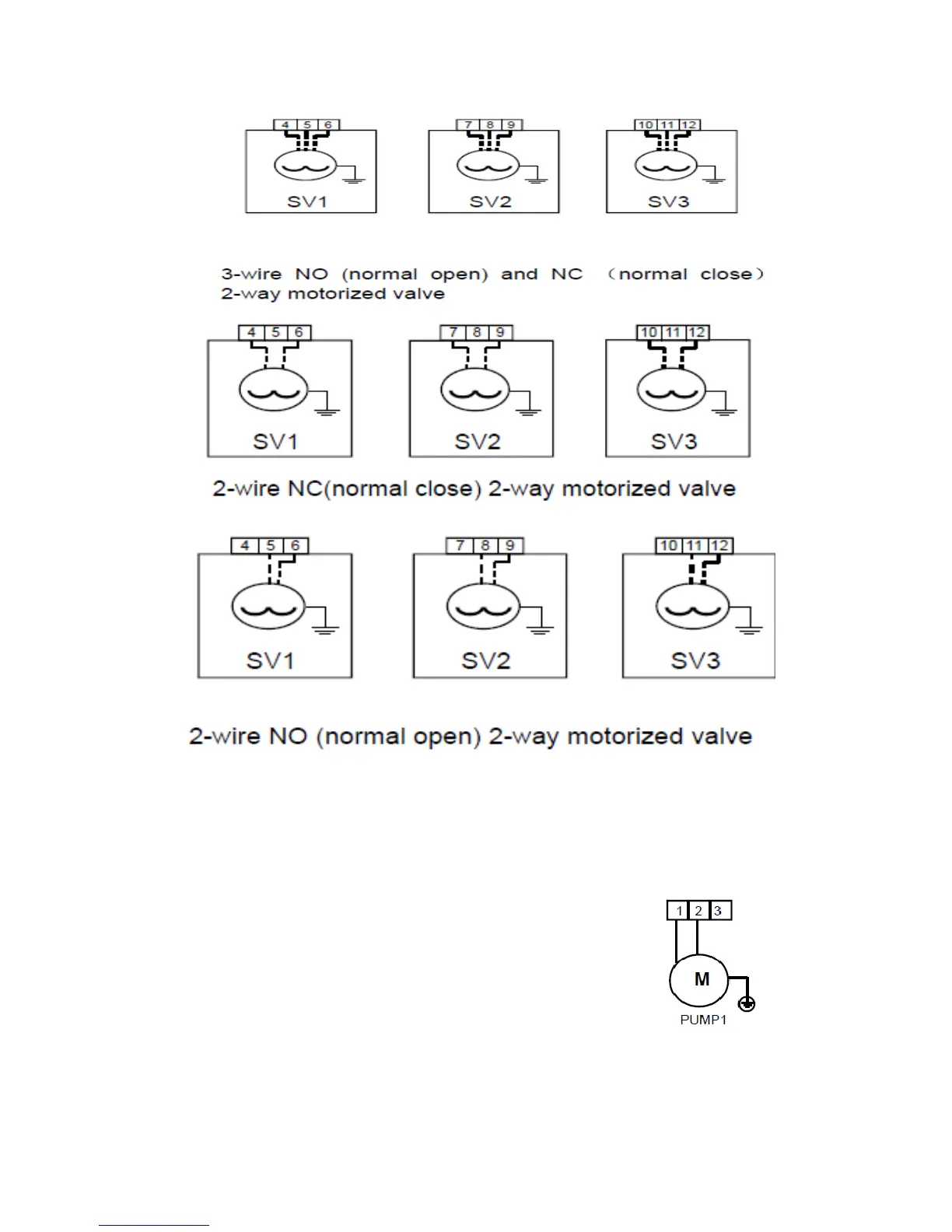

Electrical Connection of Water Pump
Water pump specification:
Power supply: 220-240V~ 50Hz
Maximum running current: 2A
Using the appropriate cable, connected the
pump cable to the terminals
Fix the cable with cable ties to the cable tie mountings to ensure
strain relief.
