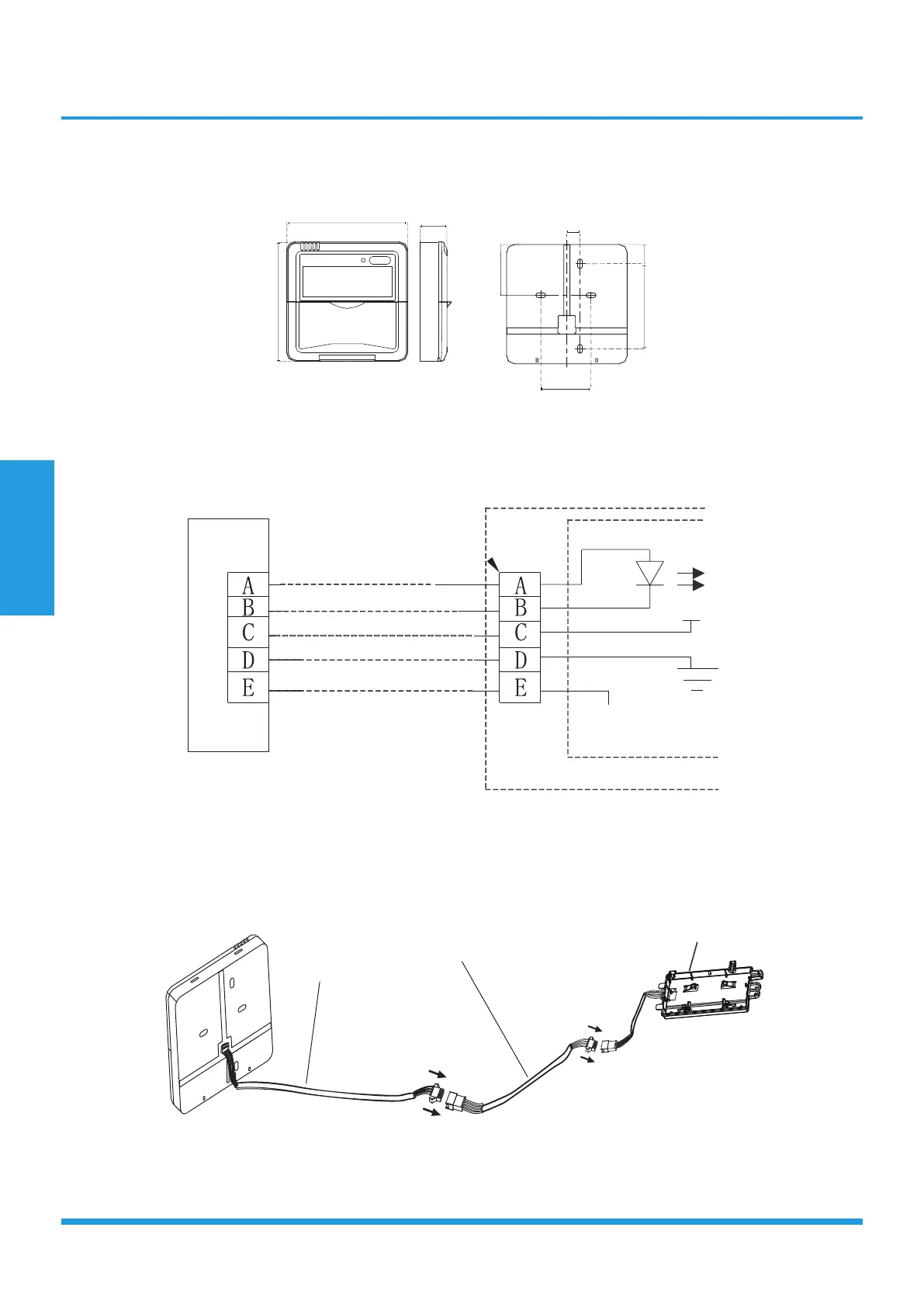

iii) Installation

• Dimensions

120mm

(4.7”)

120mm

(4.7”)

21mm

(0.8”)

51.1mm

(2”)

13.1mm

(0.5”)

19.5 mm

85.5mm

(3.3”)

50mm

(1.9”)

19.5mm

(0.7”)

• Wiring diagram

Refer to the following diagram to wire the Wall mounted type remote control to the indoor unit.

5-Core Shield Cable

Wire Joint, 5p

Infrared Pipe

Indoor Unit

RUN

GND

+5V

Indoor Unit Switch Board

Wire Controller

• Installation Diagram

Connect the wire from the display panel of the indoor unit to a connecting cable. Then connect the other side of the

connecting cable to the remote control.

5-core wire

The connective wires group(6m)

Display board

Note: Be sure to reserve a length of the connecting wire for periodic maintenance.
