7.Refrigeration System Sketch Drawing

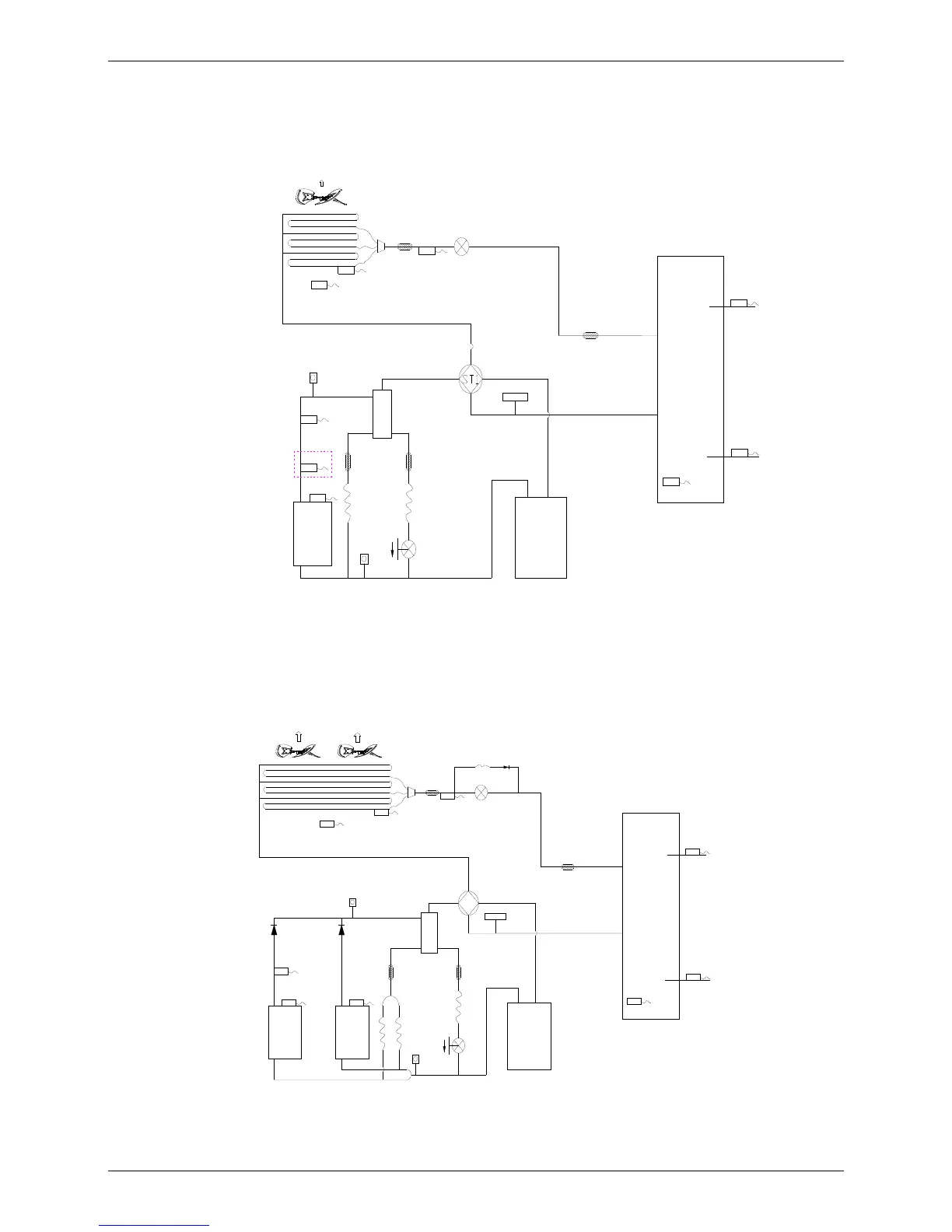

7.1 MC-SU30-RN1L refrigeration system sketch drawing
Each module has one compressor, one refrigerant system.
T7C1
INV1
T7C2
T3
Low pressure switch
T4
EXV
SV4
Pressure
sensor
Tin
Tout
Water side
exchanger
T6
Tz
Discharge temperature
protection switch
High pressure switch
separator
Oil
vapor liquid separator
Air direction
7.2 MC-SU60-RN1L refrigeration system sketch drawing
Each module has two compressors, one refrigerant system.
T7C2
T3
T4
SV4
T7C1
INV1 INV2
Tin
Tout
Tz
Capillary
T6
Air direction
Left
Right
EXV
Discharge temperature
protection switch
High pressure switch
Low pressure switch
separator
Oil
vapor liquid separator
Water side
exchanger
Pressure
sensor
ST1
