Aqua Tempo Super II Series DC Inverter Air-cooled chiller unit (50Hz) MCAC-ATSM-201704
17

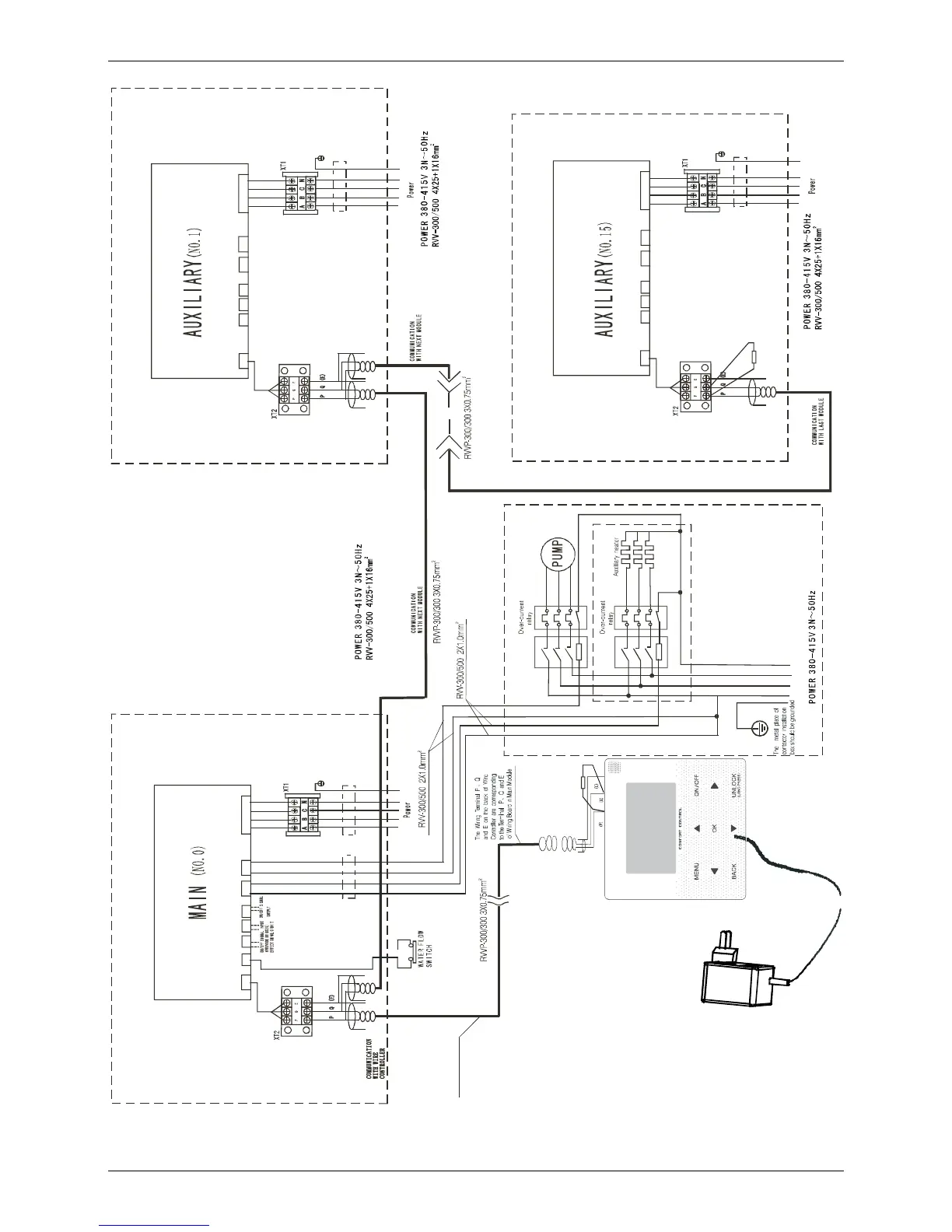

8.3 MC-SU60-RN1L Networking Communication Schematic
Model:MC-SU60-RN1L
AB
C
N
Thelengthofwire
should be shorter
than 500m
100Ω
Black
Yellow
Gray
Notes
The wiring diagram of auxiliary heater and
pump is just for re ference ,please follow the
instruct ions of correspon ding auxi liary
heater products.
Please choose such accessory as power
wire , switch of auxiliary heater according to
the actual parameter of products and national
120Ω
CN21
CN21
CN21
Contactor
Contactor
CN45
CN46
CN46
CN45
CN46
CN45CN44
CN19 CN2
CN19 CN2
CN19 CN2
CN60
CN60
CN60
CN30
CN30
CN30
Adapter
In put:AC 220-240V
Out put:AC 10.5 V
To Next Page
