MCAC-ATSM-201704 Aqua Tempo Super II Series DC Inverter Air-cooled chiller unit (50Hz)
28

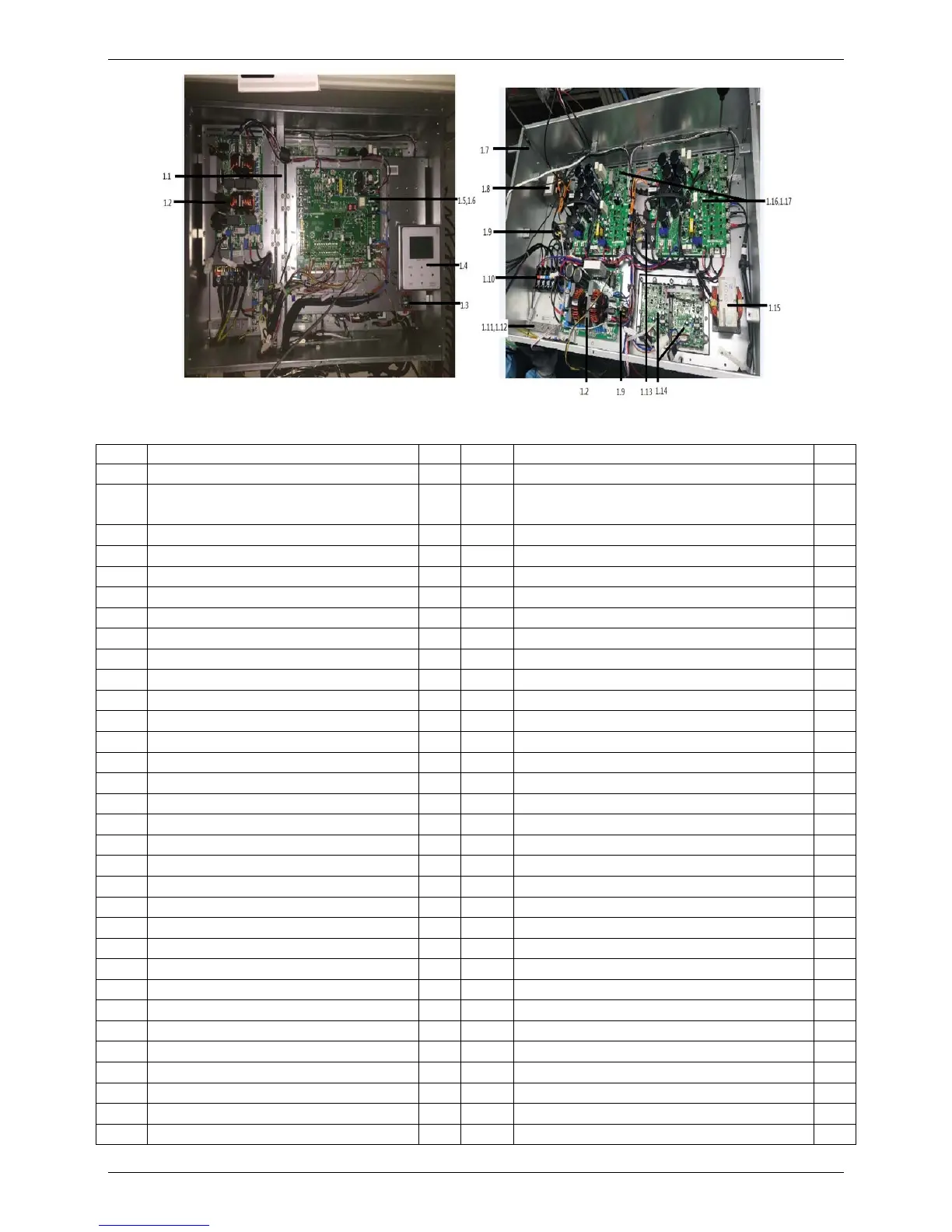

No. Part Name Qty No. Part Name Qty
1 Electric control box assembly 1.0 12 Connecting pipe 2.0
1.1
Electric installation board
assembly 1.0 13 Four-way valve assembly 1.0
1.2 Filter board assembly 2.0 13.1 Pressure sensor 1.0
1.3 Terminal bolck, 3P 1.0 13.2 Four-way valve kit 1.0
1.4 Wired controller 1.0 14 Throttle part 1.0
1.5 Outdoor main control board assembly 1.0 14.1 Electric expansive valve (EEV) 1.0
1.6 Main board bracket 1.0 15 Drainage pan 1.0
1.7 E-part box assembly 1.0 16 Coaming assembly 1.0
1.8 Reactance 1.0 17 Pole 5 1.0
1.9 Current detection board ass'y 2.0 18 Bracket 1.0
1.10 Terminal block, 4P 1.0 19 Oil separator 1.0
1.11 Clamp for wiring 1.0 20 DC Inverter Rotary Compressor 2.0
1.12 Clamp for wiring 1.0 21 Gas-liquid separator 1.0
1.13 Bridge Rectifier 2.0 22 Coaming assembly 1.0
1.14 Module board assembly 1.0 23 B unit condenser assembly 1.0
1.15 Reactance 1.0 24 Pipe Temperature Sensor 4.0
1.16 Module board assembly 2.0 25 Room Temperature Sensor 1.0
1.17 Radiator 2.0 26 Pipe temperature sensor assemblies 2.0
2 Wind nets 2.0 27 Pipe Temp. sensor ass'y 1.0
3 Top cover assembly 1.0 28 Discharge Temp. sensor ass'y 2.0
4 Pole 5 3.0 29 Pipe Temperature Sensor 1.0
5 Coaming assembly 1.0 30 Water Outlet pipe assembly 1.0
6 Air duct hoisting ass'y 1.0 31 Fixing board assembly 1.0
6.1 Axial fan 2.0 32 Flow Switch 1.0
6.2 Top frame 1.0 33 Water Inlet pipe assembly 1.0
6.3 Brushless DC Motor 2.0 34 Exhaust valve 1.0
6.4 Bracket assembly 2.0 35 Safety valve 1.0
7 B unit condenser assembly 1.0 36 Holder ring 2.0
8 Bracket assembly 1.0 37 Heat-exchanger assembly 1.0
9 E-part box door 1.0 38 Drainage plug assembly 1.0
10 Discharge pipe assembly B 1.0 39 Liquid accumulator 1.0
10.1 Pressure switch 1.0 40 Coaming assembly 1.0
