Midea MCA3U-09HRFN1-M(C) User Manual

210
Port
Description
Parameter
Remark
CON1
Power input for the PCB
230V/AC
CN1
Communication with main PCB
DC
CN2
Test port
5V/DC
For debugging board
CN23
UVW output for DC fan motor
CON2
Ports for reactor

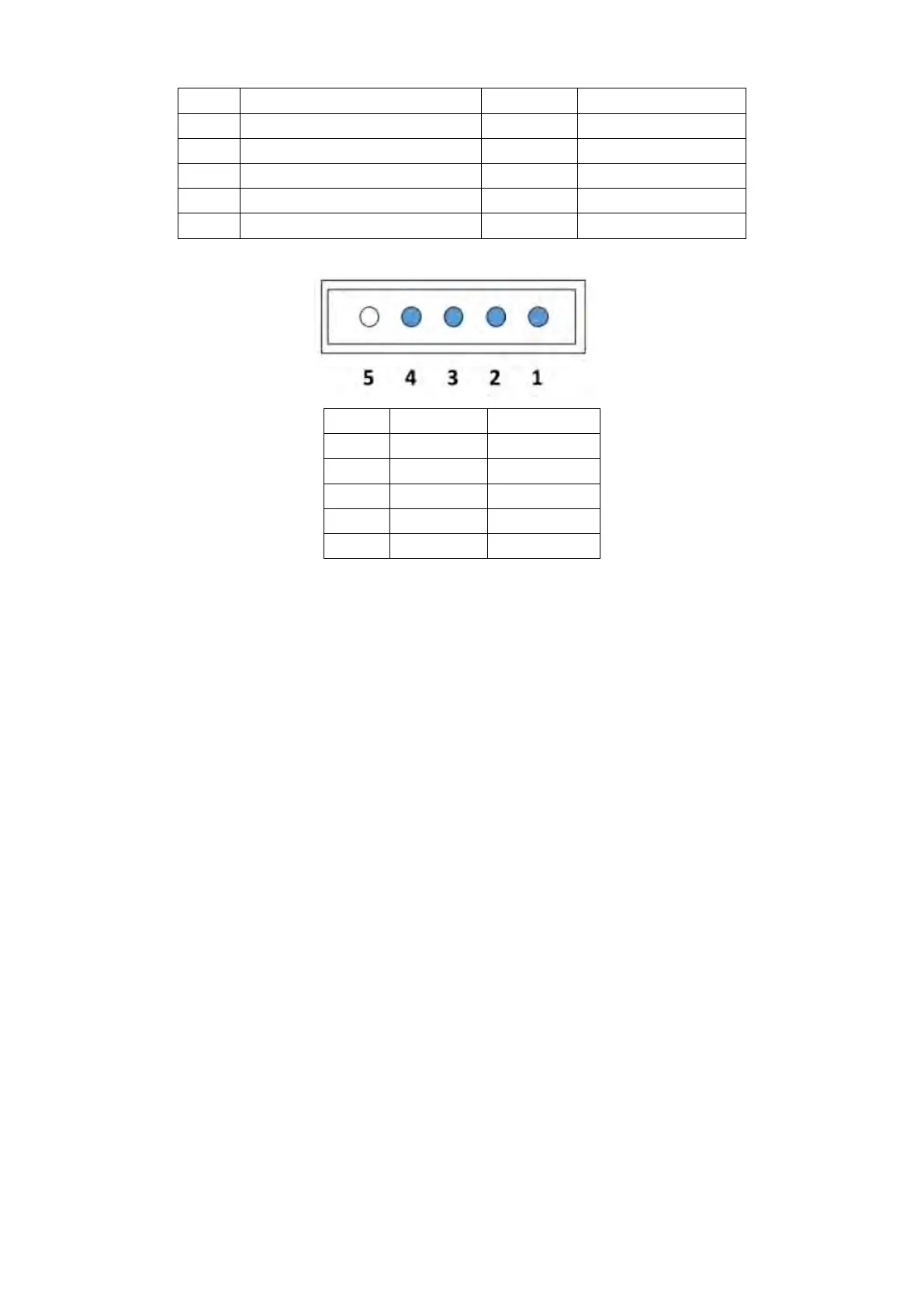

CN1 Communication with main PCB
NO.
Signal
Voltage
1
Vcc
+15V
2
GND
3
TXD
0~6V
4
RXD
0~15V
5
--
--
