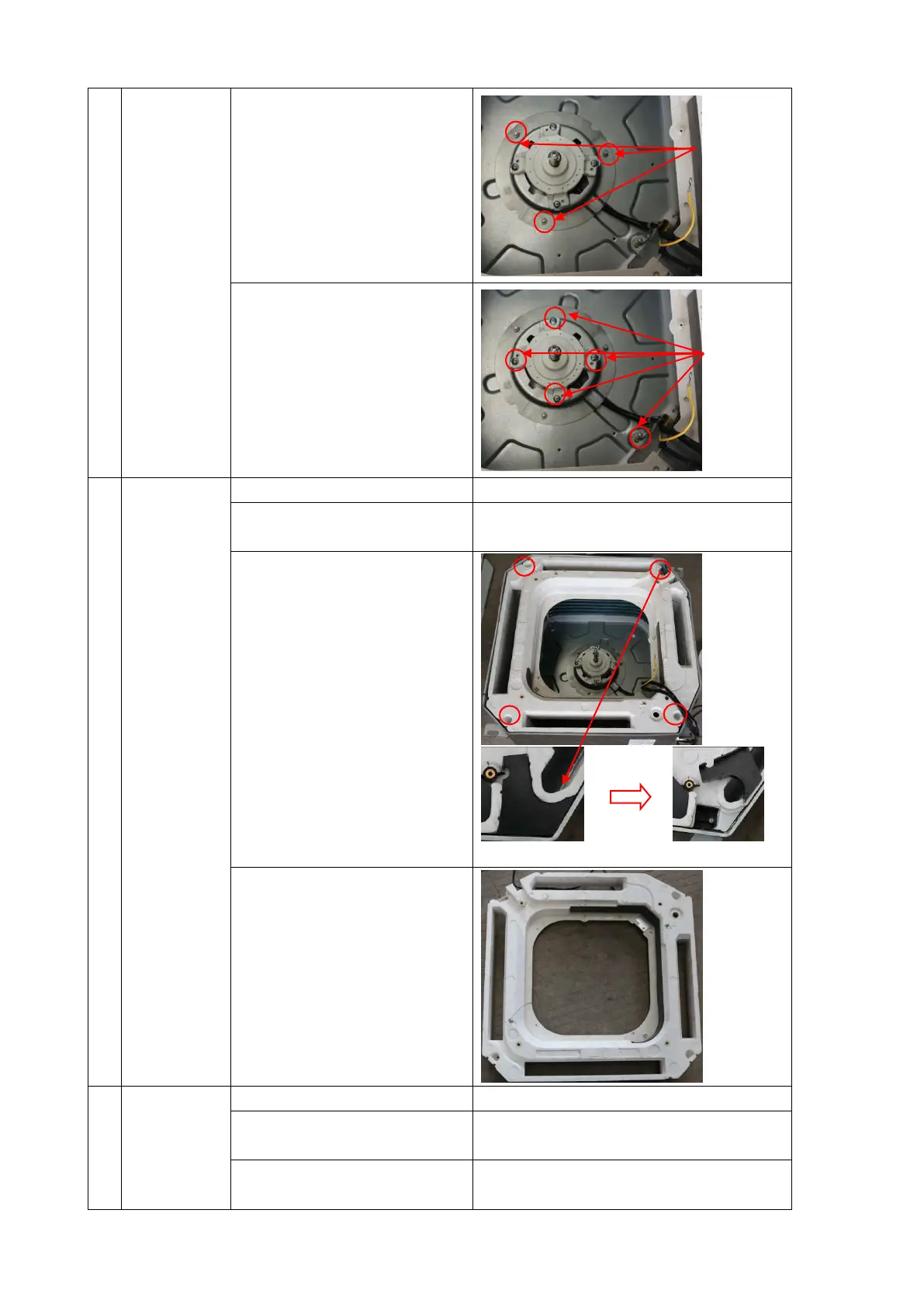

255
2) Remove the fixing board
of fan motor wire
3) Remove the 5 screws to
disassemble the fan
motor
9
Remove the
water
collecting
assembly
1) Remove the panel
Repeat the operation of No.2
2) Remove the electronic
control box
Repeat the operation of No.6
3) Screw off the 4 screws
inside 4 holes (1 is under
a protection cover) to
remove the water
collecting assembly.
4) Take out the water
collecting assembly
10
Remove the
draining
pump
1) Remove the panel
Repeat the operation of No.2
2) Remove the electronic
control box
Repeat the operation of No.6
3) Remove the water
collecting assembly
Repeat the operation of No.9
3 nuts
5 screws
