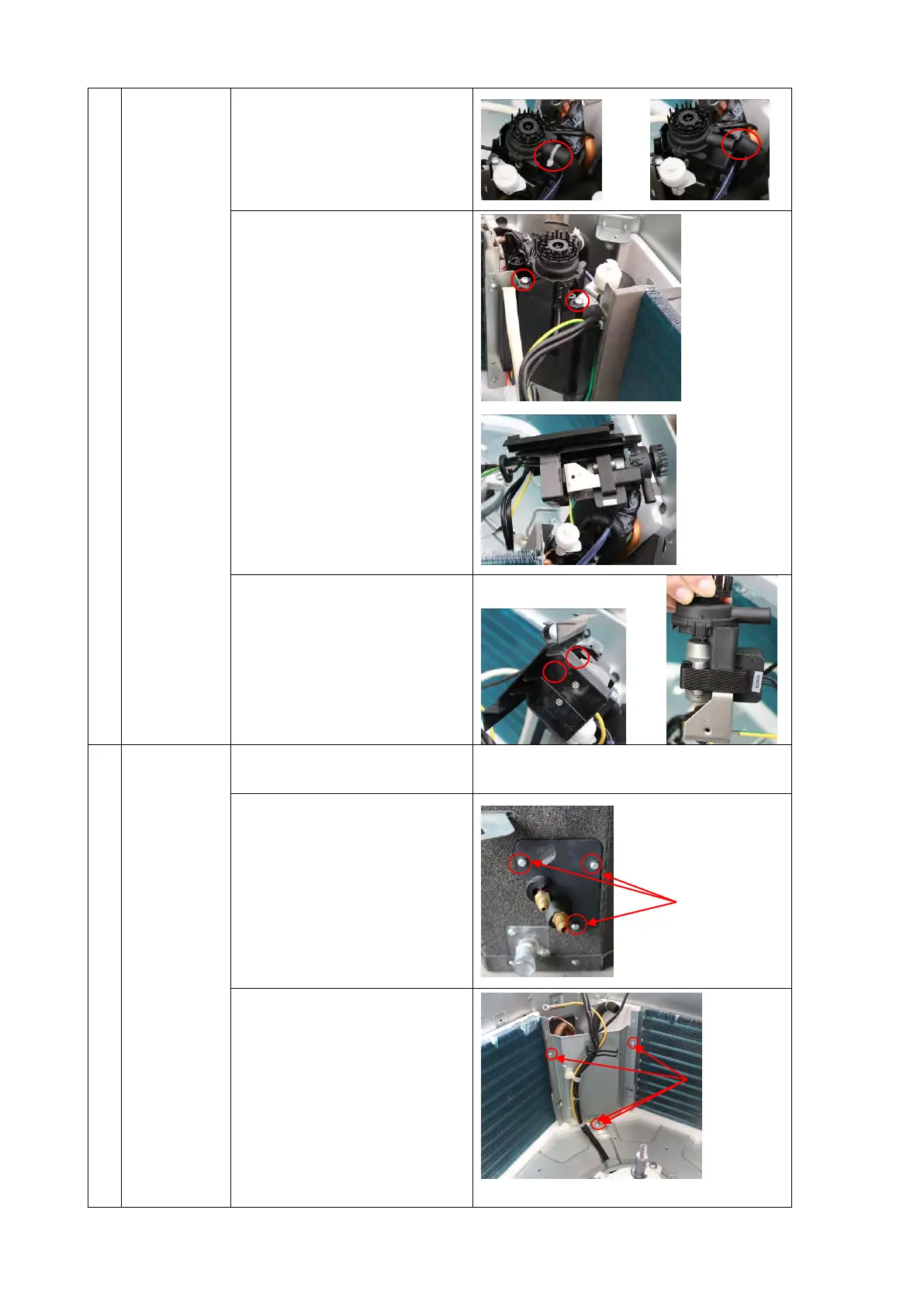

4) Disconnect the drain
pipe.
5) Release 2 screws to
remove the pump
supporter. Be careful of
the connection wires.
6) There are 2 screws under
the supporter to fixing
the pump. Release them
to take the pump out of
the supporter.
11
Remove the
evaporator
1) Remove the water
collecting assembly
Repeat the operation of No.9
2) Remove the seal board of
evaporator
3) Remove the evaporator
fixing board
3 screws
4 screws
