257
4) Remove the evaporator
fixing clamps to
disassemble the
evaporator.
New Cassette Unit
No.
Parts name
Procedures
Remarks
1
Remove the
filter

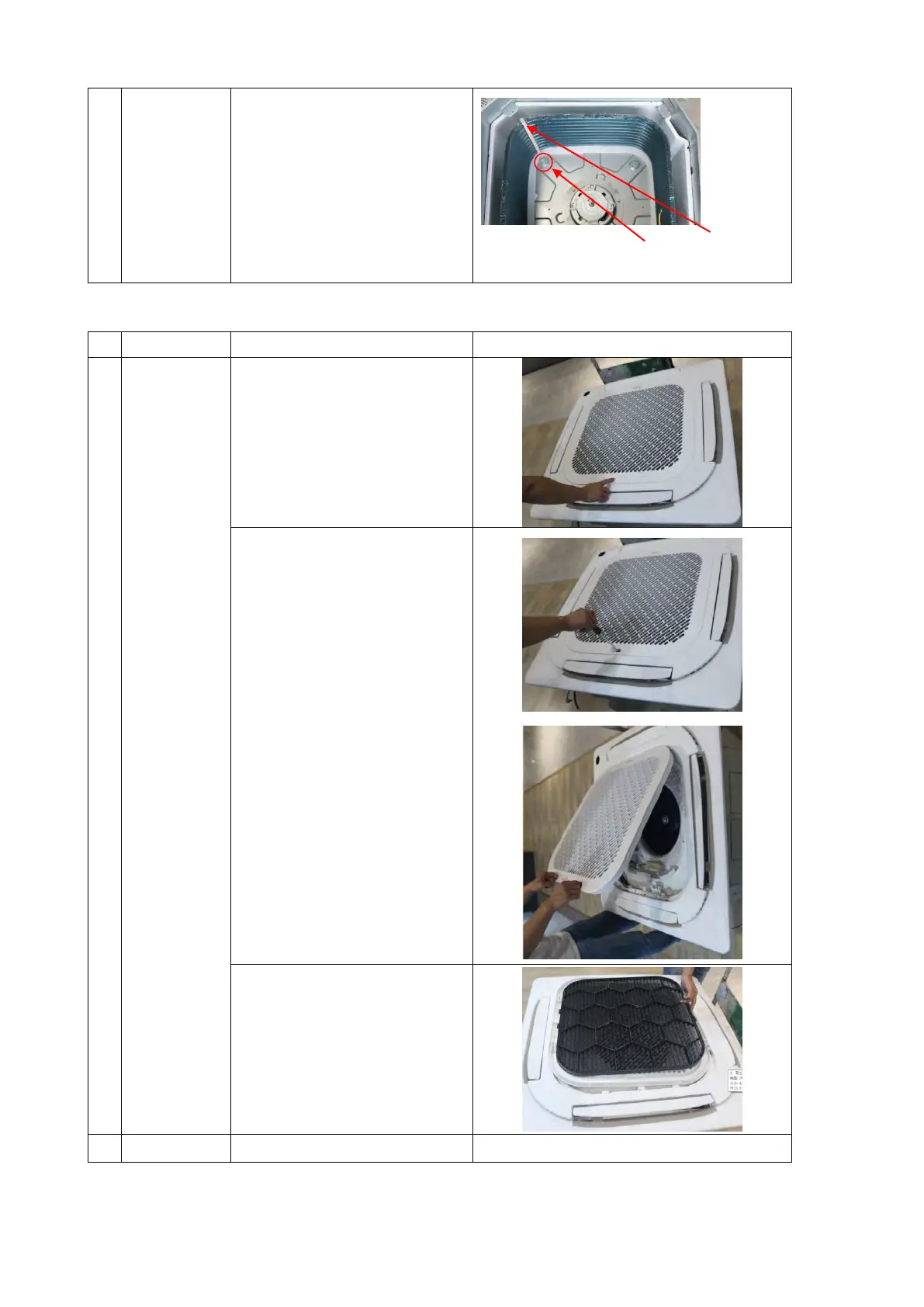

1) Push one side of the
grille clamp
2) Remove one screw then
push two grille clamps to
remove the air inlet grille
assembly
3) Turn over the air inlet
grille assembly then pull
up the filter.
Note: the filter is easy to be
damaged, be careful when
removing it.
2
Remove the
1) Open the grille
Repeat the operation of step1&2 of No.1
Fixing clamps
1 screw
