Midea MCA3U-09HRFN1-M(C) User Manual

258
display
board

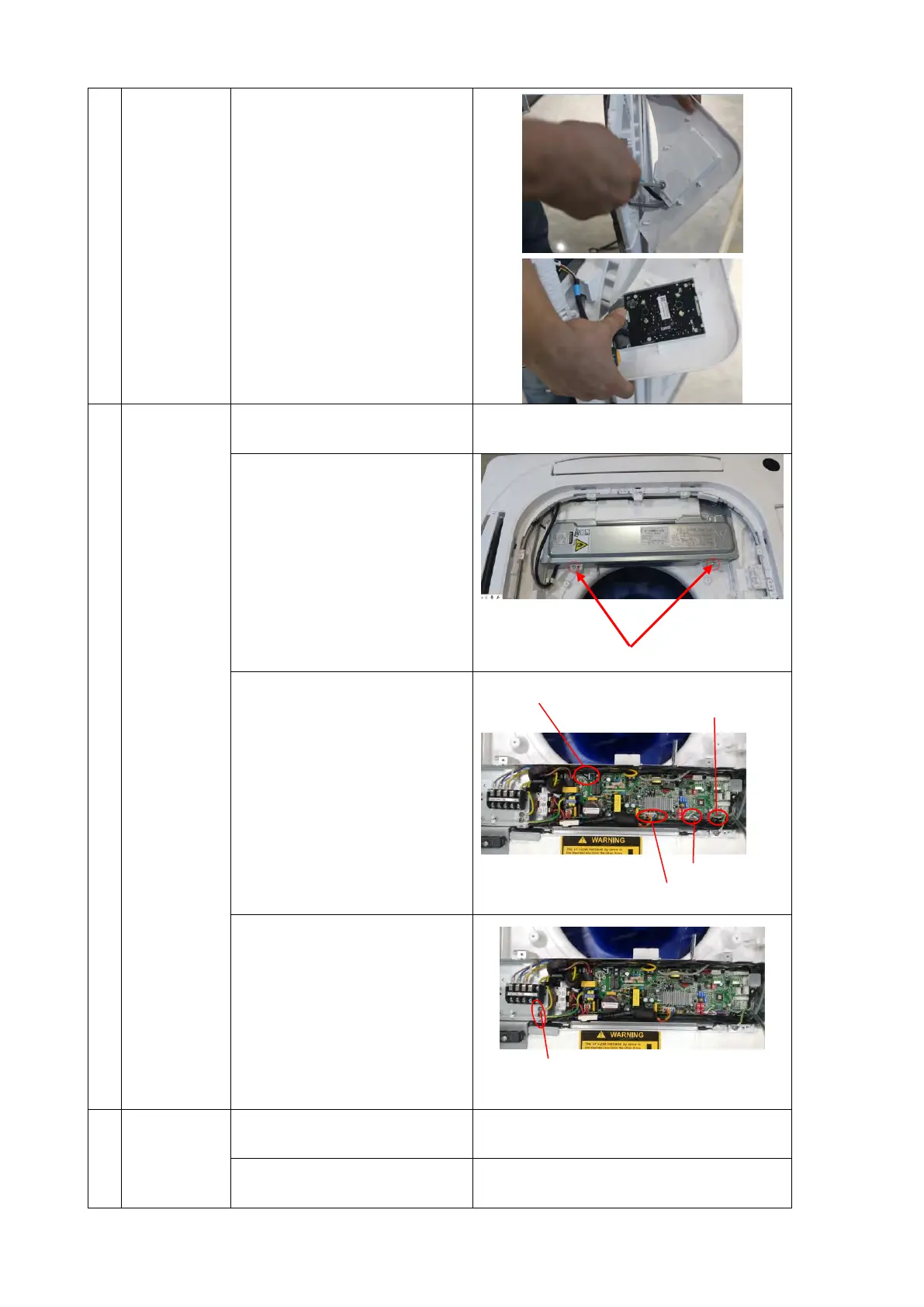

2) Disassemble the display
board
 Open the install
cover assembly(with
display board)
 Remove 1 screw of
display window
board.
 Turn over the display
board, push the
switch to remove the
display board.
3
Remove the
PCB
1) Open the grille
Repeat the operation of step1&2 of No.1(No
need to remove the panel)
2) Disassemble the
electronic control box
cover after remove the 2
screws.
3) Pull out all the
connection wires to other
parts, then the PCB can
be replaced.
4) Remove 2 screws of the
main control board and 2
screws of earth wire.
4
Remove the
electronic
control box
1) Open the grille
Repeat the operation of step1&2 of No.1(No
need to take down the panel)
2) Remove the electronic
control box cover
Repeat the operation of step 2 of No.3
2 screws
Pump
Temp. sensors
Fan motor
Water lever
2 screws of
earth wire
