86

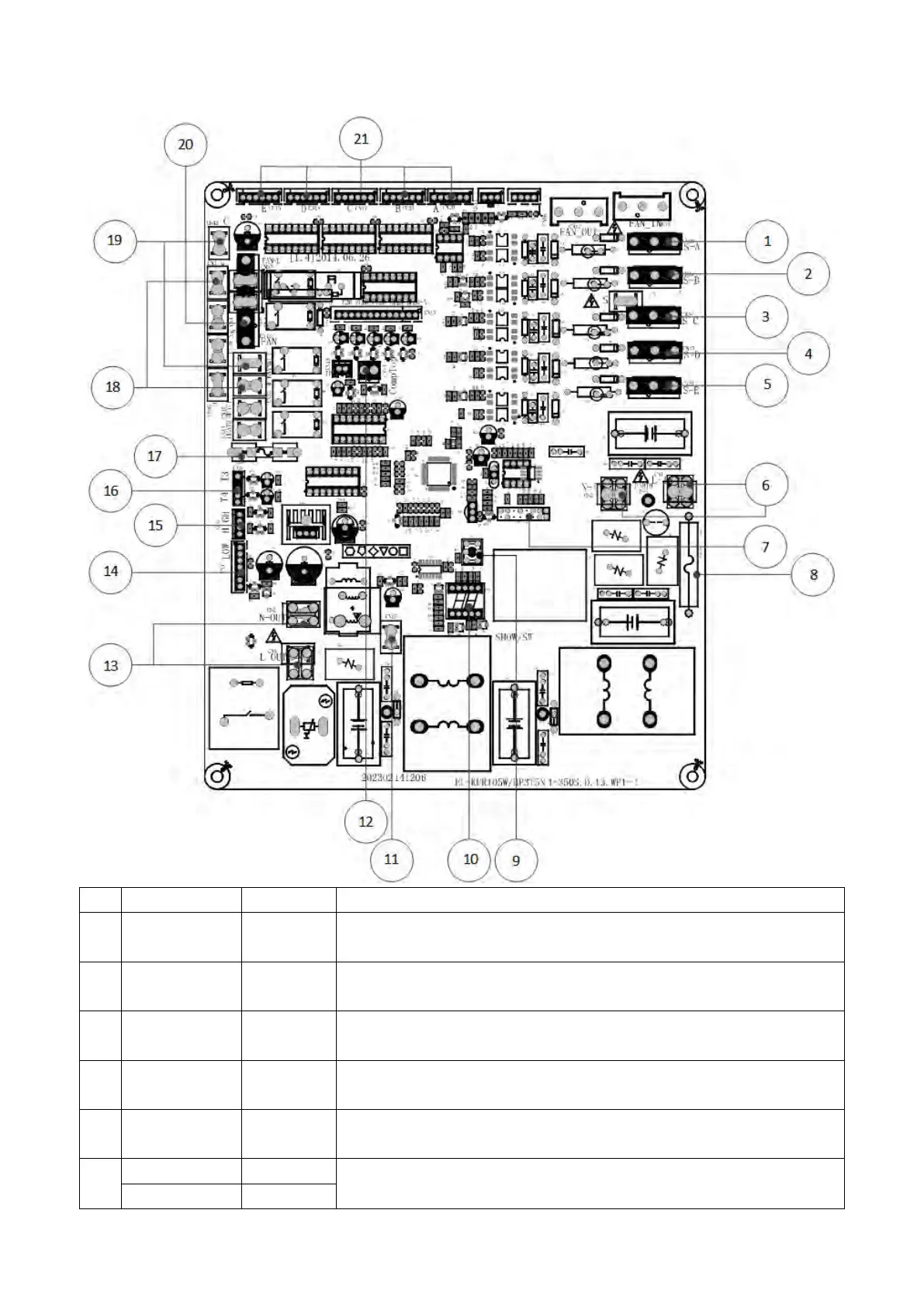

PCB board of MOD30-24HFN1-MT0W, MOD01-23HFN1-MT0W, MOD30U-36HFN1-M
No.
Name
CN#
Meaning
1
S-A
CN30
Current loop communication A, signal wire, connect to the terminal (24V
DC Pulse wave)
2
S-B
CN29
Current loop communication B, signal wire, connect to the terminal (24V
DC Pulse wave)
3
S-C
CN28
Current loop communication C, signal wire, connect to the terminal (24V
DC Pulse wave)
4
S-D
CN30
Current loop communication D, signal wire, connect to the terminal (24V
DC Pulse wave)
5
S-E
CN30
Current loop communication E, signal wire, connect to the terminal (24V
DC Pulse wave)
6
L-IN
CN1
Power supply, connect to the terminal (208-230V AC)
N-IN
CN2
