Piping Diagrams
Outdoor Units 121

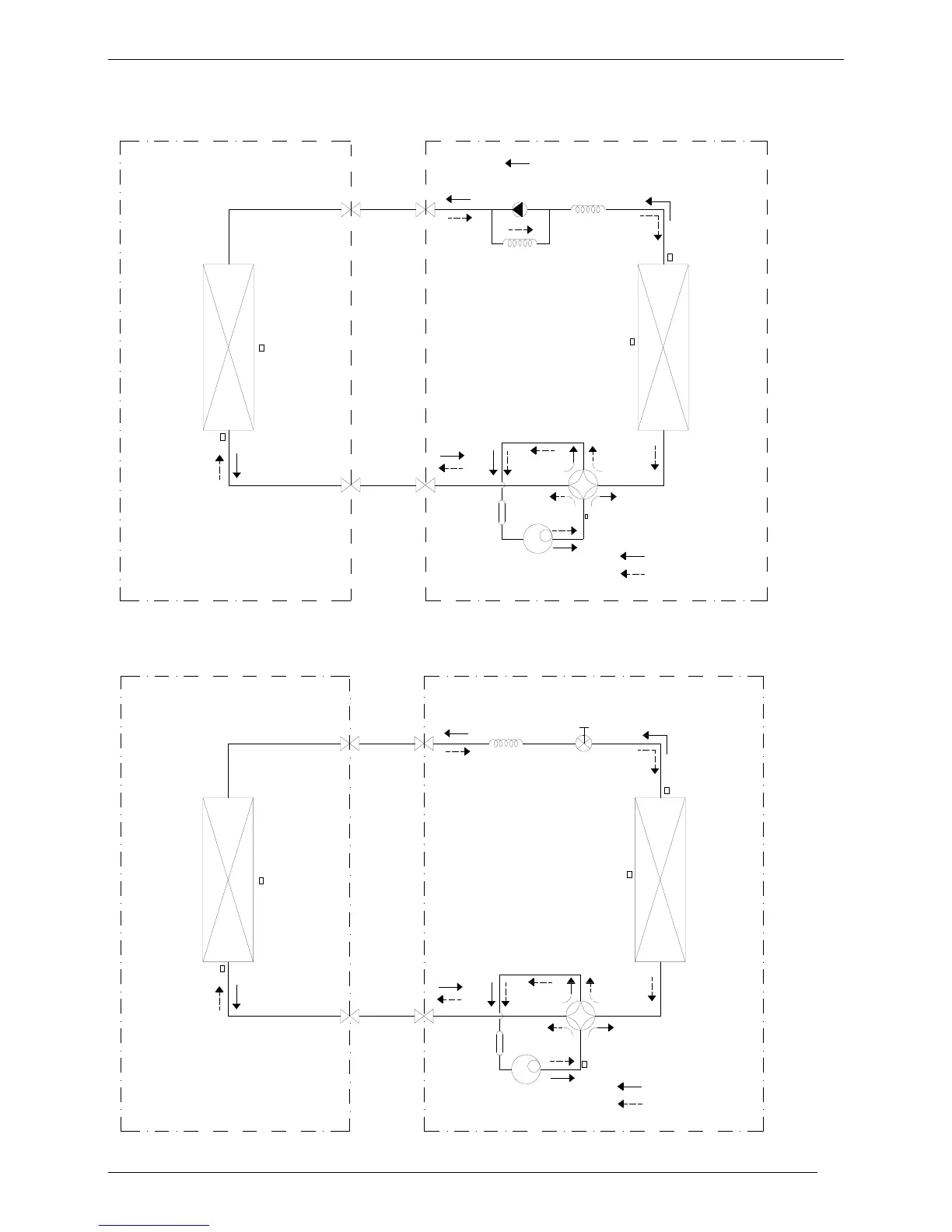

3. Piping Diagrams
MOU-12HDN1-Q MOU-24HDN1-Q(220075301401)
CHECK VALVE
(Heating Model only)
CAPILIARY TUBE
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
Accumulator
T5 Discharge temp. sensor
T4 Ambient
temp. sensor
INDOOR OUTDOOR
For MOU-24HDN1-Q, the accumulator is not included.
MOU-18HDN1-Q MOU-24HDN1-Q(220075301400)
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
T5 Discharge
temp. sensor
T4 Ambient
temp. sensor
INDOOR OUTDOOR
Electronic
expansion valve
CAPILIARY TUBE
Accumulator
For MOU-24HDN1-Q, the accumulator is not included.
