Midea mcd-24hrdn1 - Part 3 Outdoor Units

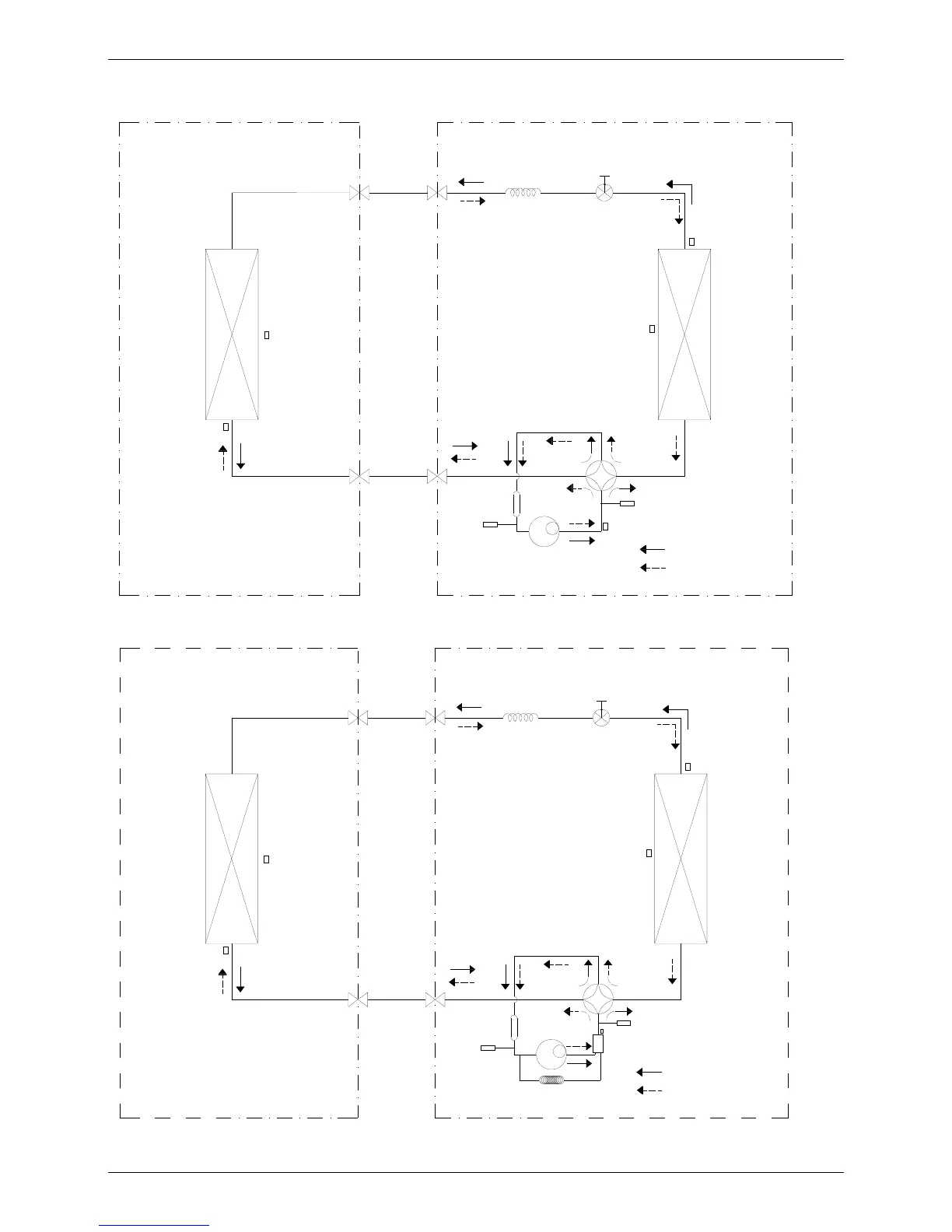

Piping Diagrams
122 Outdoor Units
MOU-30HDN1-Q
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
T5 Discharge
temp. sensor
High pressure
switch
T4 Ambient
temp. sensor
Low pressure
switch
INDOOR OUTDOOR
Electronic
expansion valve
CAPILIARY TUBE
Accumulator
MOU-36HDN1-Q MOU-36HDN1-R MOU-48HDN1-Q MOU-48HDN1-R MOU-60HDN1-R
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
Compressor
2-WAY VALVE
3-WAY VALVE
4-WAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
T3 Condenser
temp. sensor
Accumulator
T5 Discharge temp. sensor
High pressure switch
T4 Ambient
temp. sensor
Low pressure
switch
INDOOR OUTDOOR
Electronic
expansion valve
CAPILIARY TUBE
Oil return Capillary
Oil separator
For MOU-48HDN1-Q, MOU-48HDN1-R and MOU-60HDN1-R, the accumulator is not included.
