Indoor unit installation
Installation 157
3.8 GA floor standing indoor unit installation

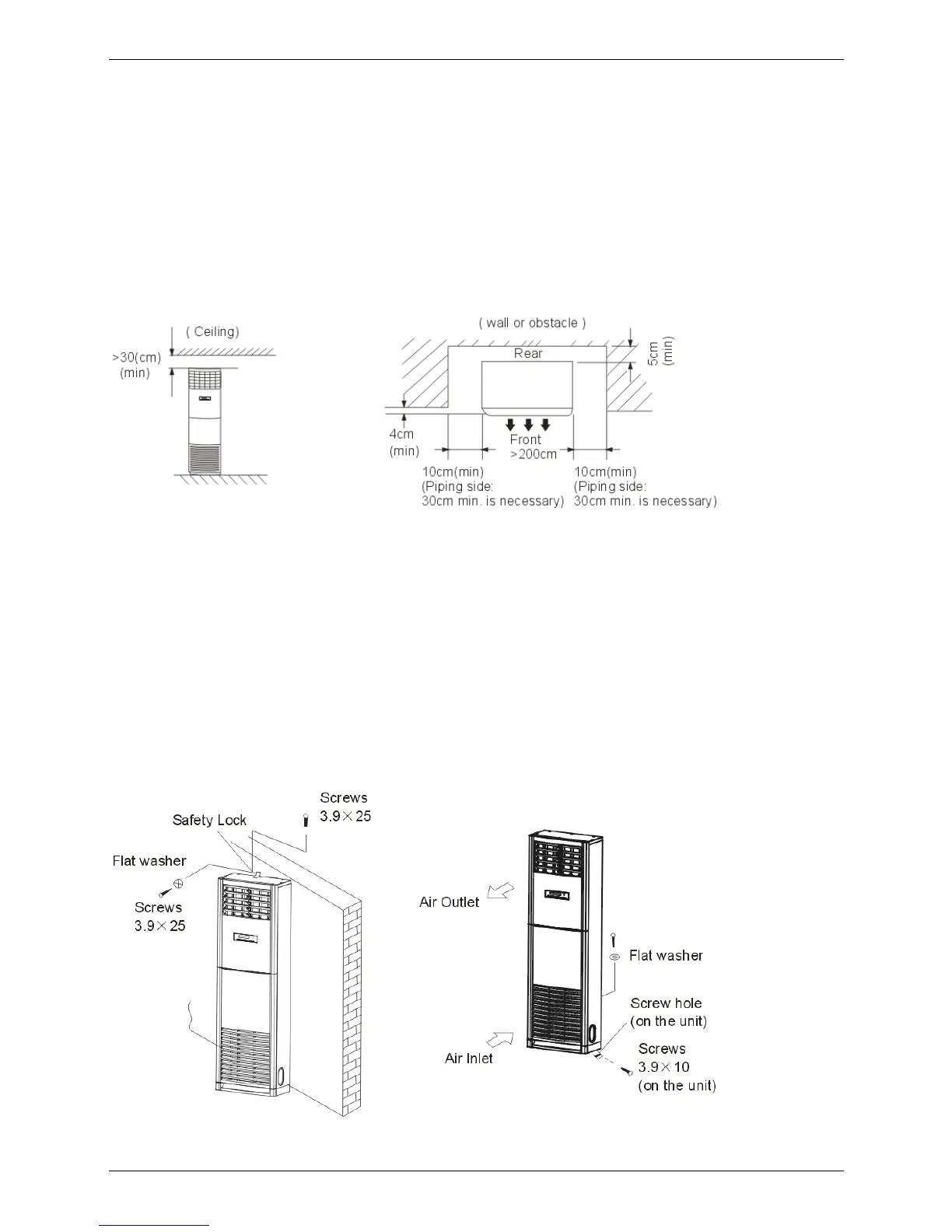

3.8.1 Service space for indoor unit
a. A place which provides the spaces around the indoor unit as required above in the diagram.
b. A place where is no obstacle near the inlet and outlet area.
c. A place which can bear the weight of the indoor unit.
d. A place which allows the air filter to be removed downward.
e. A place where the reception range is not exposed to direct sunlight.
f. In the center of the room where possible.
3.8.1.1 Please stand the unit in hard and flat ground;
Please reserve space for installation and maintenance.
3.8.1.2 Please check the elevation difference between the indoor unit and the outdoor unit, the length of the refrigerant pipe,
and the curved places (bend) of the pipe are no more than the following numbers:
Elevation difference: no more than 20M (if the elevation difference between indoor and outdoor unit is more than 10
meters, it is recommended that the indoor unit be located higher than the outdoor unit.)
Pipe length: no more than 30M.
Bends: no more than 15 places.
3.8.2 Installing
3.8.2.1. Anti-falling;
To prevent the indoor unit from falling, you must:
a. Pay full attention to the unit because its long outer shape makes it easy to fall;
b. Firmly fix the unit to the wall or in the ground to avoid accidental falling.
