5.DISASSEMBLY INFORMATION FOR THE PRODUCT
5.1 Ordinary Information.
1.Please unplug the power cord when you disassemble or maintain the product;
2.Please use the regulation connector lug between the wires as much as possible. Then crimp them firmly
3.When you plug the wires, please insert the plug to the bottom so it is not easily to be unplugged;
5.Please preserve the screws when you take them down. You will use them when you install the dryer;
5.2 The disassembly methods of Struts:
the sharp/hard-edged party and high-heat part (motor);
4.Make sure that the wires cannot touch the mobile part such like the drum, and also cannot touch
6.ometimes you must operate the dryer when it is electriferous . In this case, you must be careful and
by the proper tools and bundle them by the insulating tape;
pay attention to the electric shock.
- 12 -

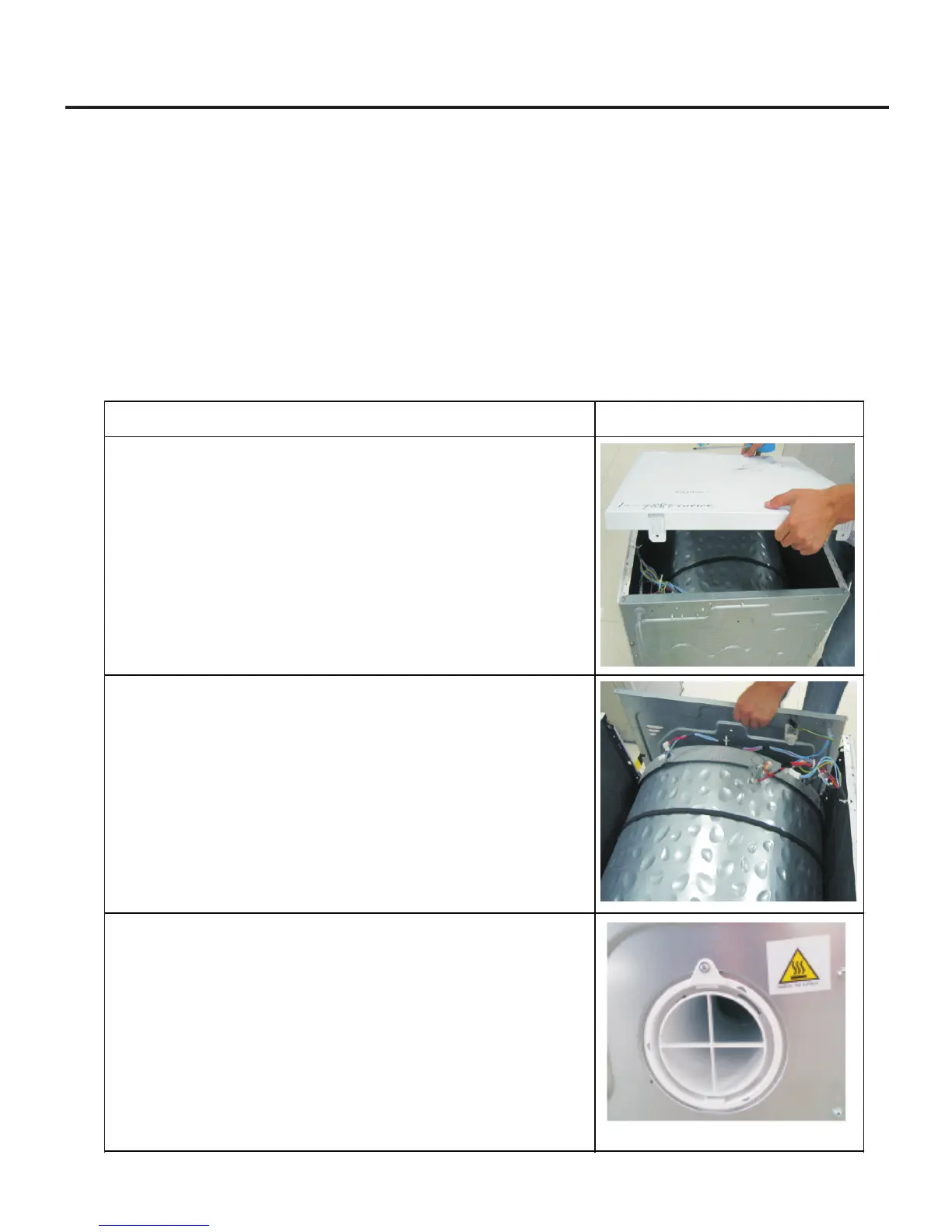

Steps of disassembling machine Pictures
1. Remove the top cover components of the case
(1) Remove the screw cap;
(2) Remove the screws fixed roof component;
(3) Take out the roof component.
2.Remove the back board component of the case
(1) remove the screws fixed back board ;
(2) remove the screws fixed thermostat support component;
(3) pulled out wire harness assembly and Line firm and
terminal connected with back board;
(4) take down the back board component.
2-1. Removed the back vent flange
