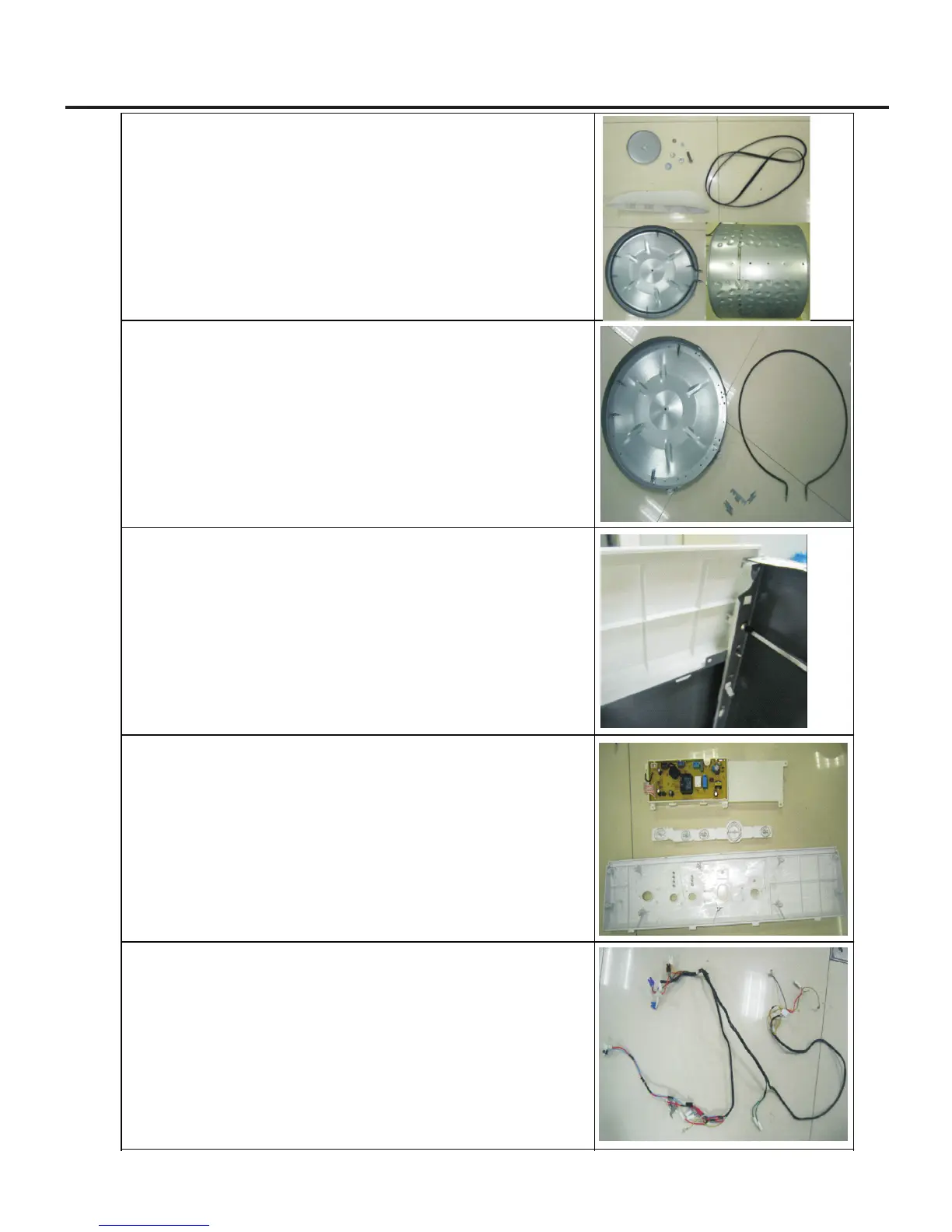

5.DISASSEMBLY INFORMATION FOR THE PRODUCT
- 14 -
4-1. Remove the body of drum, lifting bar, heating pipe
cover and drum shaft, etc
4-2. Remove the heating pipe, heating pipe cover and its
support
5. Remove the control panel component
(1) removed the screws fixed control panel component;
(2) Pull out the terminals connected wire with PCB board.
5-1. Remove the control pannel, PCB board and buttons, etc
6. Remove the wiring harness (including the thermostat)
(1) remove all the line firm fixed wires;
(2) pull out the terminals connected the wires with the
motor and the door switch ;
(3) take out the wires.
