27
Safety
Precautions
Installation
Requirements
Installation
Instructions
•

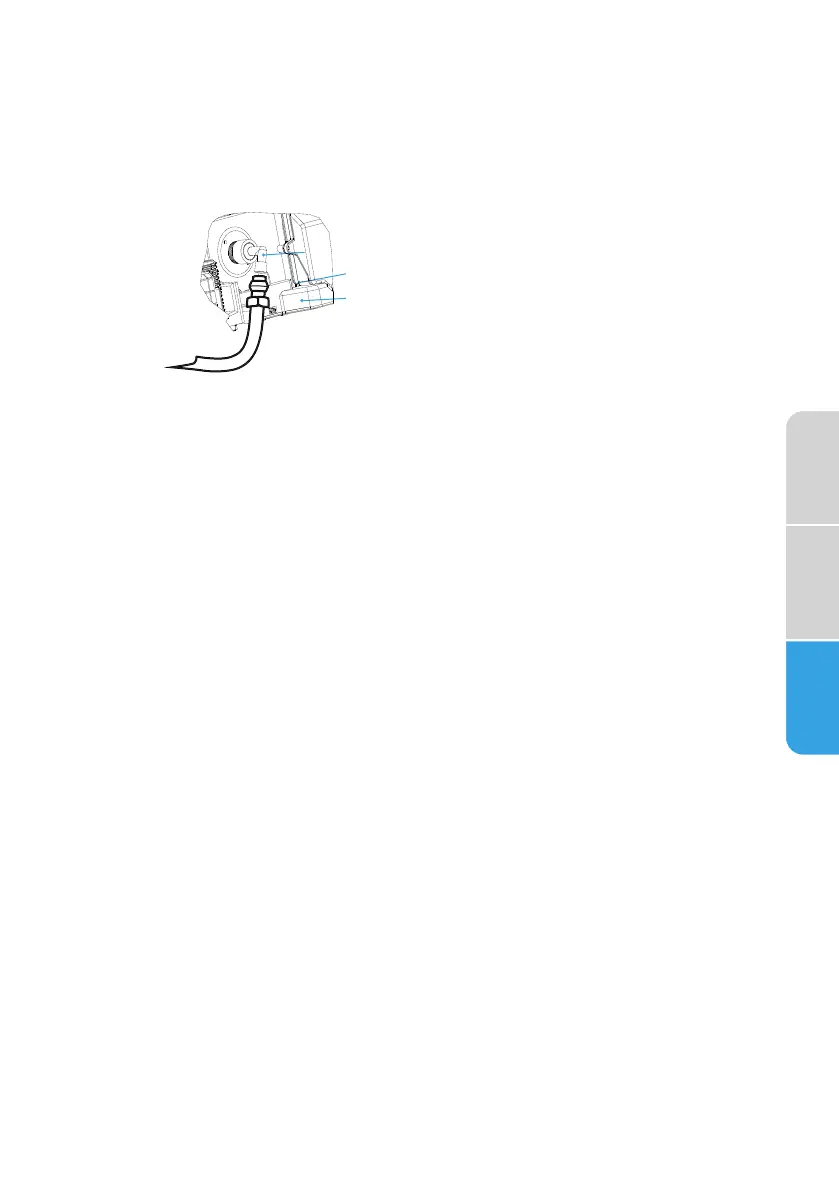

Slide the nut and ferrule forward, and then start threading the nut
onto the elbow.
IMPORTANT: Do not solder within 6" (15.2 cm) of the water inlet
valve.
2. Route the water supply line in the channel on the left-hand side of
the base. To minimize the noise caused by vibration when using the
dishwasher, make sure the supply line does not touch the dishwasher
base, frame, or motor. Make sure the dishwasher is not resting on and/
or pinching the supply line.
3. Tighten the compression nut until snug. Do not overtighten.
4. Place a paper towel under elbow, and then turn on the water supply to
check for leaks.
CONNECT TO HOUSE DRAIN SYSTEM
1. Connect the drain hose to the waste tee or garbage disposal using one
of the following methods.
•
Option 1 – Garbage Disposal - With Air Gap
•
Option 2 – No Garbage Disposal- With Air Gap
•
Option 3 – Garbage Disposal - No Air Gap*
•
Option 4 – No Garbage Disposal - No Air Gap*
*an air gap is recommended
IMPORTANT:
•
Always use a new drain hose when installing a new dishwasher.
•
Total drain hose length must not exceed 10 ft (3.05 m), for proper drain
operation.
•
To minimize the noise caused by vibration when using the dishwasher,
route the drain hose so that it avoids contact with the floor and the
edge of the hole in the cabinet through which the hose passes.
a
c
b
a Elbow
b F
errule
c
Compression
Nut
To Next Page
