Option 3 – (G
arbage Disposal - No Air Gap):

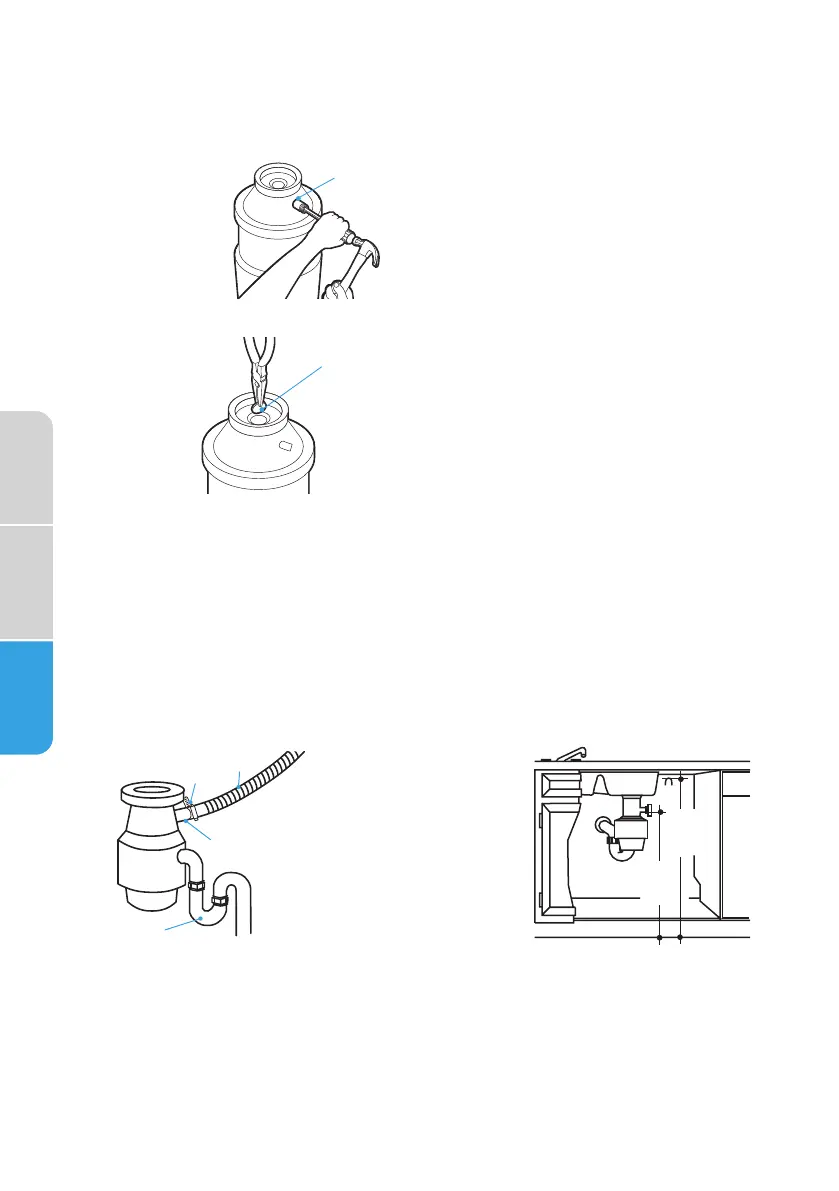

1. Remove the knockout drain plug from the disposal inlet. Using a
screwdriver and hammer, firmly tap the plug. The plug will separate
and fall into the disposal.
a
a Disposal Inlet
2. R
emo
ve the drain plug from the disposal.
a
a
Disposal Drain Plug
IMPORT
ANT: If you need to cut the drain hose to fit the diameter of the
connection, cut only the rubber end of the hose, as shown earlier in this
section (do not cut into the ridged section).
3. Using a screw-type clamp*, attach the drain hose to the garbage
disposal inlet.
NOTES:
•
This c
onnection must be located before the drain trap and at least 20"
(50.8 cm) above the floor where dishwasher will be installed.
•
It is rec
ommended that the drain hose be looped up and securely
fastened to the underside of the counter at a minimum height of 32"
(81.3 cm).
b
a
c
d
a
Drain Hose
b
Scre
w-Type Clamp
c
Garbage Disposal
Inlet
d
Drain T
rap
18"
Min.
32"
Min.
32"
Min.
18"
Min.
* P
arts available from local plumbing supply store.
