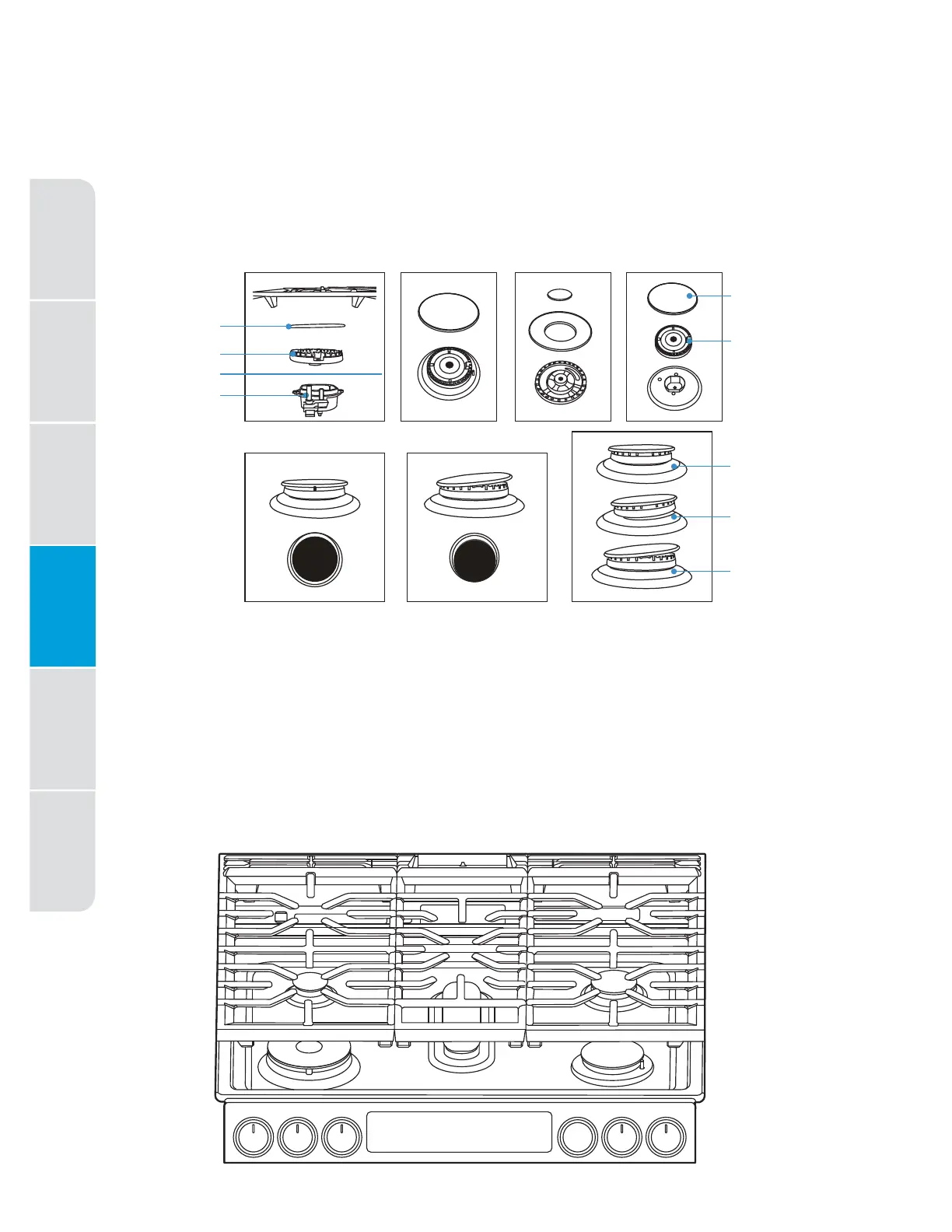

Surface Burner Assembly and Placement:
Position surface burner heads on top of the burner cups as shown. Each
round burner head will be oriented such that the "stability chamber" is
next to the electrode. Make sure the surface burner heads are flat and
parallel with the cooktop. Place the matching size caps on top of each
surface burner head. See images below for proper assembly and
alignment.
See "LP Conversion" and "High Altitude Conversion" sections for surface
burner power rating based on the conversion settings unique to each
installation.
Place the left, center, and right surface burner grates on the cooktop.
Grates are not interchangeable - they must be placed correctly as
illustrated below. The edges of the grates should match up with the
edges of the cooktop.
Burner Grate
Cap
Spreader
Correct
Incorrect
Incorrect
Burner Cap
Burner
Cooktop
Ignitor
