Midea MH90A3200W-ES

INSTALLATION

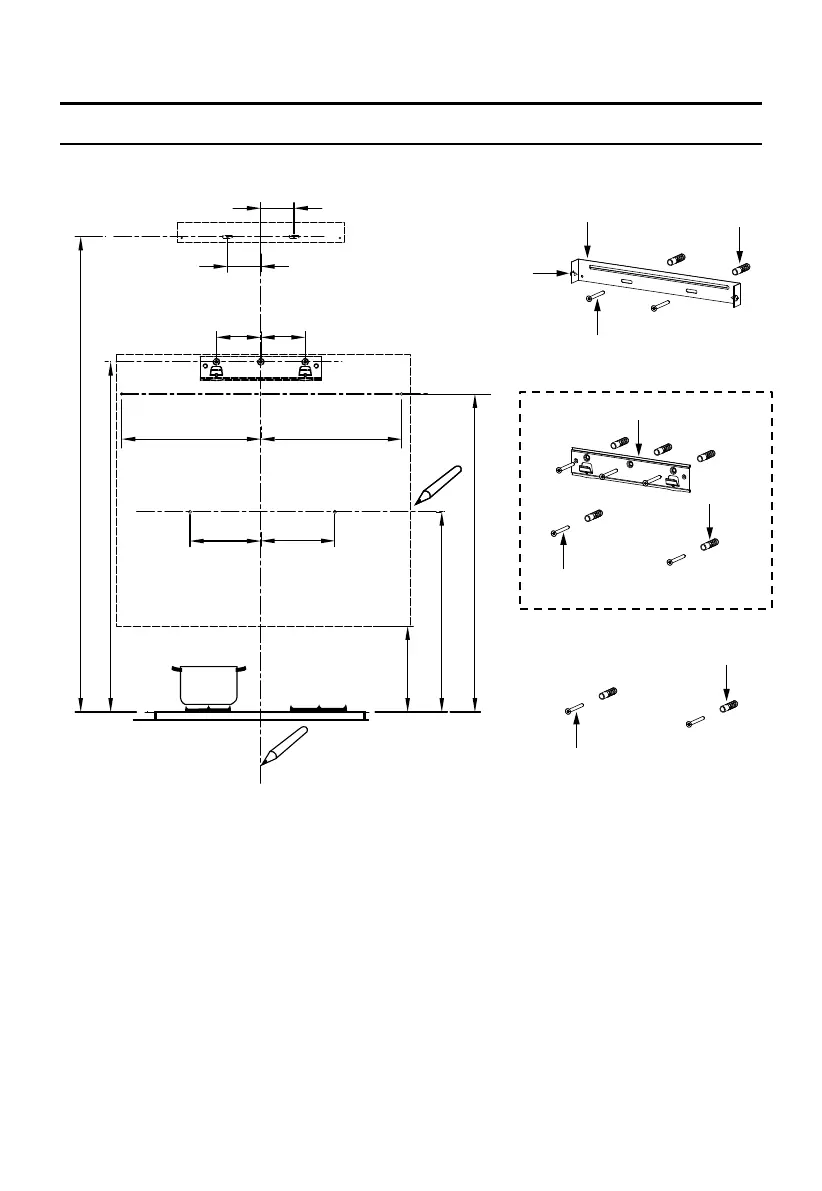

WALL DRILLING AND BRACKET FIXING
As a first step, proceed with the following drawings:
 A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the
hood is to be fitted.

A horizontal line A at 1270 – 1560 mm above the cooker top.

A horizontal line B at a minimum 887 (840 optional) mm above the cooker top.

A horizontal line C at a minimum 717 mm above the cooker top.
Mark Points:

Mark a point (1) on the horizontal line A, 40 mm to the right of the vertical reference line.
 Repeat this operation on the other side, checking that the two marks are leveled.

Mark a point (2) on the horizontal line B, 80 (135 optional) mm to the right of the vertical reference
line.

Repeat this operation on the other side and on the vertical reference line
, checking that the
three marks are leveled.
40
21
A
(1)
11
40
12
80
80
B
(2)
10
B
(OPTIONAL)
20
135
135
C
(3)
11
112.5
112.5
10
Oponal
11
10
1270 - 1560
887
530
717
840
5
