CONNECTIONS
DUCTED VERSION AIR EXHAUST SYSTEM
When installing the ducted version, connect the hood to the chimney
using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of
which is left to the installer.
To install a ɸ 120 mm air exhaust connection, insert the reducer
flange 3 on the hood body outlet.
Fix the pi
pe 4 in position using sufficient pipe clamps (not
supplied).
Remove possible charcoal filters.

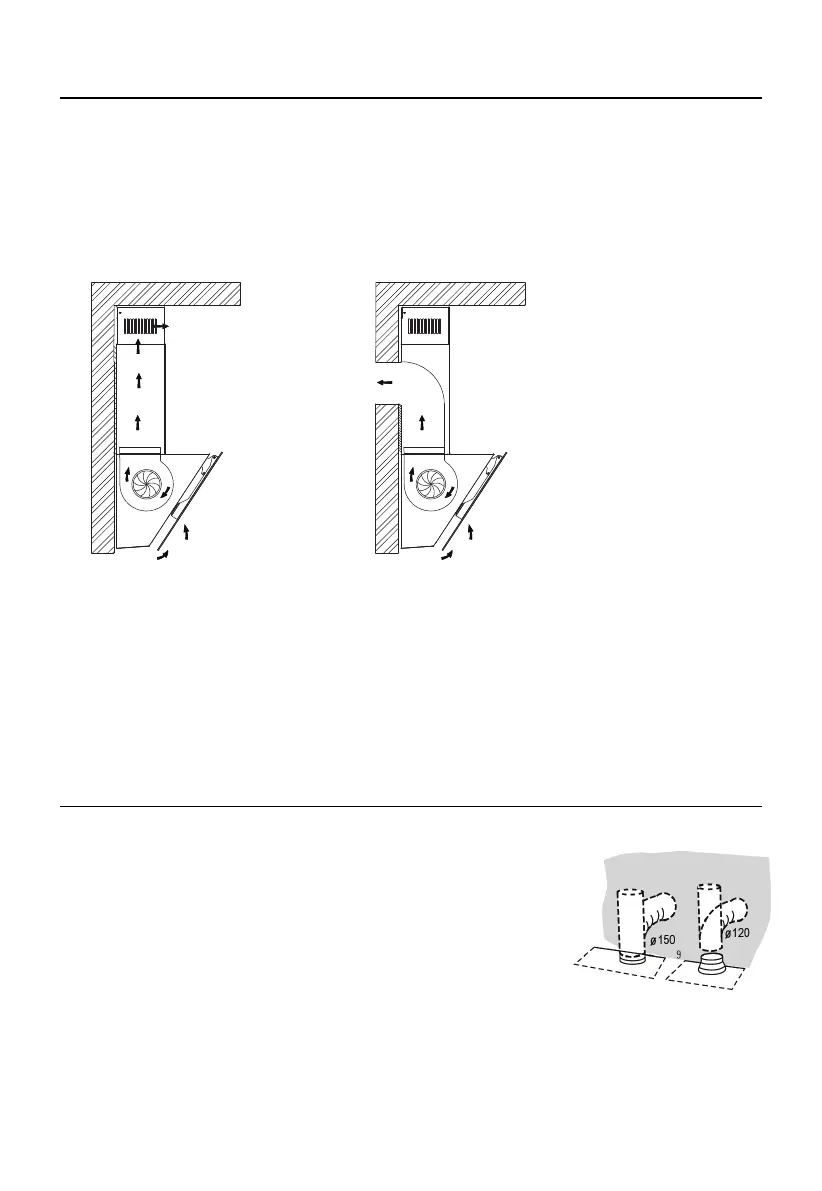

CHOOSE A VENTING MODE
Here two venting modes, extraction-air mode and recirculation mode, before installing，
select one mode.
Extraction-air mode, the air is discharged out of the house by a pipe.
Recirculation mode, the air is purified and discharged into the house through two rows of
holes on the adjustable decorative cover.
Note: For recirculation mode, no need pipe, install carbon filters.
when carbon filter attached, the suction power will be lowered.
Recirculation mode Extraction-air mode
