MCAC-UTSM-201406 Midea R410A Full DC Inverter Split Type Series Technical Manual
100
 Do not install at the place where cover with heavy oil, vapor or sulphureted gas. Otherwise,
this product would be deformed that would lead to system malfunction.

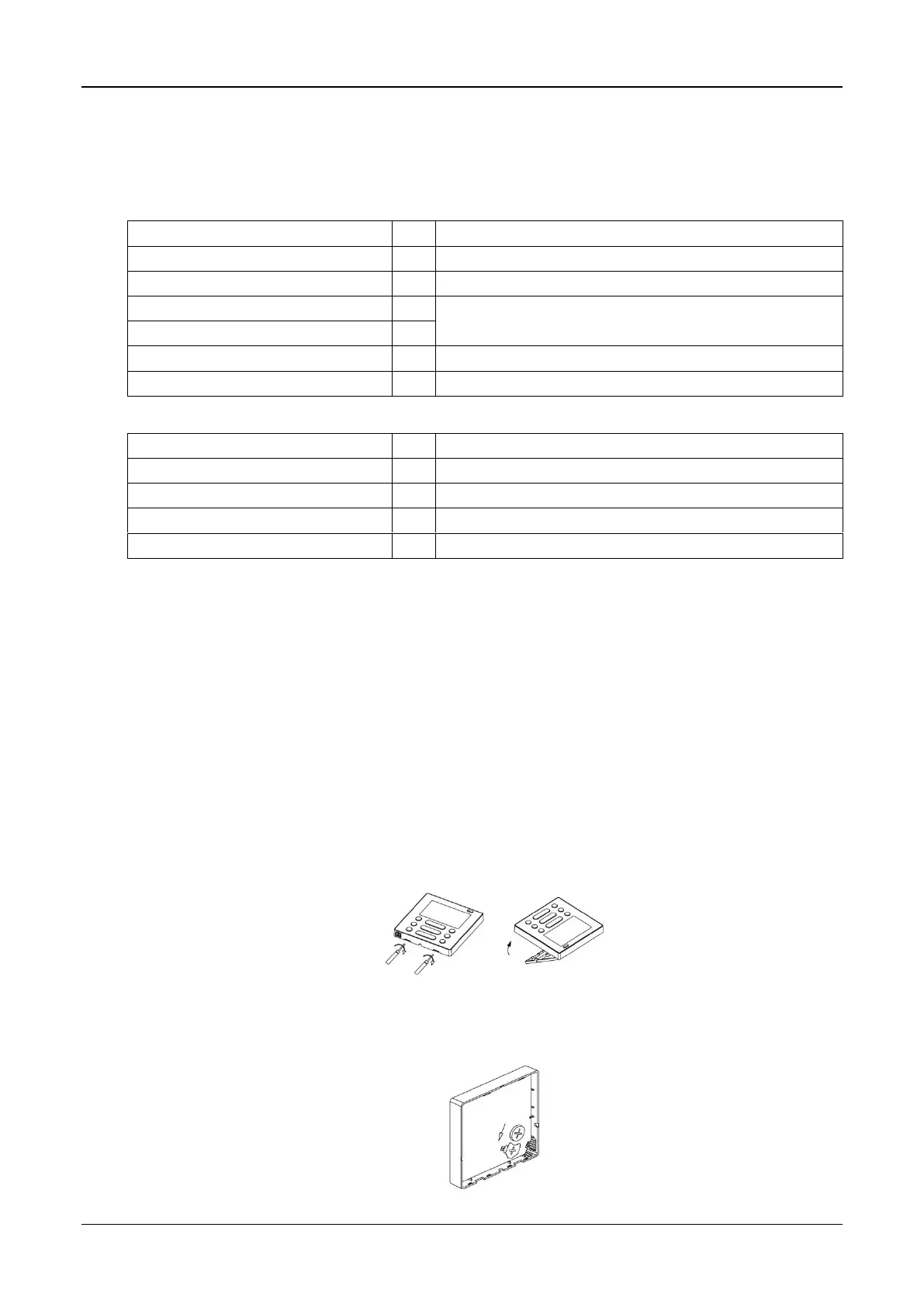

3.8.1 Installation accessory
Name
Qty.
Remark
Wired controller
1
\
Lithium battery
1
\
Cruciform slot screw M4×25
2
It is used when install the wired controller inside the electric
cabinet.
Plastic bolt
2
Installation and owner’s manual
1
\
The connective wires group
1
Choose it in indoor unit accessory (Customized).
Supplied assemblies on the site
Name
Qty.
Remarks
Electric cabinet
1
Universal electric cabinet’s specification. Pre-embed it into wall.
Wire configured tube (insulated sheath)
1
Pre-embed into wall, the length ≤ 15m,
Phillips screwdriver
1
For install Cruciform slot screw.
Slotted head screwdriver
For unscrew the bottom cover of wired controller.
The wired controller is working in low voltage loop circuit. Forbid to directly contact the cable
of 220V commercial electricity or 380V high voltage, and do not wire this kind of wire in the
said loop; wiring clearance between configured tubes should be at the range of 300~500 or
above. The shielded wire of the wired controller must be grounded reliable.
Upon finish the wired controller connection, do not employ tram egger to detect the
insulation. The connective cable of wired controller should not be longer than 20 meter.
3.8.2 Installation method
 Take out the wired controller from the package.
 Take off the cover of wired controller at the bottom with the screwdriver.
 Put the battery into the installation site and make sure the positive side of the battery is
in accordance with the positive side of installation site.
