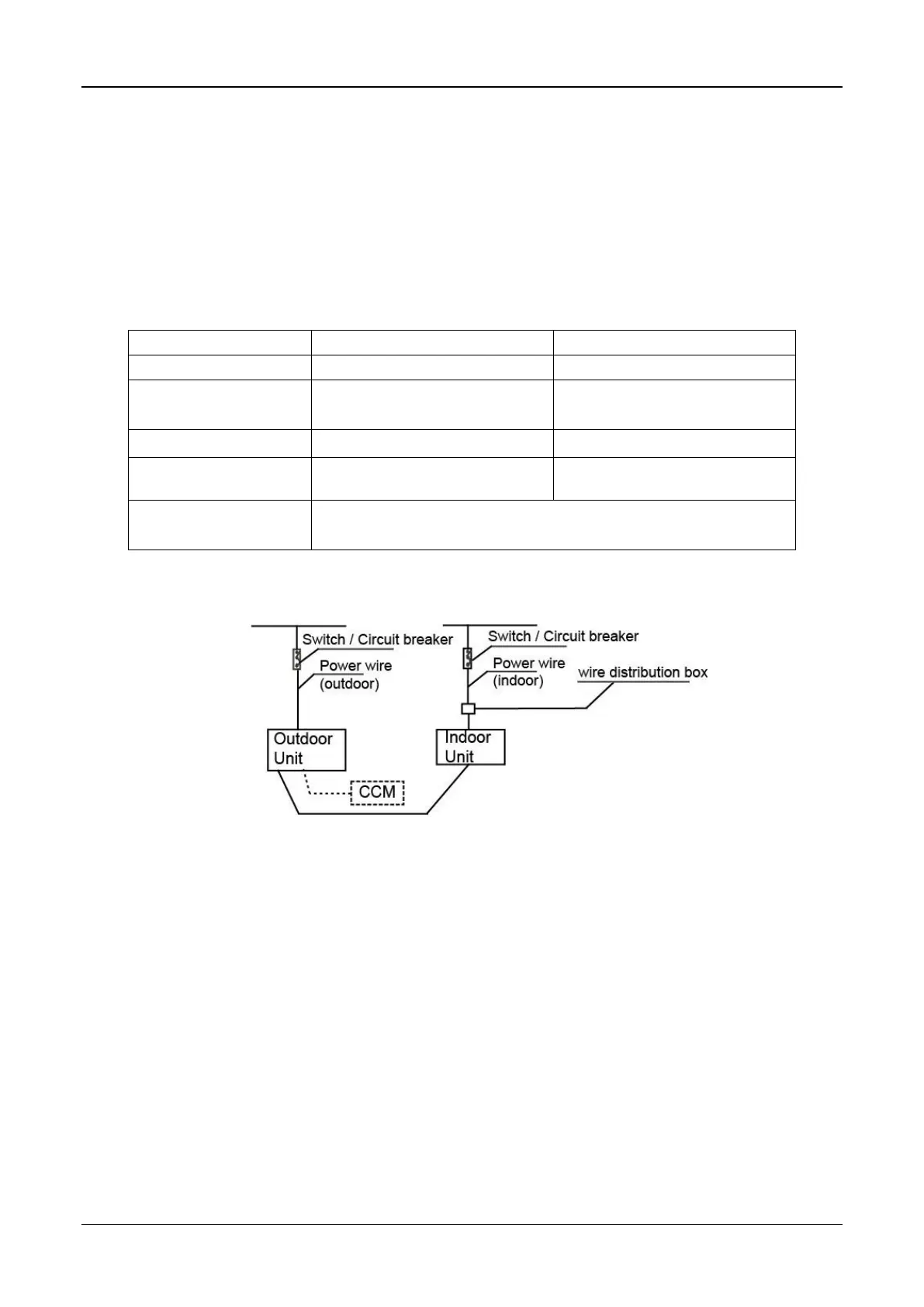

MCAC-UTSM-201406 Midea R410A Full DC Inverter Split Type Series Technical Manual
42
 An all-pole disconnection device which has at least 3mm separation distance in all pole and a
residual current device (RCD) with the rating of above 10mA shall be incorporated in the fixed
wiring according to the national rule.
 The appliance shall be installed in accordance with national wiring regulations.
6.2 Specifications of power supply
Model
MHC-96HWD1N1
MOVG-96HD1N1-R
Power
220-240V~, 1Ph, 50Hz
380~415V~, 3Ph, 50Hz
Switch capacity of the
main power supply / Fuse
16/16
40A/40A
Indoor unit power cable
3×2.5mm
2
(Includes grounded wire)
/
Outdoor unit power cable
\
5×6.0mm
2
(Includes grounded wire)
Connective wire of indoor
and outdoor unit
3×0.75mm
2
(Shielded wire)
6.3 Schematic diagram
