Midea R410A Full DC Inverter Split Type Series Technical Manual MCAC-UTSM-201406
43

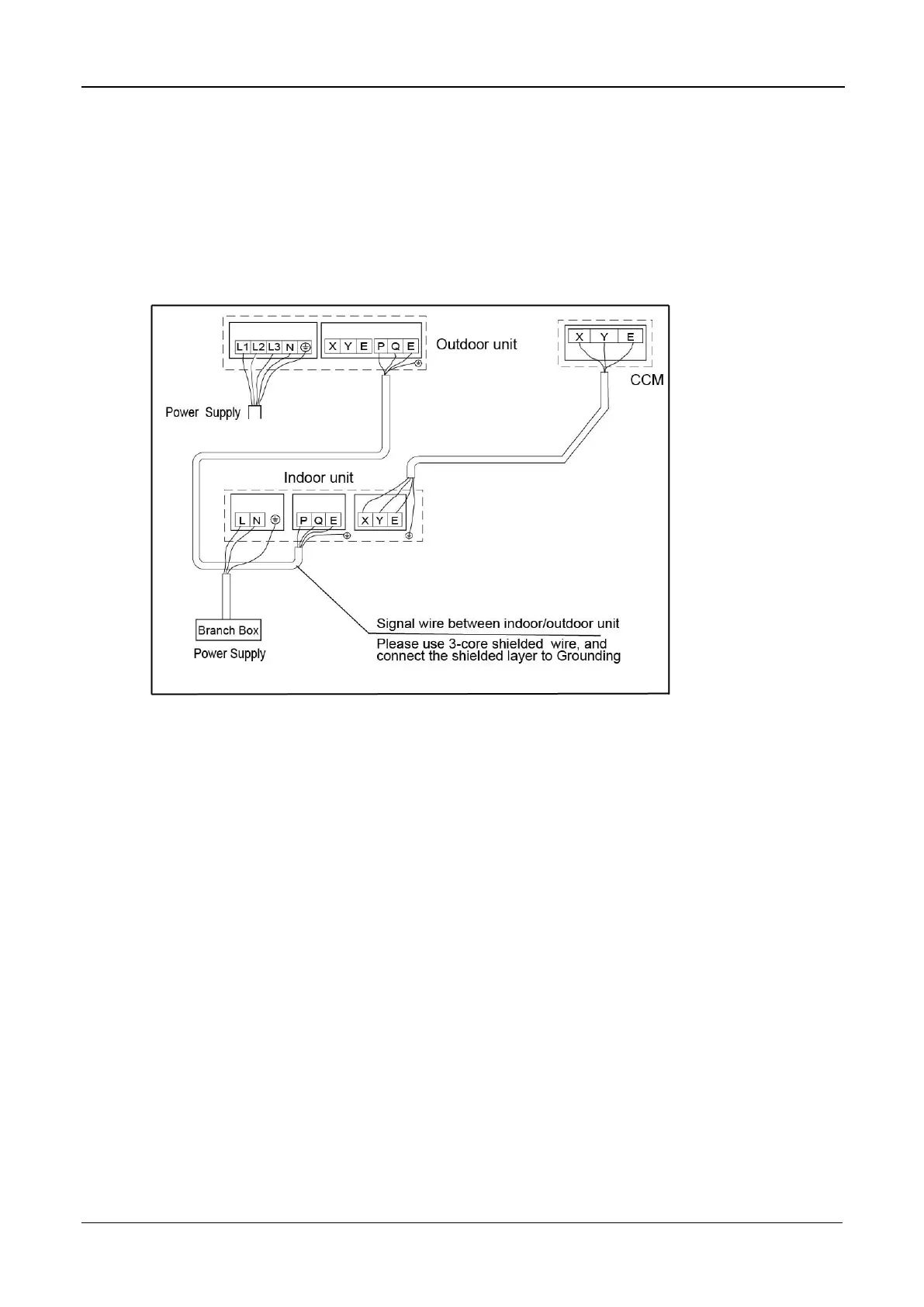

6.4 Electric wire diagram
When connect the wire, pay attention to the phase sequence of the power supply. If the phase
sequence is reversed, the compressor will not start. Meanwhile, the fault indicator of the outdoor
electric control board will light up. After shifting the phase sequence, power on the unit until the
fault indicator goes out and the compressor starts up normally.

Midea MHC-96HWD1N1 Specifications

General

Brand	Midea
Model	MHC-96HWD1N1
Category	Air Conditioner
Language	English
