1. TEMP Button: Push the TEMP button to decrease the indoor temperature setting or to adjust
the TIMER in a counter-clockwise direction.

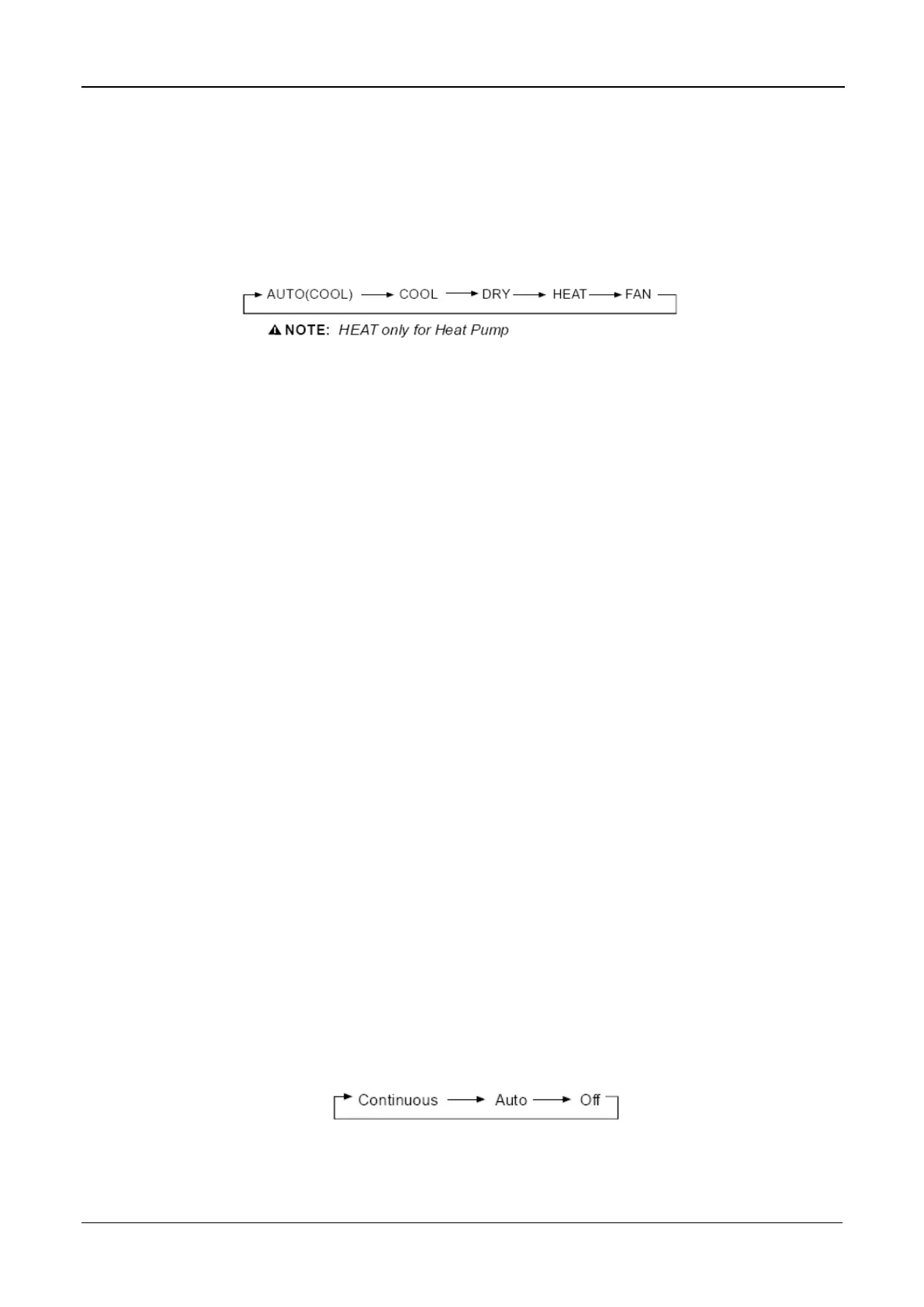

2. MODE Select Button: Each time you push the button, a mode is selected in a sequence that
goes from AUTO, COOL, DRY, HEAT and FAN as the following figure indicates:
3. SWING Button: Push this switch button to change the louver angle.
4. RESET Button: When the RESET button is pushed, all of the current settings are cancelled
and the control will return to the initial settings.
5. ECONOMIC RUNNING Button: Push this button to go into the Energy-Saving operation
mode.
6. LOCK Button: Push this button to lock in all the current settings. To release settings, push
again.
7. CANCEL Button: Push this button to cancel the TIMER settings.
8. TIMER Button: This button is used to preset the time ON (start to operate) and the time OFF
(turn off the operation).
9. ON/OFF Button: Push this button to start the unit operation. Push the button again to stop the
unit operation.
10. FAN SPEED Button: This button is used for setting Fan Speed in the sequence that goes
from AUTO, LOW, MED to HIGH, then back to AUTO.
11. TEMP Button: Push the button to increase the indoor temperature setting or to adjust the TIMER in
a clockwise direction.
12. VENT Button: Push this button to set the ventilating mode. The ventilating mode will operate
in the following sequence:
Notes: Ventilation function is available for the fresh air series.
