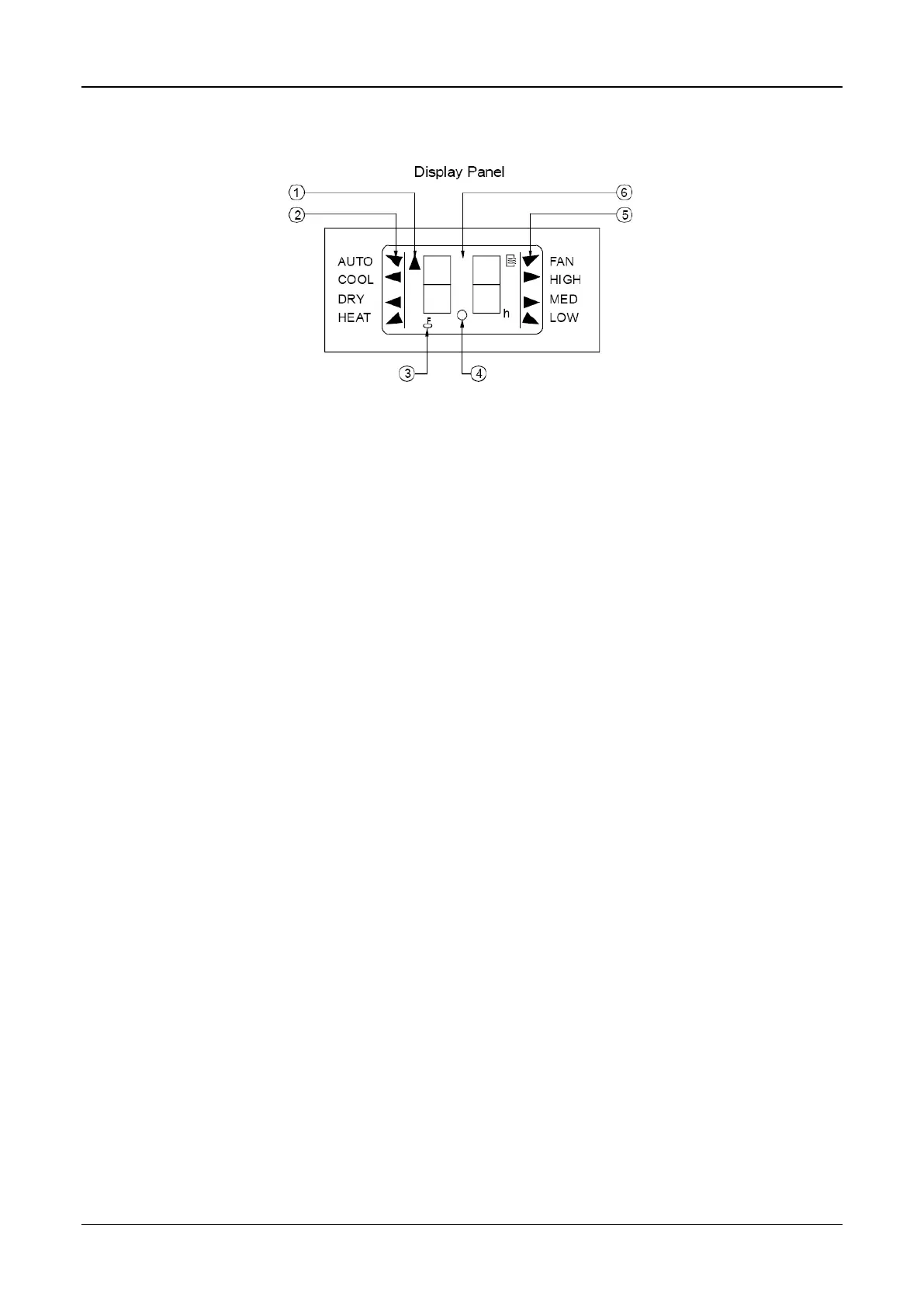

1.3 Names and functions of indicators on remote controller
①TRANSMISSION Indicator: This indicator lights when remote controller transmits signals to
indoor unit.
② MODE Display: Show the current operation modes-- AUTO, COOL, DRY and HEAT. HEAT
is only available for heat pump model.
③ LOCK display: To displayed by pushing the LOCK button. Push the LOCK button again to
clear display.
④ TIMER Display: This display area shows the settings of TIMER.
That is, if only the starting time of operation is set, it will display the TIMER ON. If only the turning
off time of operation is set, it will display the TIMER OFF. If both operations are set, it will show
TIMER ON and TIMER OFF which indicates you have chosen to set both the starting time and
off time.
⑤ FAN Display: When push the FAN button, this indicator lights.
⑥ Digital Display Area: This area will show the temperature and, if in the TIMER mode, will
show the ON and OFF settings of the TIMER.
Notes:
All items are shown in the previous picture for the purpose of clear presentation but during the actual
operation only the relative functional items are shown on the display panel.
1.4 Operating the remote controller
1) Install / Replace Batteries
The Remote Controller uses two alkaline dry batteries (R03/Ir03X2).
