Midea MHC - V18W/D2RN8 Engineering Data

M thermal Mono
202005 13
Part 1 - General Information
5.5 AHS provides heat for space heating and DHW
Space heating application by either the unit or by AHS connected in the system. Bivalent operation is possible for both
space heating operation and domestic water heating operation. If AHS is also providing heat for domestic hot water, AHS
can be integrated in the piping work. In this condition, the unit can sent ON/OFF signal to AHS in heating mode, but AHS
control itself in DHW mode.

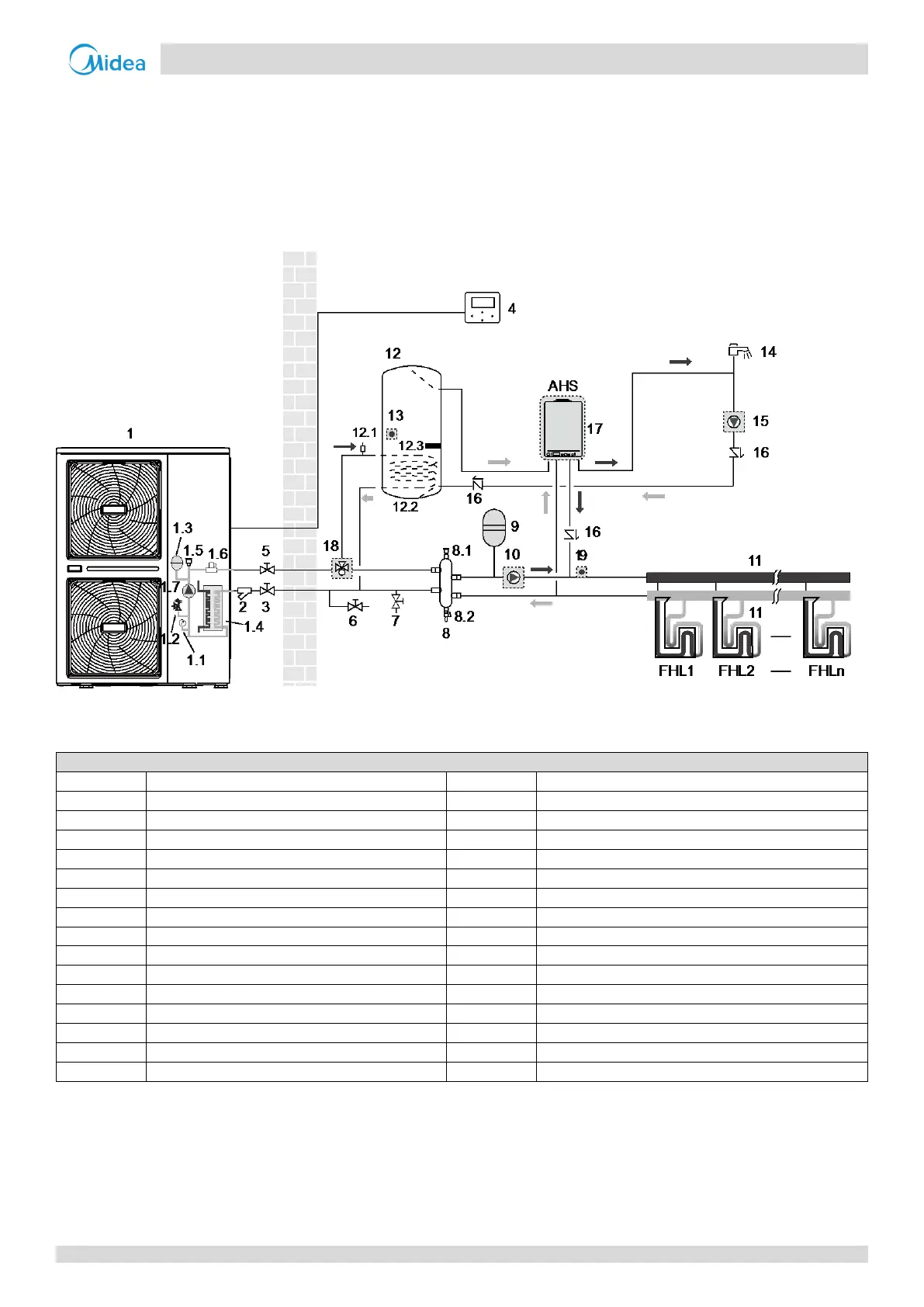

Figure 1-5.5: AHS provides heat for space heating and DHW
Table 1-5.5: AHS provides heat for space heating and DHW
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump(field supplied)
5
Stop valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
Additional heat source(field supplied)
7
Fill valve (field supplied)
18
SV1: 3-way valve (field supplied)
8
Balance tank (field supplied)
19
T1: Outlet water temperature sensor(field supplied)
8.1
Air purge valve
FHL 1...n
Floor heating loop (field supplied)
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
