M thermal Mono
14 202005
Midea M thermal Mono Engineering Data Book
5.6 AHS provides heat for DHW

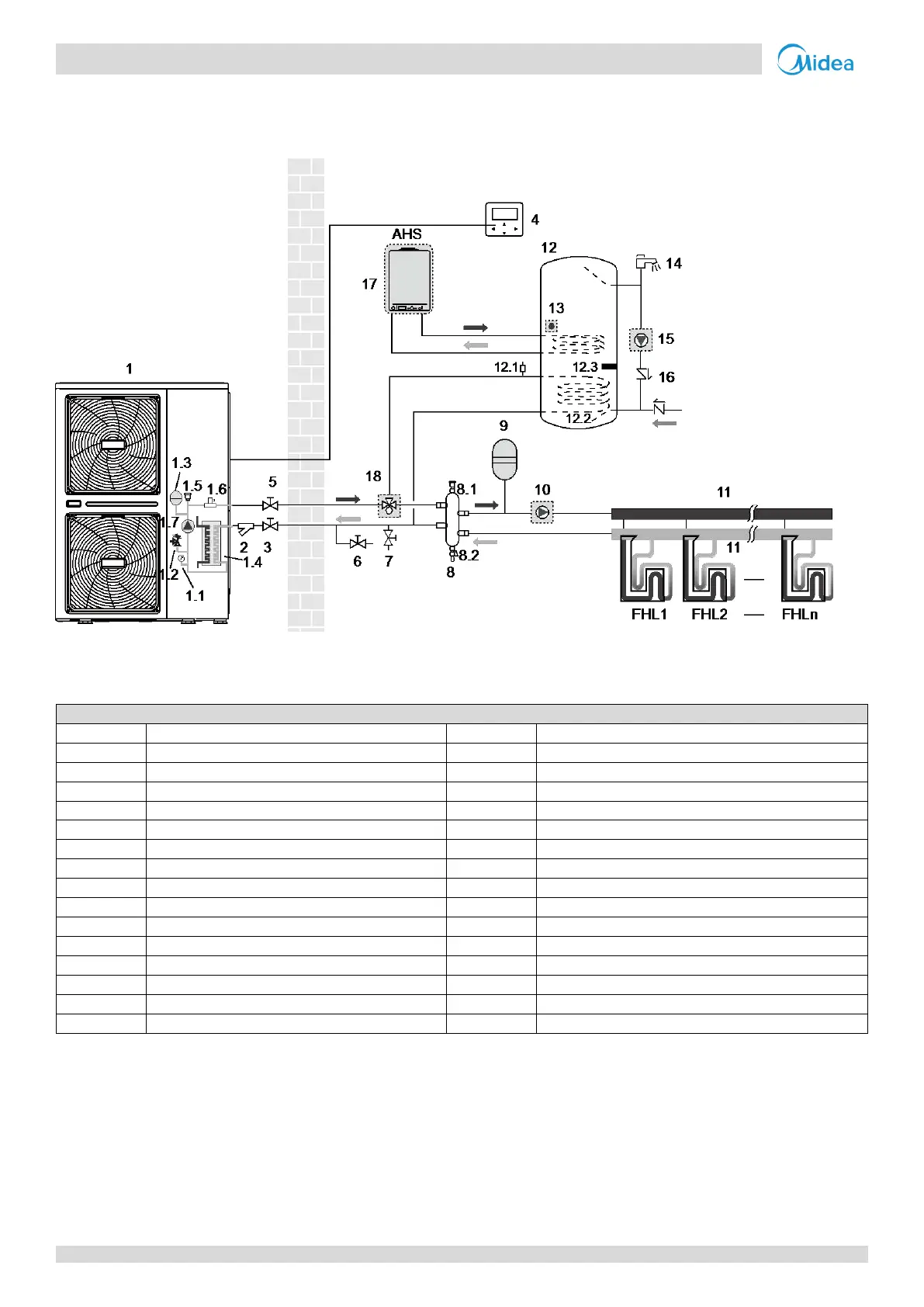

Figure 1-5.6: AHS provides heat for DHW
Table 1-5.6: AHS provides heat for DHW
Legend
1
Outdoor unit
8.2
Drain valve
1.1
Manometer
9
Expansion vessel (field supplied)
1.2
Pressure relief valve
10
P_o: Outside circulation pump (field supplied)
1.3
Expansion vessel
11
Collector / Distributor (field supplied)
1.4
Plate heat exchanger
12
Domestic hot water tank (field supplied)
1.5
Air purge valve
12.1
Air purge valve
1.6
Flow switch
12.2
Heat exchanger coil
1.7
P_i: Circulation pump inside the unit
12.3
Booster heater
2
Y-shape filter
13
T5: Temperature sensor
3
Stop valve (field supplied)
14
Hot water tap(field supplied)
4
Wired controller
15
P_d: Cycle hot water pump(field supplied)
5
Stop valve (field supplied)
16
One way valve(field supplied)
6
Drain valve (field supplied)
17
Additional heat source(field supplied)
7
Fill valve (field supplied)
18
SV1: 3-way valve (field supplied)
8
Balance tank (field supplied)
FHL 1...n
Floor heating loop (field supplied)
8.1
Air purge valve
Notes:
1. The example is just for application illustration; please confirm the exact installation method according to the installation manual.
