Midea M thermal Mono Engineering Data Book

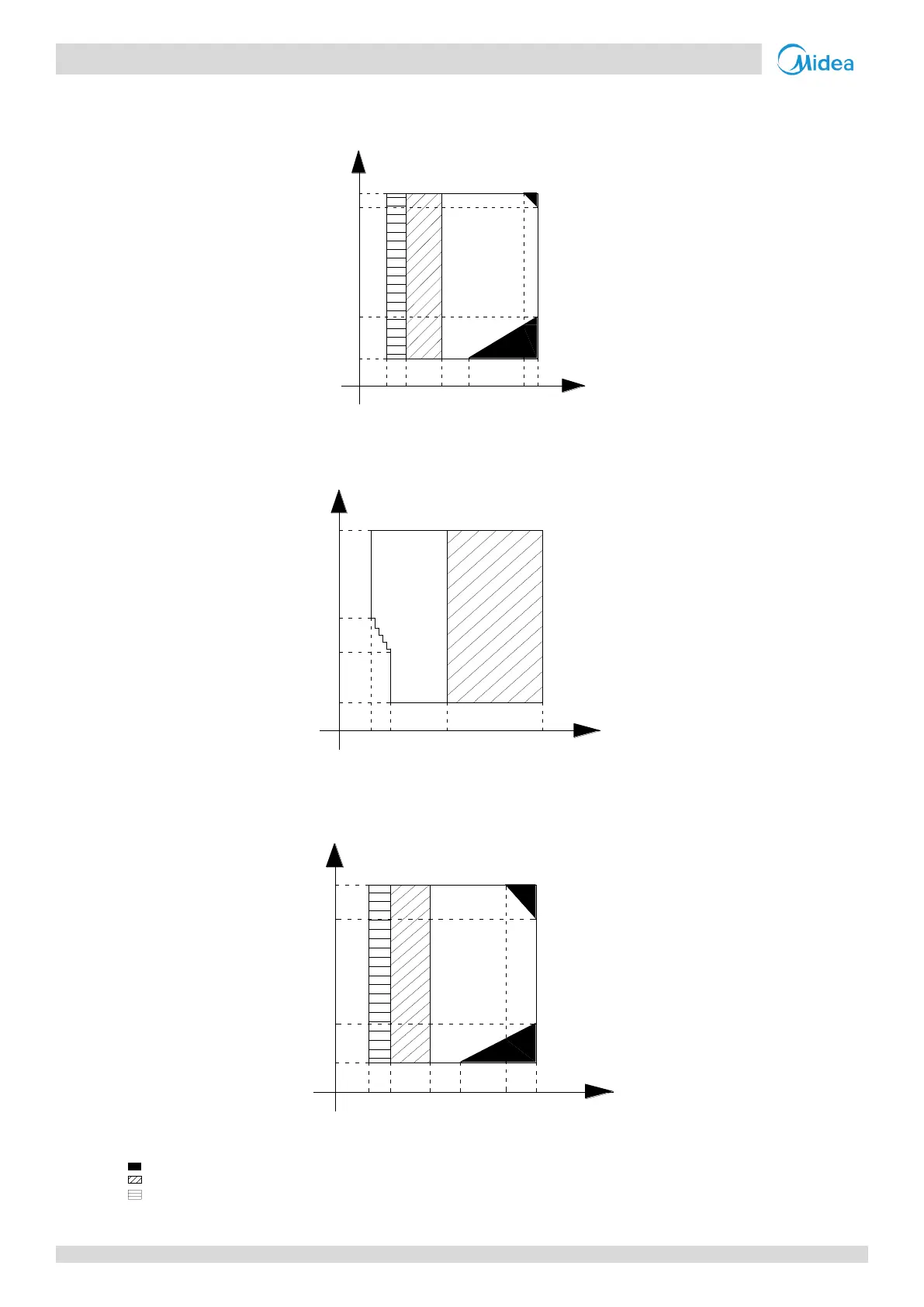

6 Operating Limits
Figure 2-6.1: Heating operating limits
5 12 25 35 55 60
-25
-10
30
35
Outdoor temperature(℃)
Water flow temperature (℃)
Figure 2-6.2: Cooling operating limits
5 10 25 50
46
20
-5
10
Outdoor temperature(℃)
Water flow temperature (℃)
Figure 2-6.3: Domestic hot water operating limits
5 12 25 35 50 60
-25
30
43
-10
Outdoor temperature(℃)
Water flow temperature (℃)
Notes:
Shaded areas indicate If IBH/AHS setting is valid, only IBH/AHS turns on. If IBH/AHS setting is invalid, only heat pump turns on.
Shaded areas indicate water flow temperature drop or rise interval
Shaded areas indicates heat pump runs If the IBH or AHS setting is valid; no heat pump operation if IBH or AHS setting is invalid
